Air Conditioning Evaporator Temperature Sensor Replacement (With RPO C67 LHD)

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

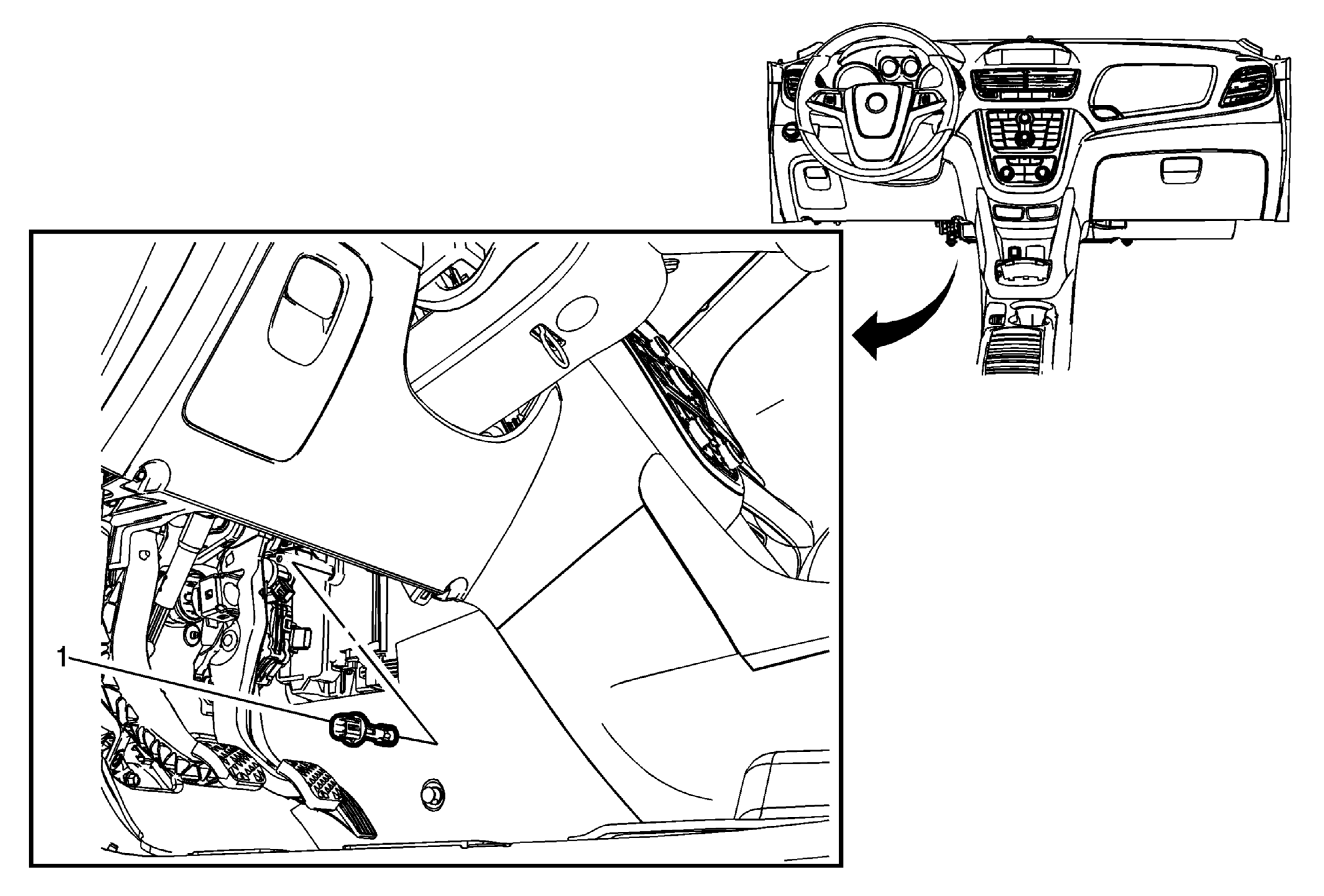

Fig 1: Air Conditioning Evaporator Temperature Sensor (With RPO C67 LHD)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the left side floor front air outlet duct. Refer to Floor Front Air Outlet Duct Replacement - Left Side (Encore) Floor Front Air Outlet Duct Replacement - Left Side (Trax) .
1	Air Conditioning Evaporative Temperature Sensor Procedures Disconnect the air conditioning evaporative temperature sensor connector. To remove the air conditioning evaporative temperature sensor, turn the air conditioning evaporative temperature sensor counter clock wise a quarter of a turn.

Callout

Component Name

Preliminary Procedure
Remove the left side floor front air outlet duct. Refer to Floor Front Air Outlet Duct Replacement - Left Side (Encore) Floor Front Air Outlet Duct Replacement - Left Side (Trax) .

Air Conditioning Evaporative Temperature Sensor

Procedures

Disconnect the air conditioning evaporative temperature sensor connector.
To remove the air conditioning evaporative temperature sensor, turn the air conditioning evaporative temperature sensor counter clock wise a quarter of a turn.
