Air Conditioning Evaporator Temperature Sensor Replacement (5 Sensor RPO CJ2 LHD)

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

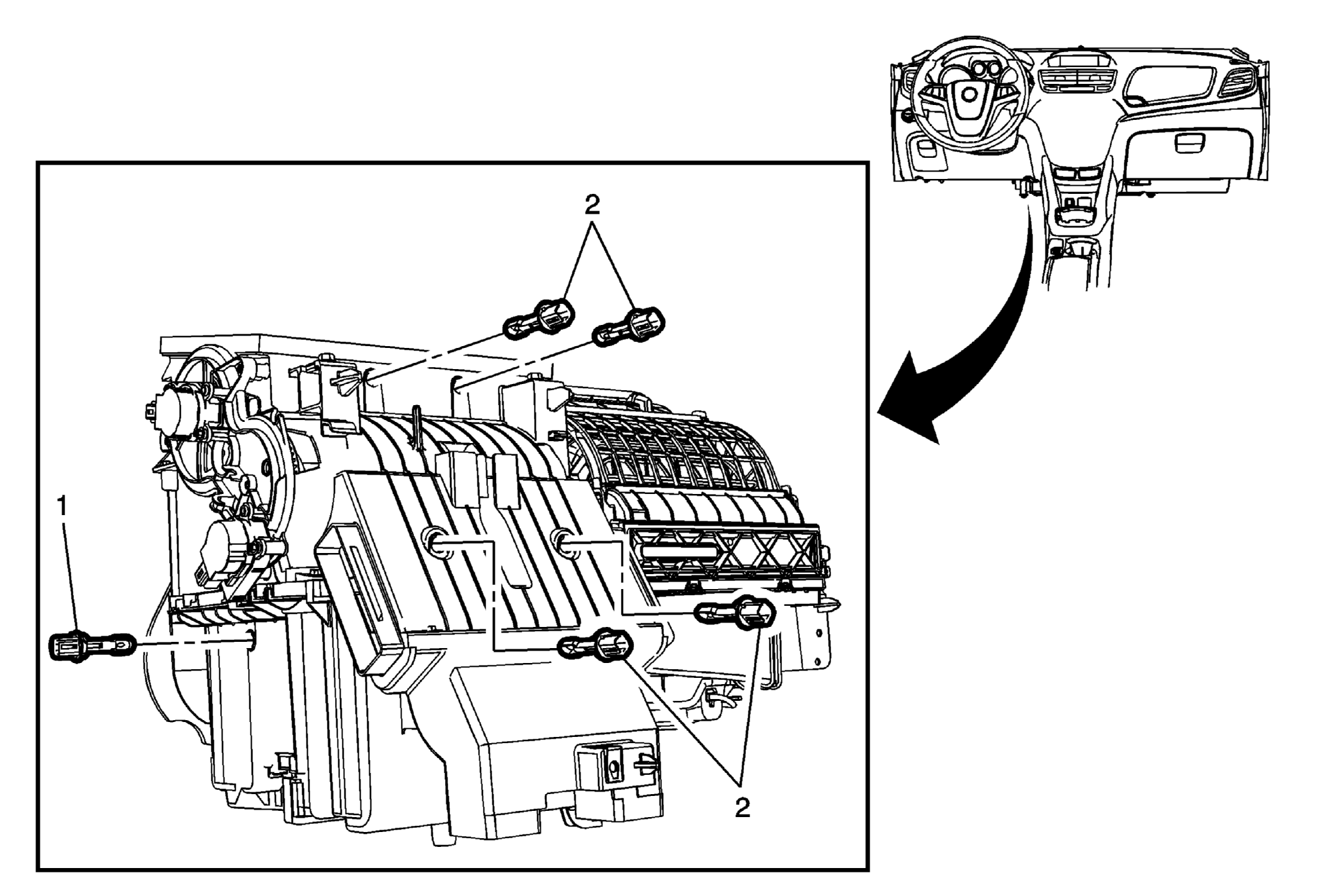

Fig 1: Air Conditioning Evaporator Temperature Sensor (5 Sensor RPO CJ2 LHD)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Air Conditioning Evaporative Temperature Sensor Procedure Remove the left side floor front air outlet duct. Refer to Floor Front Air Outlet Duct Replacement - Left Side (Encore) Floor Front Air Outlet Duct Replacement - Left Side (Trax) . Disconnect the air conditioning evaporative temperature sensor connector. To remove the air conditioning evaporative temperature sensor, turn the air conditioning evaporative temperature sensor counter clock wise a quarter of a turn.
2	Air Conditioning Evaporative Temperature Sensor (Qty: 4) Procedure Remove the radio assembly. Refer to Radio Replacement (Encore)Radio Replacement (Trax) Disconnect the appropriate air conditioning evaporative temperature sensor connector. To remove the appropriate air conditioning evaporative temperature sensor, turn the air conditioning evaporative temperature sensor counter clock wise a quarter of a turn.

Callout

Component Name

Air Conditioning Evaporative Temperature Sensor

Procedure

Remove the left side floor front air outlet duct.
Refer to Floor Front Air Outlet Duct Replacement - Left Side (Encore) Floor Front Air Outlet Duct Replacement - Left Side (Trax) .
Disconnect the air conditioning evaporative temperature sensor connector.
To remove the air conditioning evaporative temperature sensor, turn the air conditioning evaporative temperature sensor counter clock wise a quarter of a turn.

Air Conditioning Evaporative Temperature Sensor (Qty: 4)

Procedure

Remove the radio assembly.
Refer to Radio Replacement (Encore)Radio Replacement (Trax)
Disconnect the appropriate air conditioning evaporative temperature sensor connector.
To remove the appropriate air conditioning evaporative temperature sensor, turn the air conditioning evaporative temperature sensor counter clock wise a quarter of a turn.
