Installation Procedure

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: Transfer Case Vent Hose
    GM2759726Courtesy of GENERAL MOTORS COMPANY
  1. Connect the vent hose (1) to the transfer case (2).
  2. Lower the vehicle.

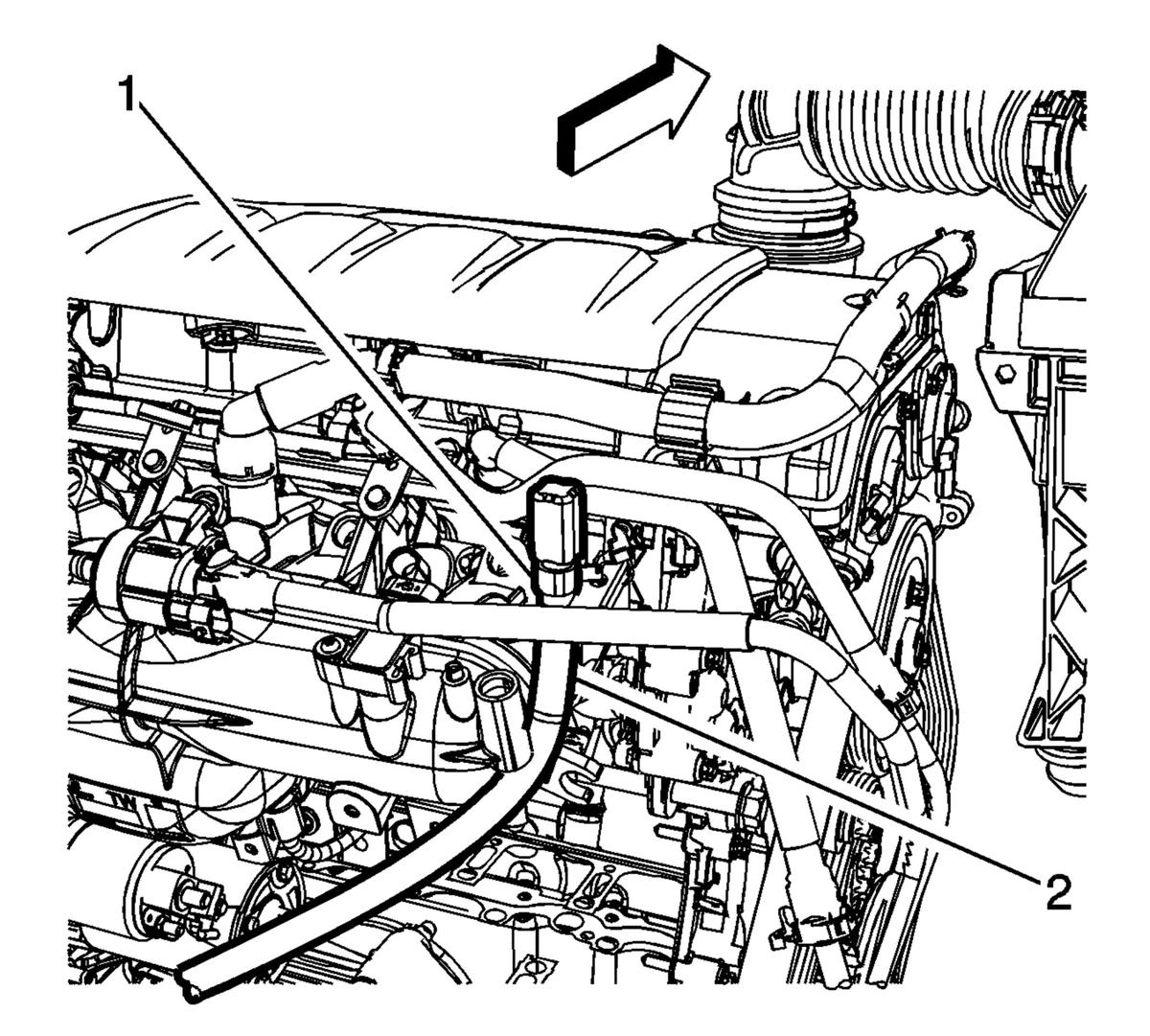

    3. Fig 2: Vent Hose And Retaining Clip
    GM2769451Courtesy of GENERAL MOTORS COMPANY
  3. Clip the upper portion of the vent hose (2) to the retaining clip (1).
