Installation Procedure

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

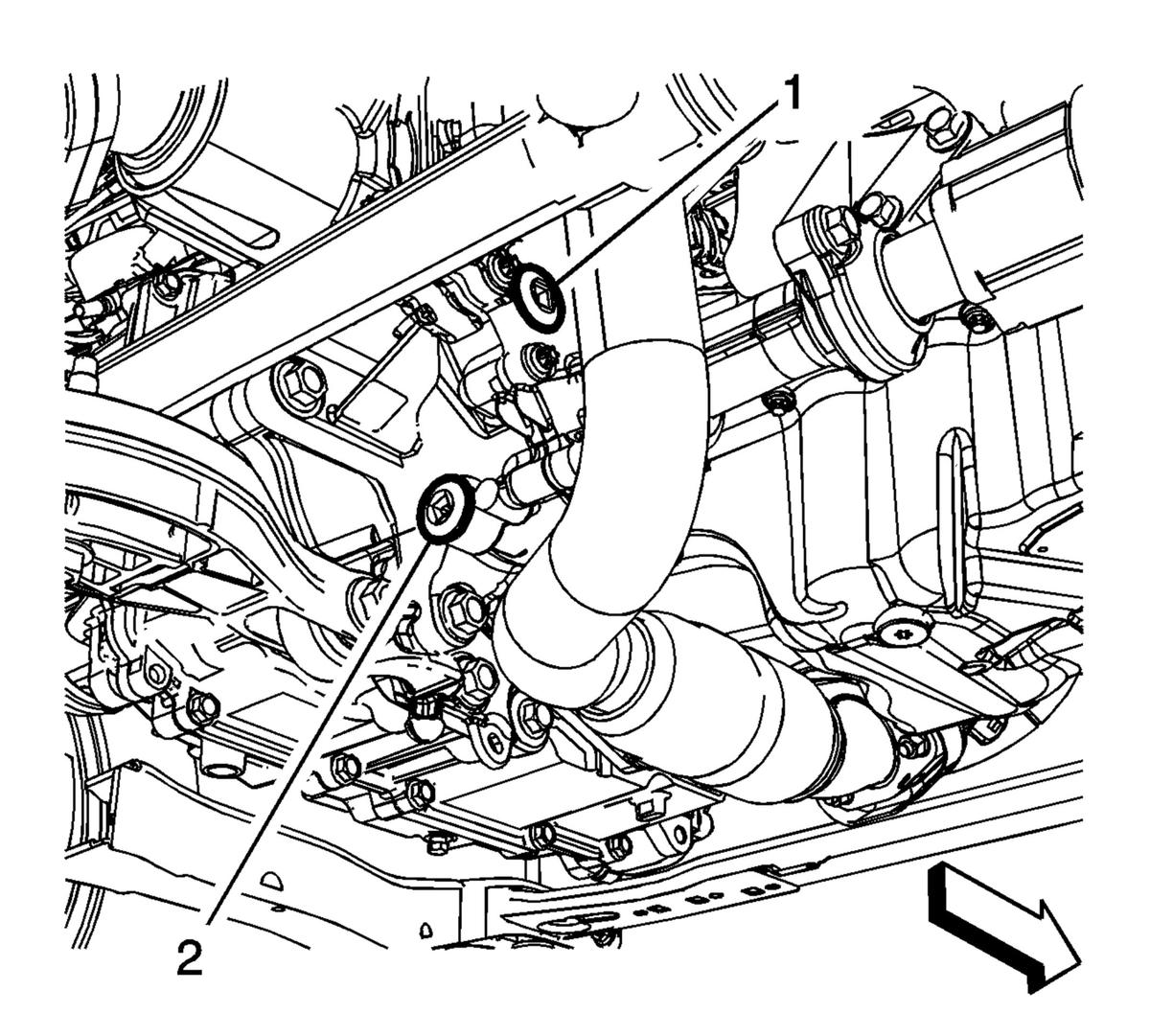

    Fig 1: Transfer Case Drain And Fill Plugs
    GM2767841Courtesy of GENERAL MOTORS COMPANY
  1. Install the new drain plug.
  2. Tighten the drain plug to 40 N.m (30 lb ft).
  3. Fill the transfer case to the bottom of the fill plug hole.
  4. Install a NEW fill plug and tighten to 40 N.m (30 lb ft).
  5. Lower the vehicle.
