Transfer Case Rear Extension Housing Removal

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

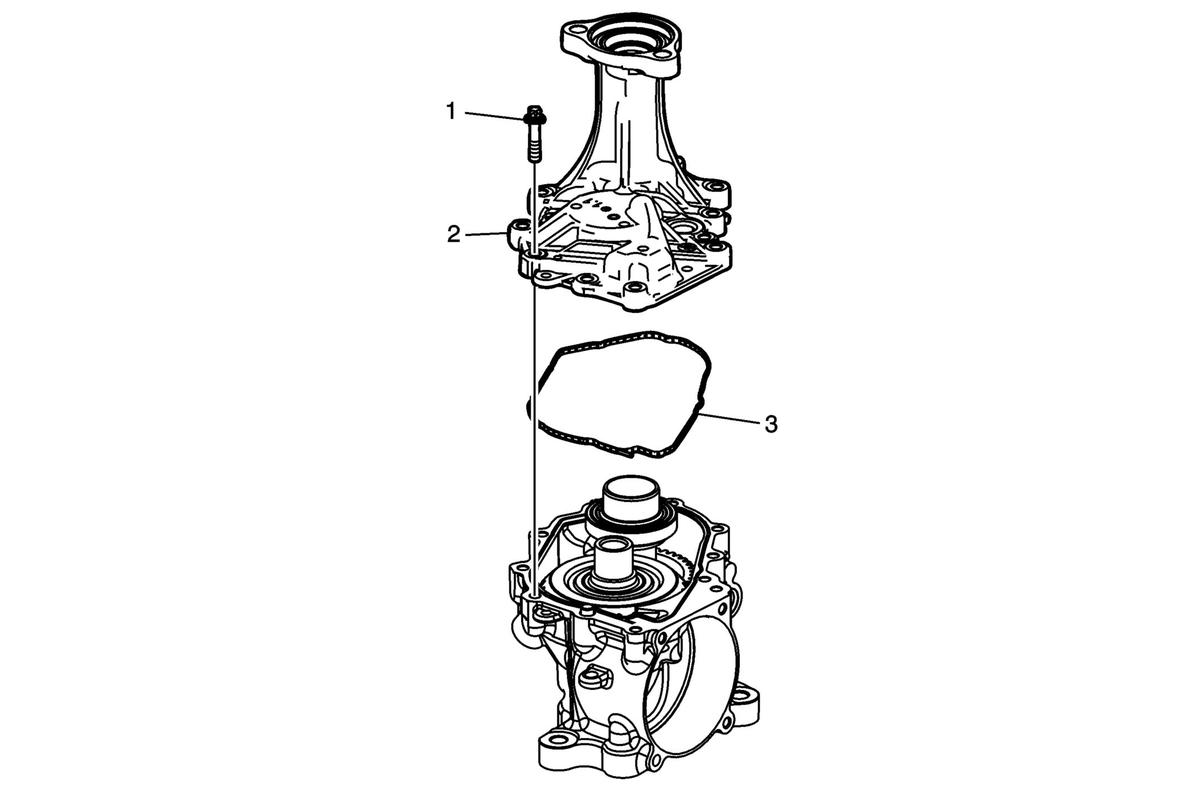

Fig 1: Transfer Case Rear Extension Housing
GM2745622Courtesy of GENERAL MOTORS COMPANY
Transfer Case Rear Extension Housing Removal

Callout Component Name
1 Transfer Case Rear Extension Housing Bolt (Qty: 11)
NOTE:

Do not reuse the case half bolts. Install NEW rear extension housing bolts during assembly.
2 Transfer Case Rear Extension Housing Assembly
3 Transfer Case Rear Extension Housing O-Ring Seal
