Transfer Case Propeller Shaft Flange Removal

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

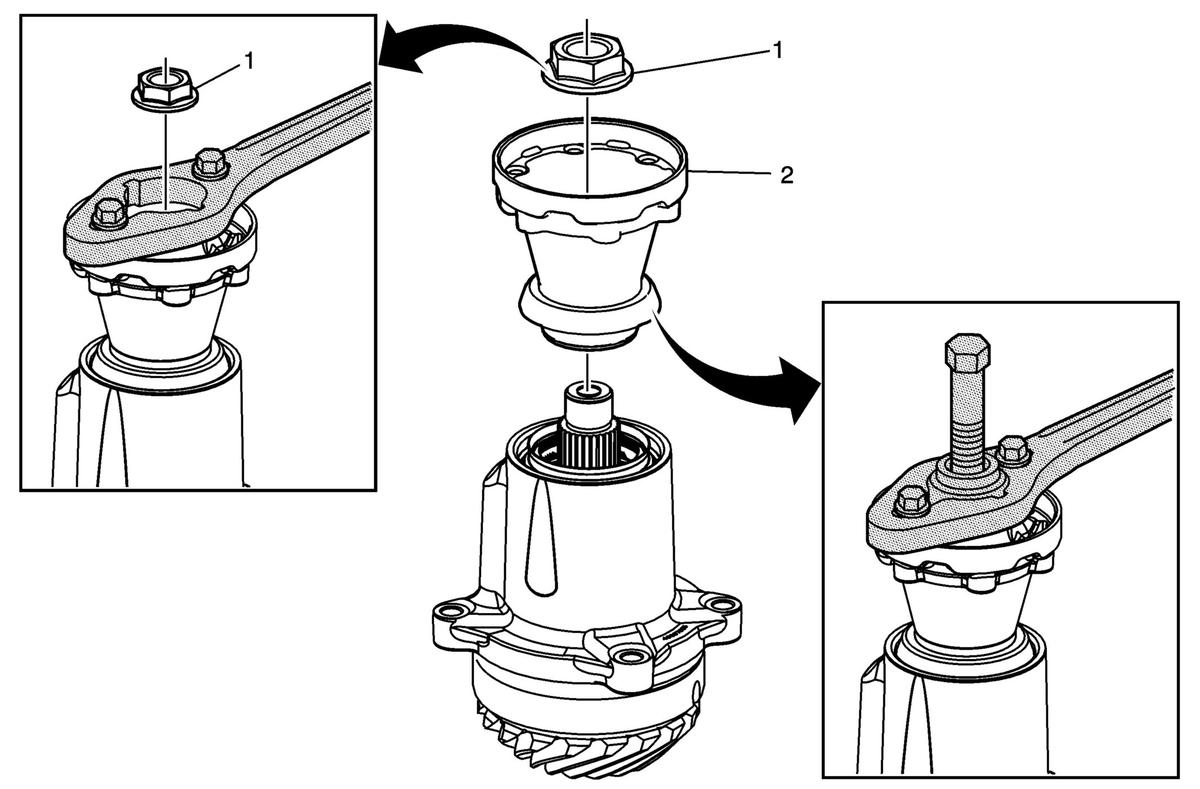

Fig 1: Transfer Case Propeller Shaft Flange And Special Tools
GM2745640Courtesy of GENERAL MOTORS COMPANY
Transfer Case Propeller Shaft Flange Removal

Callout Component Name
1 Transfer Case Propeller Shaft Flange Nut

Special Tools

  • J 08614-A  Pinion Flange Holder and Remover
  • J 44873-2  Shoulder Bolts

For equivalent regional tools, refer to Special Tools .
2 Transfer Case Propeller Shaft Flange

Special Tools

  • J 08614-A  Pinion Flange Holder and Remover
  • J 44873-2  Shoulder Bolts

For equivalent regional tools, refer to Special Tools .
