Transfer Case Input Shaft Bearing Retainer Rear Seal and Front Wheel Drive Intermediate Shaft Seal Removal

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

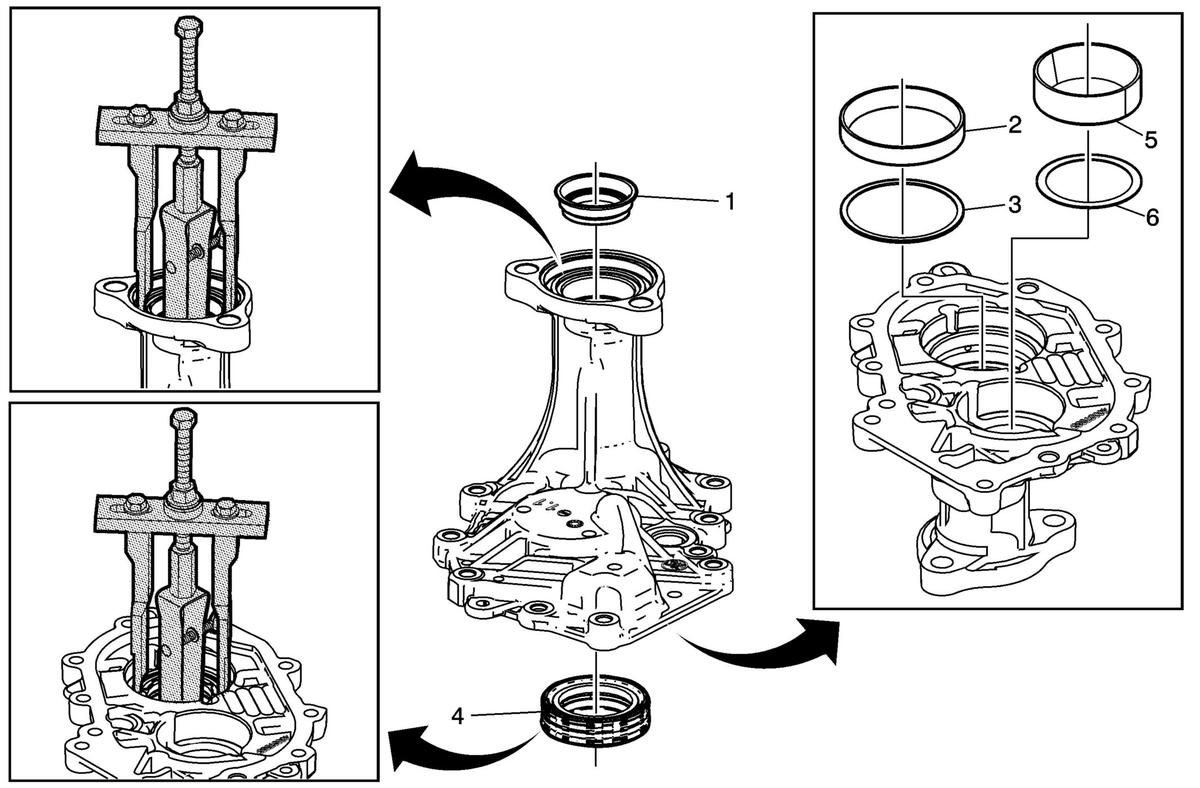

Fig 1: Transfer Case Input Shaft Bearing Retainer Rear Seal And Front Wheel Drive Intermediate Shaft Seal

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Front Wheel Drive Intermediate Shaft Seal Special Tools J 29369 Output Shaft Bearing Remover J 45124 Removal Bridge For equivalent regional tools, refer to Special Tools .
2	Input Shaft Rear Bearing Race NOTE: The bearing races are not an interference fit to the housing bore.
3	Input Shaft Rear Shim NOTE: Note the position of the shim for assembly.
4	Transfer Case Input Shaft Bearing Retainer Rear Seal Special Tools J 26941 Bushing and Bearing Remover J 45124 Removal Bridge For equivalent regional tools, refer to Special Tools .
5	Idler Shaft Rear Bearing Race NOTE: The bearing races are not an interference fit to the housing bore.
6	Idler Shaft Rear Shim NOTE: Note the position of the shim for assembly.
