Transfer Case Input Shaft Bearing Retainer Front Seal and Rear Extension Locating Pin Removal

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

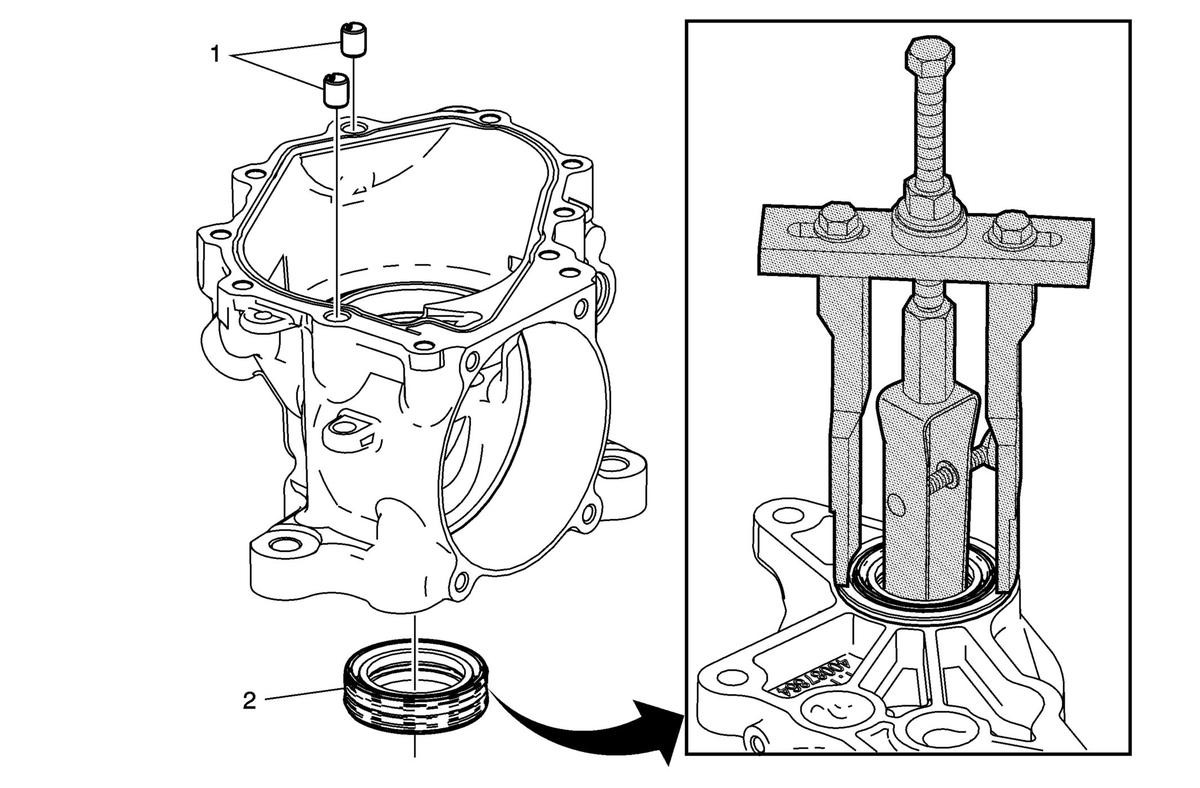

Fig 1: Input Shaft Bearing Retainer Front Seal, Rear Extension Locating Pin And Remover

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Transfer Case Rear Extension Housing Locating Pin, as required (Qty: 2)
2	Transfer Case Input Shaft Bearing Retainer Front Seal Special Tools J 26941 Bushing and Bearing Remover J 45124 Removal Bridge For equivalent regional tools, refer to Special Tools .

Callout

Component Name

Transfer Case Rear Extension Housing Locating Pin, as required (Qty: 2)

Transfer Case Input Shaft Bearing Retainer Front Seal

Special Tools

J 26941 Bushing and Bearing Remover
J 45124 Removal Bridge

For equivalent regional tools, refer to Special Tools .
