Transfer Case Input Shaft Bearing Race and Idler Shaft Bearing Race Removal

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

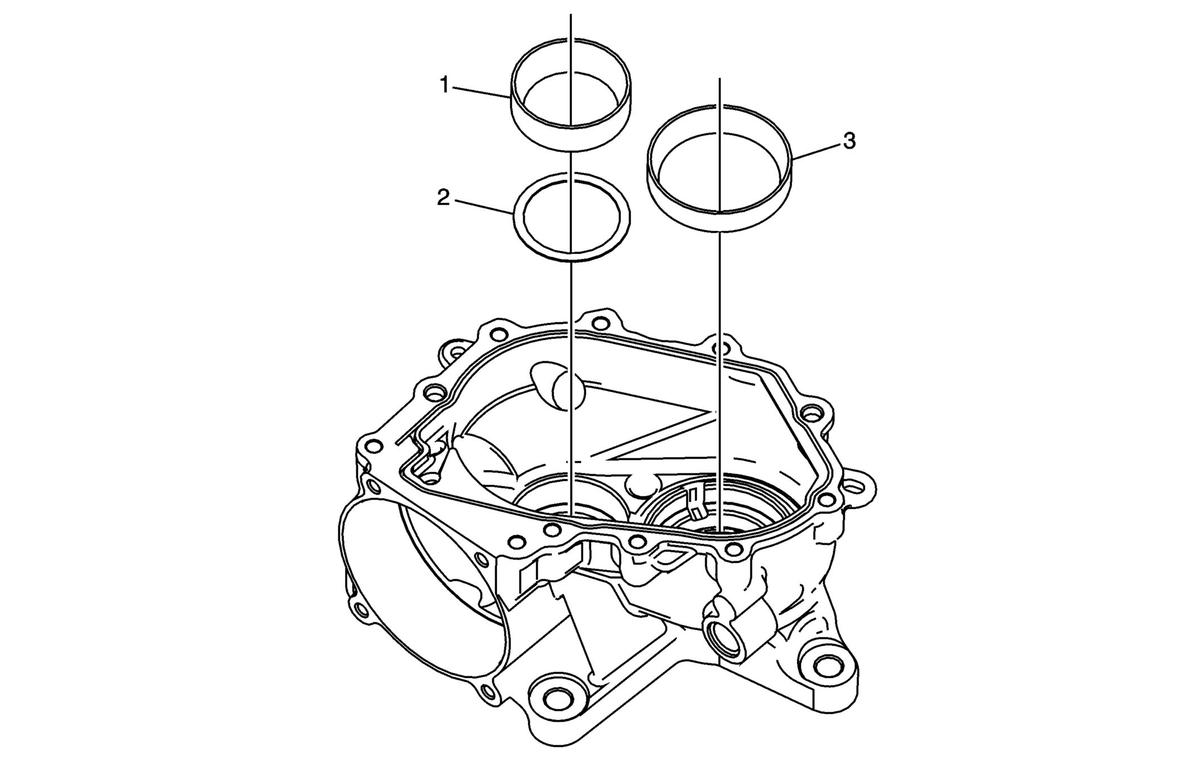

Fig 1: Transfer Case Input Shaft Bearing Race And Idler Shaft Bearing Race

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Idler Shaft Bearing Race NOTE: The bearing race is not an interference fit to the housing bore.
2	Idler Shaft Bearing Race Shim NOTE: Note the position of the shim for assembly.
3	Input shaft bearing race NOTE: The bearing race is not an interference fit to the housing bore.
