Transfer Case Holding Fixture Installation

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

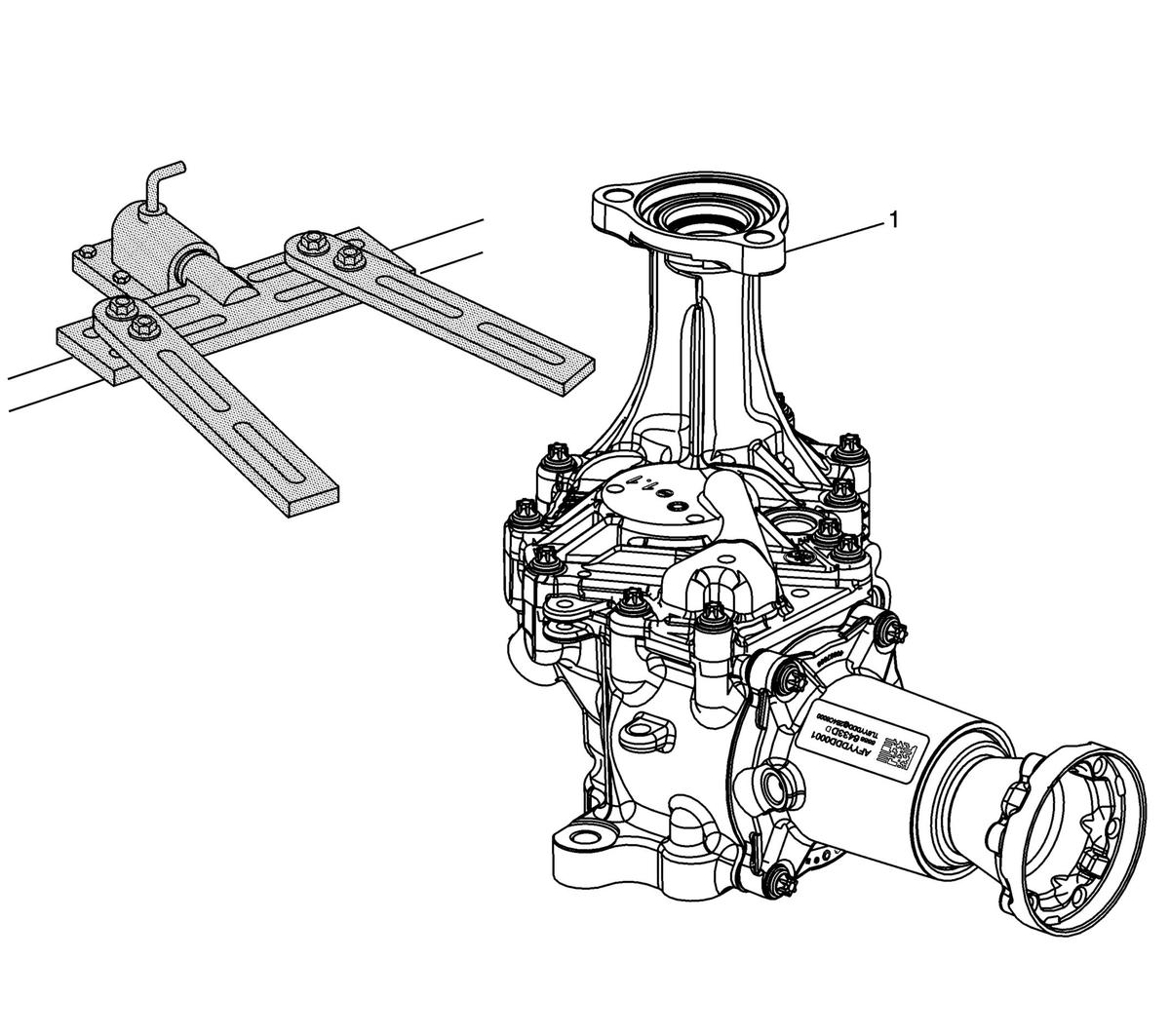

Fig 1: Transfer Case Holding Fixture
GM2745628Courtesy of GENERAL MOTORS COMPANY
Transfer Case Holding Fixture Installation

Callout Component Name
1 Transfer Case
NOTE:

Always secure with the pivot pin after rotating.

NOTE:

The transfer case can be rotated 360 degrees to facilitate repair.

Special Tools

  • DT 3289-20  Holding Fixture
  • DT 36842  Transaxle Holding Fixture

For equivalent regional tools, refer to Special Tools .
