Transfer Case Rear Output Shaft Installation

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

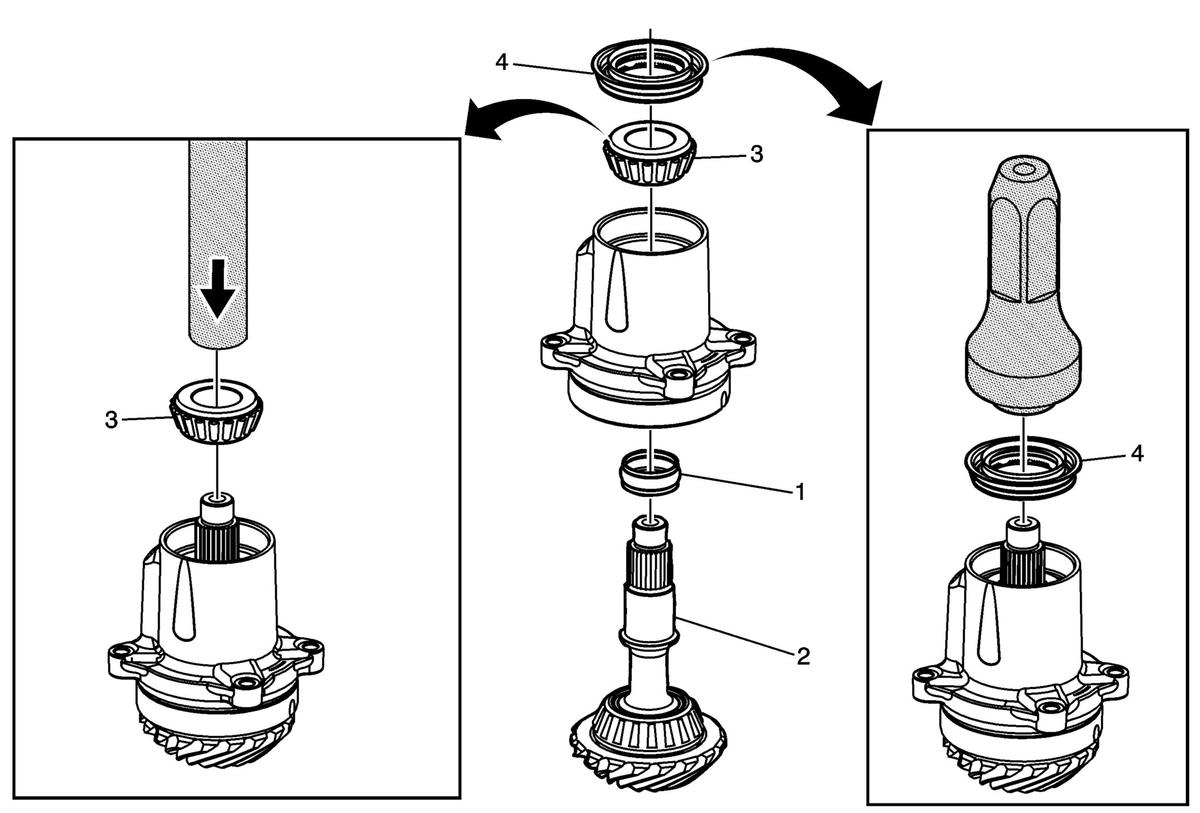

Fig 1: Transfer Case Rear Output Shaft
GM2745644Courtesy of GENERAL MOTORS COMPANY
Transfer Case Rear Output Shaft Installation

Callout Component Name
1 Transfer Case Rear Output Shaft Bearing Spacer
NOTE:

Install a NEW rear output shaft bearing spacer.
2 Transfer Case Rear Output Shaft Assembly
3 Transfer Case Rear Output Shaft Rear Bearing
NOTE:

Use a press to install the rear bearing.
4 Transfer Case Rear Output Shaft Seal
Special Tools
DT-45756  Seal Installer
For equivalent regional tools, refer to Special Tools .
