Transfer Case Propeller Shaft Flange Installation

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

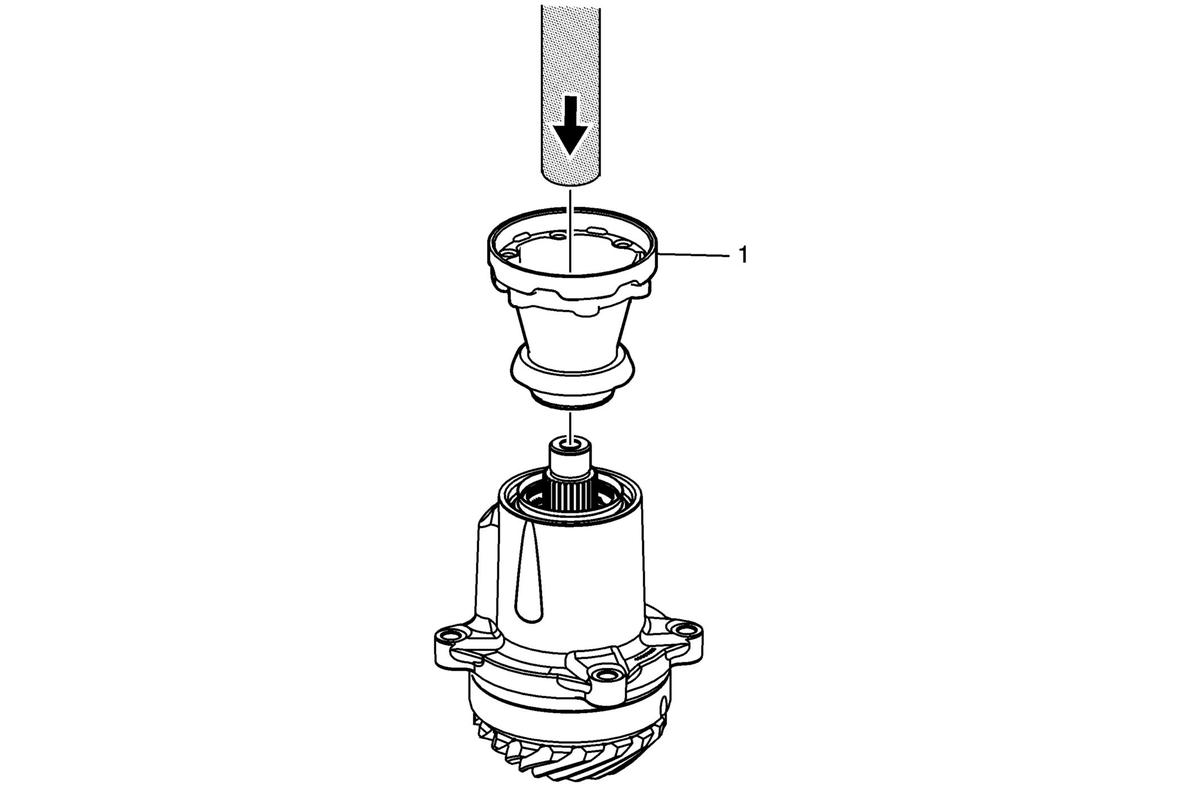

Fig 1: Transfer Case Propeller Shaft Flange
GM2745643Courtesy of GENERAL MOTORS COMPANY
Transfer Case Propeller Shaft Flange Installation

Callout Component Name
1 Transfer Case Propeller Shaft Flange
Procedure
Apply sealant to the ID splines of the flange. Refer to Adhesives, Fluids, Lubricants, and Sealers .
NOTE:

Use a press to install the propeller shaft flange.
