Transfer Case Input Shaft Bearing Retainer Rear Seal and Front Wheel Drive Intermediate Shaft Seal Installation

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

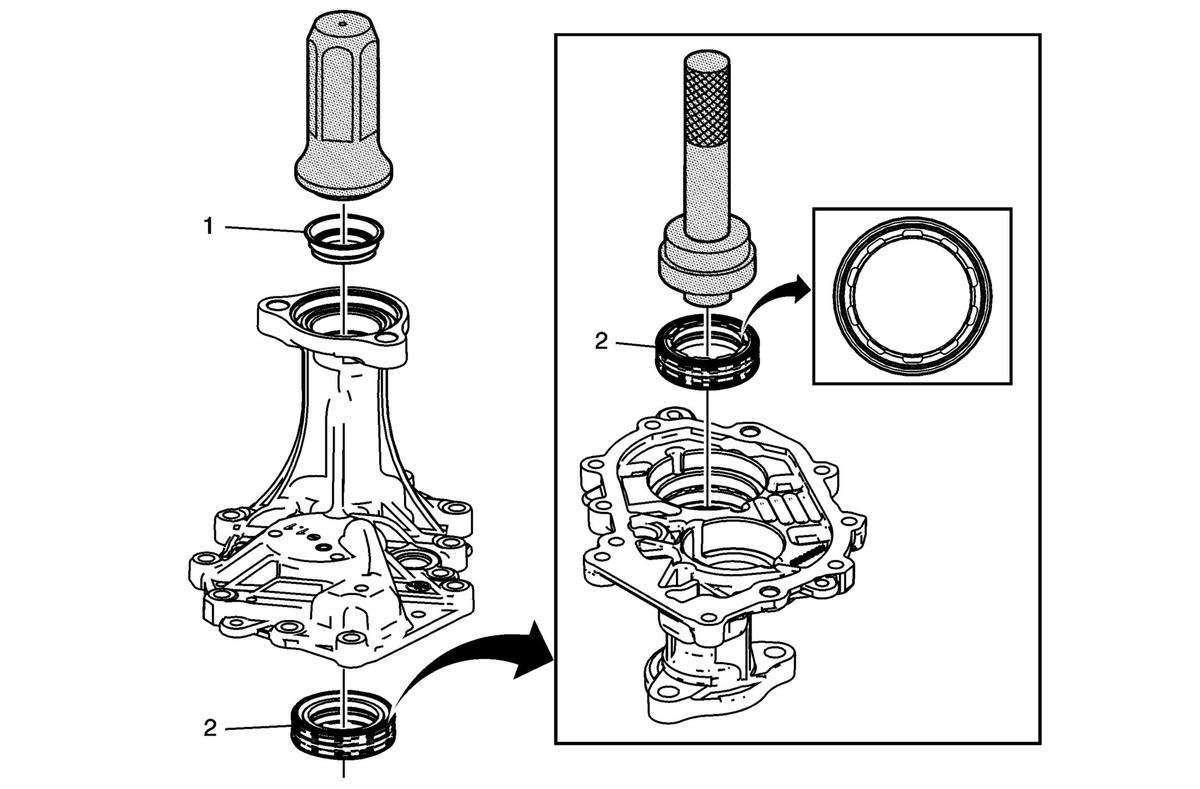

Fig 1: Input Shaft Bearing Retainer Rear Seal And Front Wheel Drive Intermediate Shaft Seal

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Front Wheel Drive Intermediate Shaft Seal Procedure In order to retain the intermediate shaft seal to the DT-41819 Input Shaft Seal Installer , it may be necessary to apply a thin layer of transmission assembly grease DT-36850 Transjel Lubricant to the face of the tool. Install the intermediate shaft seal (1), to the rear extension housing using the DT-41819 installer . Clean any residual grease from the face of the seal. NOTE: Inspect the tool flange for scratches or scoring. If tool damage is present, seal lip damage may occur. Replace the tool as required. Special Tools DT-36850 Transjel Lubricant DT-41819 Input Shaft Seal Installer For equivalent regional tools, refer to Special Tools .
2	Transfer Case Input Shaft Bearing Retainer Rear Seal NOTE: Inspect the tool flange for scratches or scoring. If tool damage is present, seal lip damage may occur. Replace the tool as required. Use the small end of the tool to install the seal. Install the NEW seal with the notched metal surface of the seal facing the installer tool. Special Tools DT-8092 Driver Handle DT-50840 Input Shaft Seal Installer For equivalent regional tools, refer to Special Tools .

Callout

Component Name

Front Wheel Drive Intermediate Shaft Seal

Procedure

In order to retain the intermediate shaft seal to the DT-41819 Input Shaft Seal Installer , it may be necessary to apply a thin layer of transmission assembly grease DT-36850 Transjel Lubricant to the face of the tool.
Install the intermediate shaft seal (1), to the rear extension housing using the DT-41819 installer .
Clean any residual grease from the face of the seal.

NOTE:

Inspect the tool flange for scratches or scoring. If tool damage is present, seal lip damage may occur. Replace the tool as required.

Special Tools

DT-36850 Transjel Lubricant
DT-41819 Input Shaft Seal Installer

For equivalent regional tools, refer to Special Tools .

Transfer Case Input Shaft Bearing Retainer Rear Seal

NOTE:

Inspect the tool flange for scratches or scoring. If tool damage is present, seal lip damage may occur. Replace the tool as required.
Use the small end of the tool to install the seal.
Install the NEW seal with the notched metal surface of the seal facing the installer tool.

Special Tools

DT-8092 Driver Handle
DT-50840 Input Shaft Seal Installer

For equivalent regional tools, refer to Special Tools .
