Transfer Case Input Shaft Bearing Retainer Front Seal Installation

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

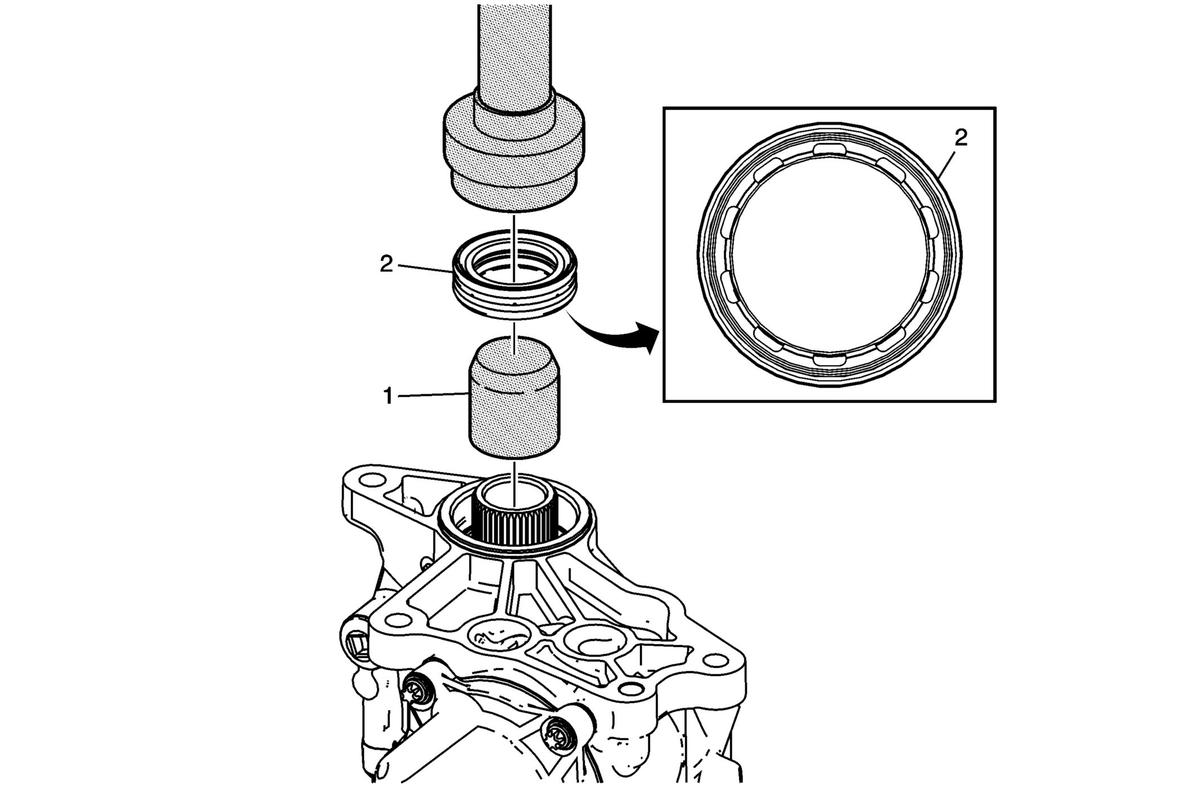

Fig 1: Input Shaft Bearing Retainer Front Seal And Special Tools

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Input Shaft Seal Protector CAUTION: When installing the input shaft seal into the main housing, use the seal protector to prevent input shaft seal damage. The seal protector is included as a part of the service seal parts kit.
2	Transfer Case Input Shaft Bearing Retainer Front Seal Procedure Install the seal protector over the splines of the input shaft. Remove the seal protector after the input shaft seal is installed into the housing. NOTE: The seal protector is part of the service seal kit. Use the large end of the DT-50840 to install the seal. Install the NEW seal with the notched metal surface of the seal facing away from the installer tool and facing the inside of housing. Special Tools DT-8092 Driver Handle DT-50840 Input Shaft Seal Installer For equivalent regional tools, refer to Special Tools .

Callout

Component Name

Input Shaft Seal Protector

CAUTION:

When installing the input shaft seal into the main housing, use the seal protector to prevent input shaft seal damage. The seal protector is included as a part of the service seal parts kit.

Transfer Case Input Shaft Bearing Retainer Front Seal

Procedure

Install the seal protector over the splines of the input shaft.
Remove the seal protector after the input shaft seal is installed into the housing.

NOTE:

The seal protector is part of the service seal kit.
Use the large end of the DT-50840 to install the seal.
Install the NEW seal with the notched metal surface of the seal facing away from the installer tool and facing the inside of housing.

Special Tools

DT-8092 Driver Handle
DT-50840 Input Shaft Seal Installer

For equivalent regional tools, refer to Special Tools .
