Transfer Case Input Shaft Bearing Race and Idler Shaft Bearing Race Installation

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

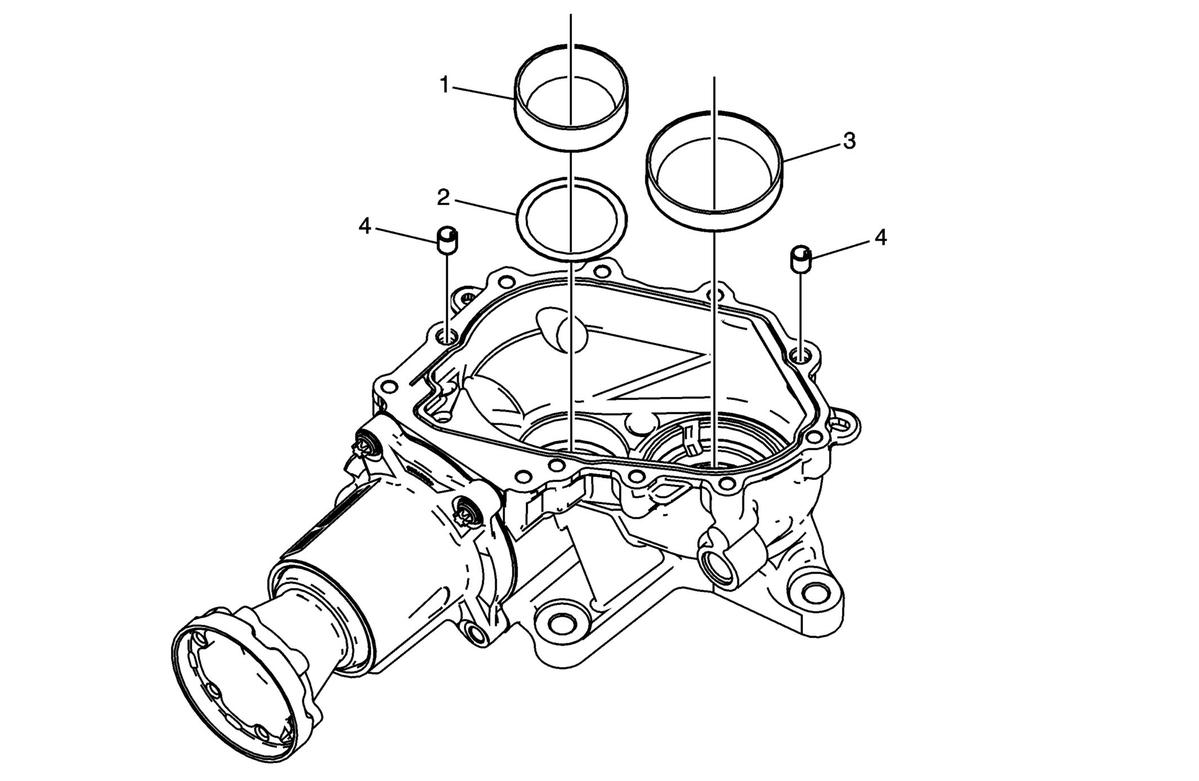

Fig 1: Input Shaft Bearing Race And Idler Shaft Bearing Race

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Idler Shaft Bearing Shim NOTE: Note the position of the shim for assembly.
2	Idler Shaft Bearing Race NOTE: The bearing races are not an interference fit to the housing bore. Apply a thin coating of assembly grease to the OD of the race to retain it in the housing.
3	Input Shaft Bearing Race NOTE: The bearing races are not an interference fit to the housing bore. Apply a thin coating of assembly grease to the OD of the race to retain it in the housing.
4	Transfer Case Rear Extension Housing Locating Pins (Qty: 2). NOTE: Install the locating pins as required.

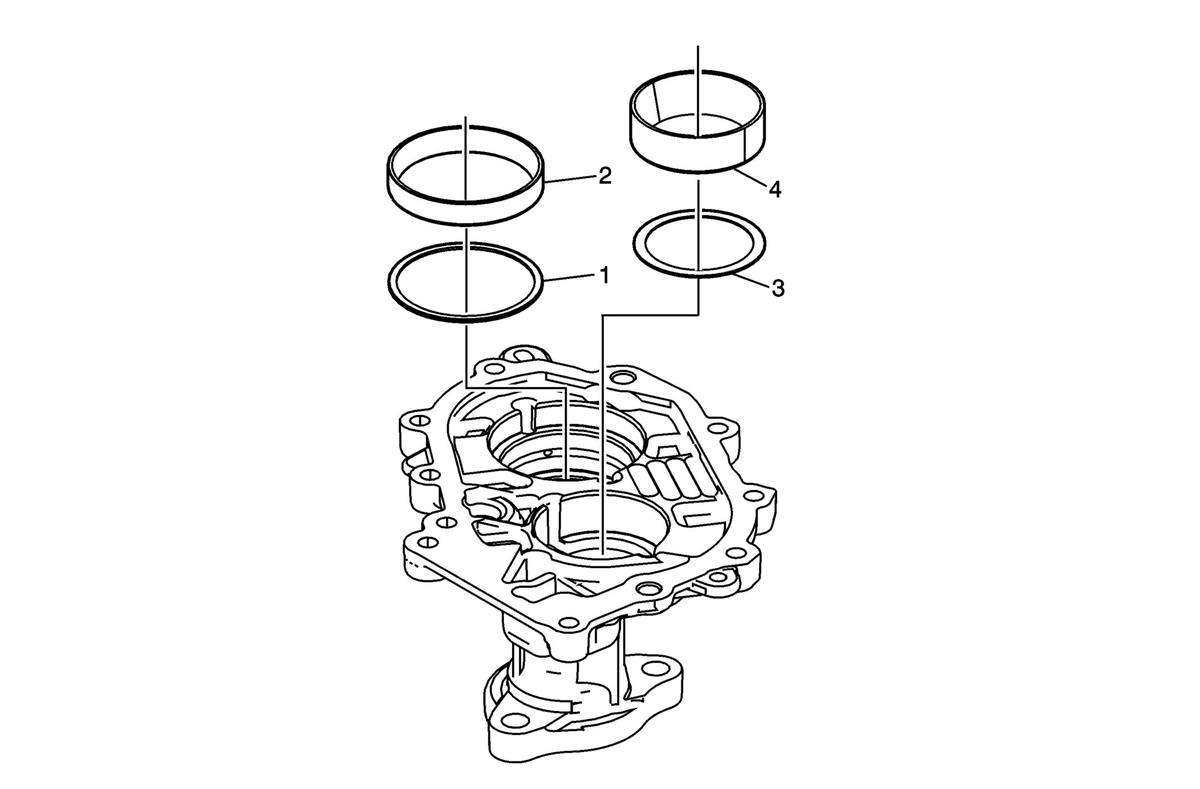

Fig 1: Input Shaft Bearing Race and Idler Shaft Bearing Race

Courtesy of GENERAL MOTORS COMPANY

Transfer Case Input Shaft Bearing Race and Idler Shaft Bearing Race Installation

Callout	Component Name
1	Input Shaft Rear Shim NOTE: Note the position of shims for assembly.
2	Input Shaft Rear Bearing Race NOTE: The bearing races are not an interference fit to the housing bore. Apply a thin coating of assembly grease to the OD of the race to retain it in the housing.
3	Idler Shaft Rear Shim NOTE: Note the position of shims for assembly.
4	Idler Shaft Rear Bearing Race NOTE: The bearing races are not an interference fit to the housing bore. Apply a thin coating of assembly grease to the OD of the race to retain it in the housing.
