Transfer Case Secondary Identification Stamping

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

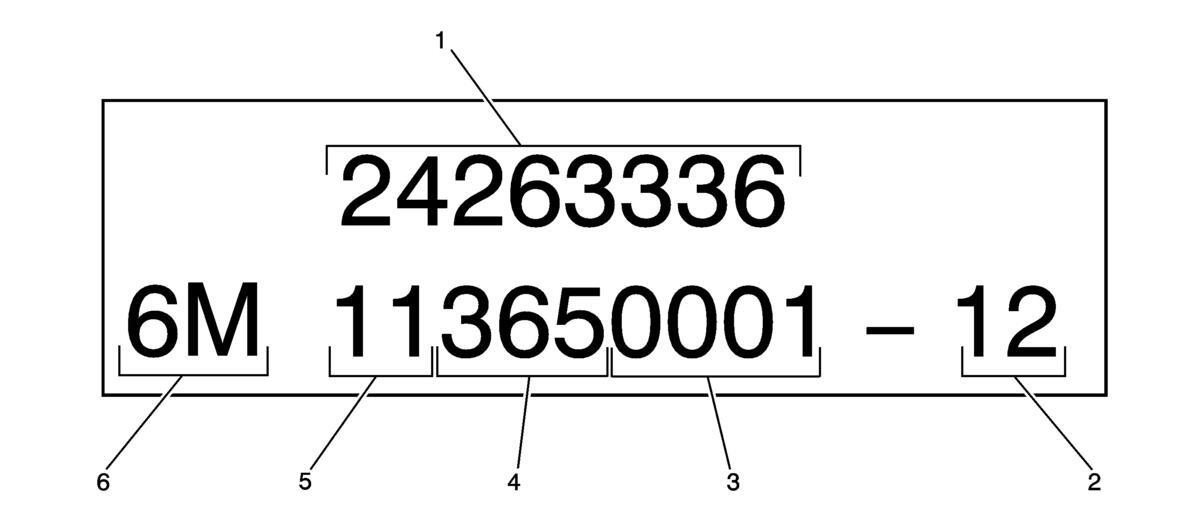

Fig 1: Transfer Case Secondary Identification Stamping
GM2772035Courtesy of GENERAL MOTORS COMPANY
  1. GM Part Number
  2. Build Hour
  3. Daily Build Count
  4. Day of the Year
  5. Model Year
  6. BOM Code
