Installation Procedure

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Catalytic Converter And Exhaust Front Pipe

Courtesy of GENERAL MOTORS COMPANY

Install a NEW exhaust gasket (2) onto the exhaust front pipe (5).

CAUTION:

Refer to Fastener Caution .

Install the warm up 3 way catalytic converter (3) into the exhaust isolators (1) and the onto the exhaust front pipe (5). Tighten the fasteners (4) to 17 N.m (13 lb ft).

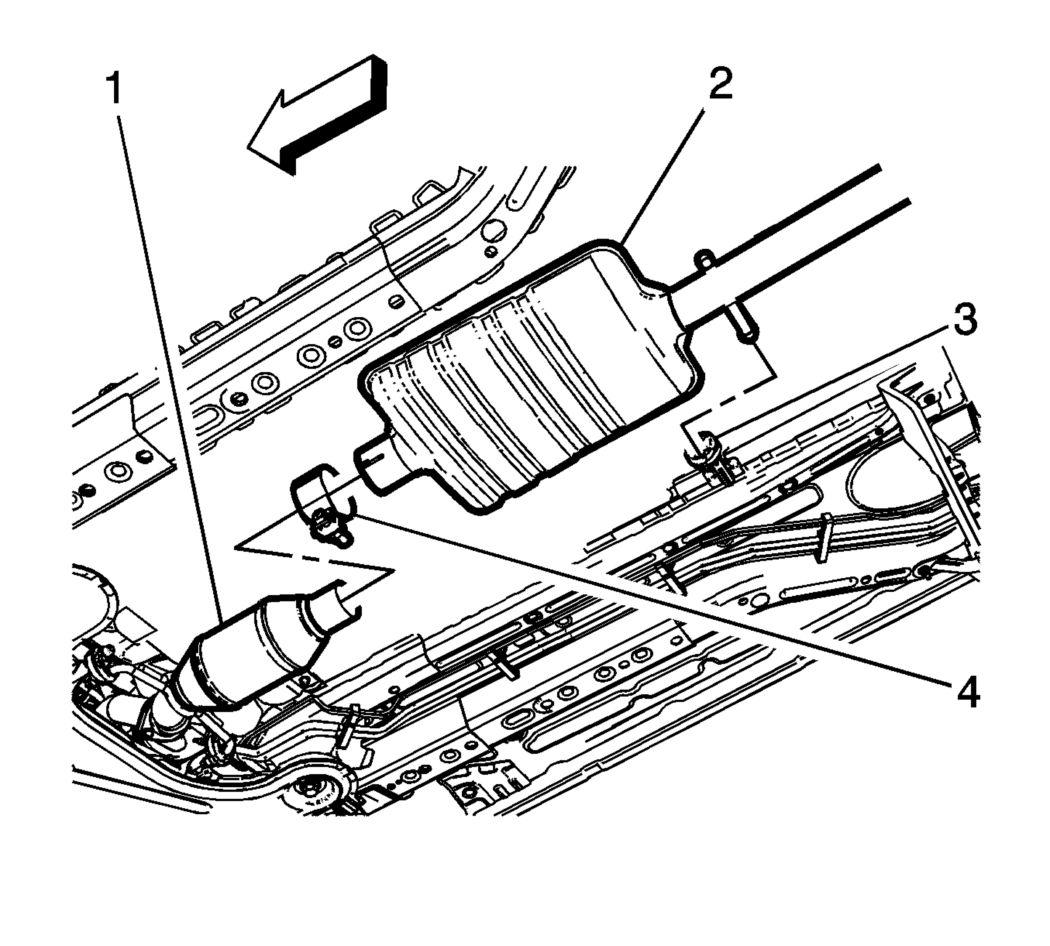

Fig 2: Exhaust Muffler And Warm Up 3 Way Catalytic Converter

Courtesy of GENERAL MOTORS COMPANY

Install the exhaust muffler (2) into the exhaust isolator (3) and the warm up 3 way catalytic converter (1). Tighten the exhaust clamp fastener (4) to 50 N.m (37 lb ft).
Lower the vehicle.
Start the engine and check for exhaust leaks.
