Removal Procedure
WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Refer to Exhaust Service Warning .
WARNING:
Refer to Protective Goggles and Glove Warning .
- Remove the exhaust manifold heat shield. Refer to Exhaust Manifold Heat Shield Replacement (LUV) .
- Remove the catalytic converter heated oxygen sensor - 1. Refer to Heated Oxygen Sensor Replacement - Sensor 1 .
- Remove the catalytic converter to the turbocharger clamp fastener and discard the clamp.
- Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
- Remove the exhaust front pipe fasteners (1) and discard the exhaust gasket (2).

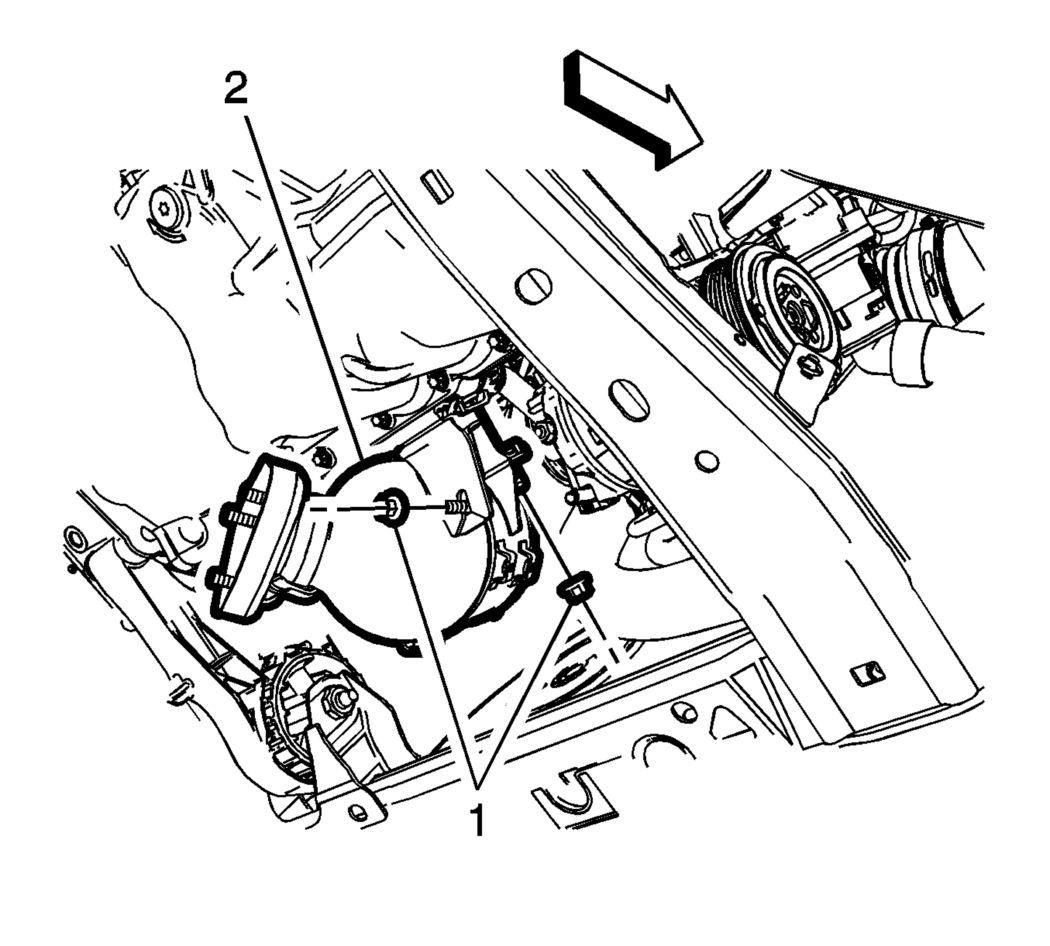

- Remove the catalytic converter brace fasteners (1) from the catalytic converter brace (2).
- Remove the catalytic converter.
