Installation Procedure
WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.
- Clean the sealing surface.

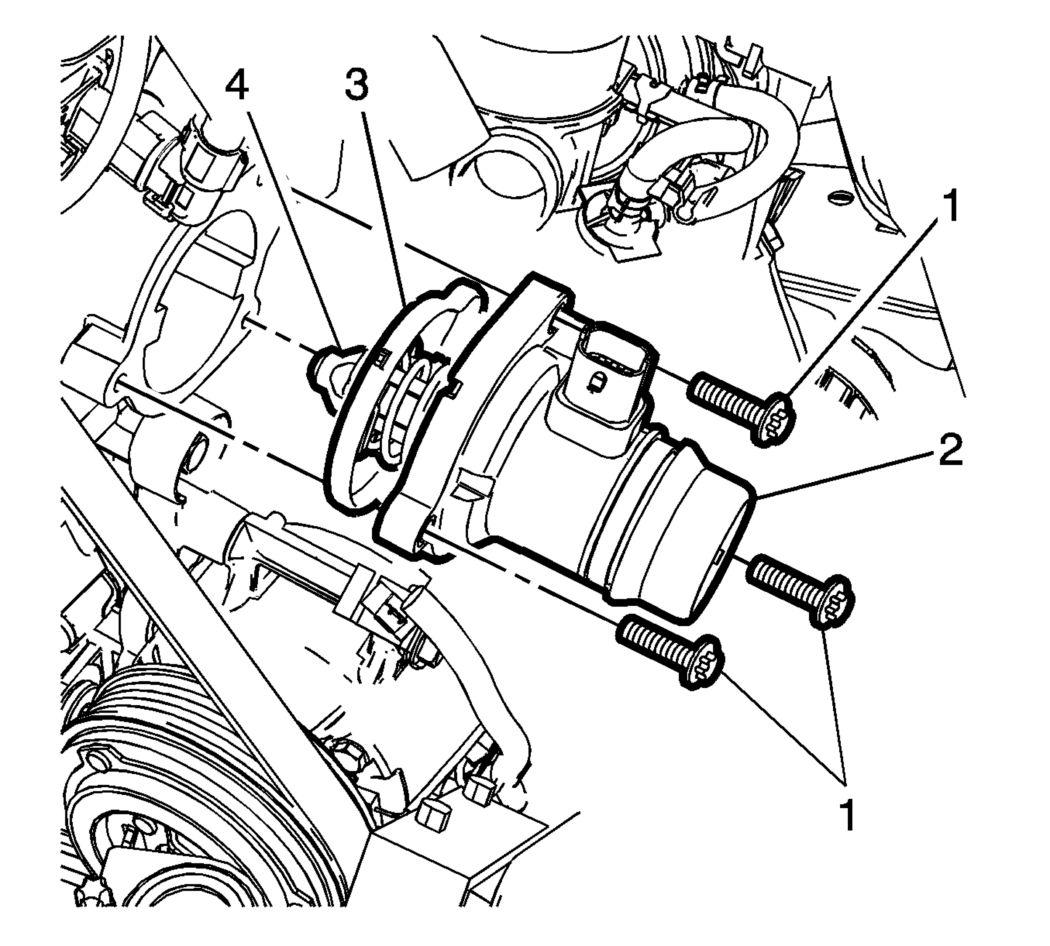

- Install the engine thermostat (4) into the water inlet pipe (2) with a NEW seal (3).
- Tighten the water inlet pipe mounting fasteners (1) to 9 N.m (80 lb in).

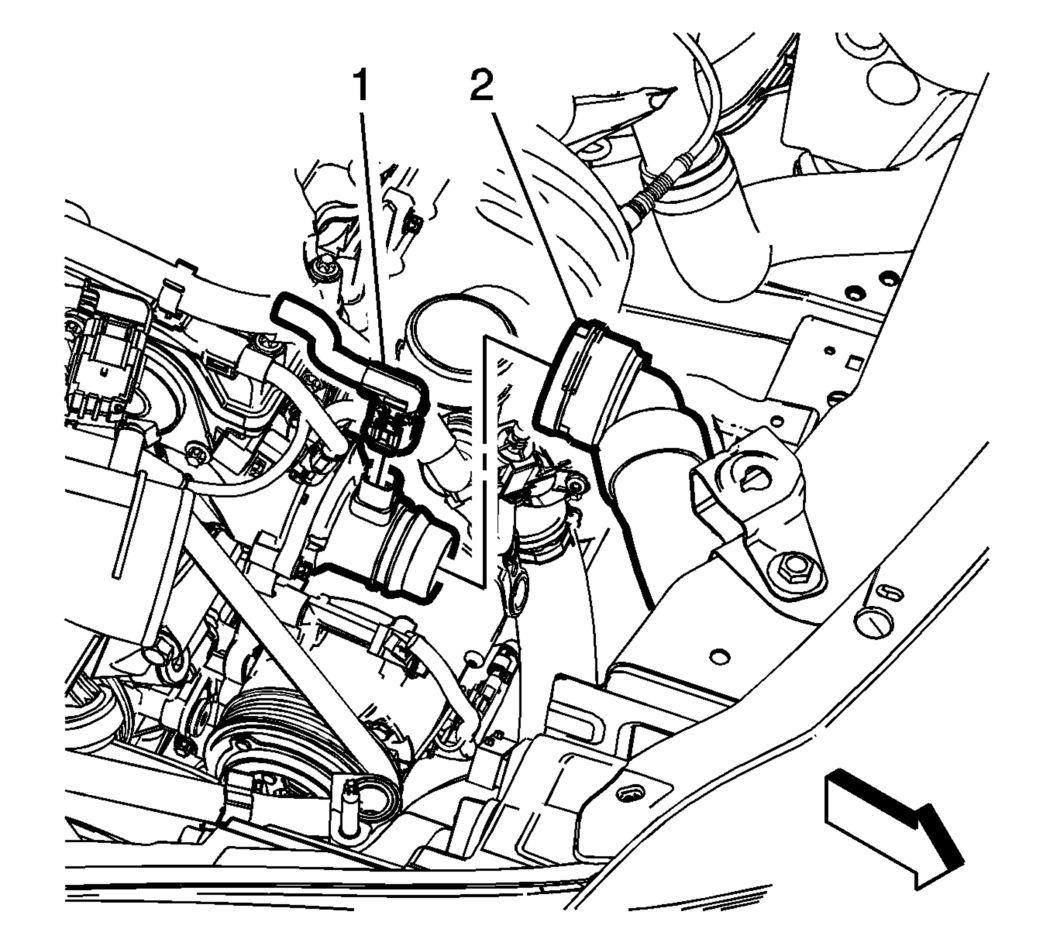

- Install the radiator outlet hose connector (2) to the engine coolant thermostat. Refer to Radiator Outlet Hose Connector Replacement - Engine Side (LUV) .
- Connect the engine coolant temperature sensor connector (1).
- Install the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement .
- Fill the cooling system. Refer to Cooling System Draining and Filling .
- After repairs, inspect cooling system for leaks.
