Underbody Number 4 Cross Sill Shield Replacement
WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

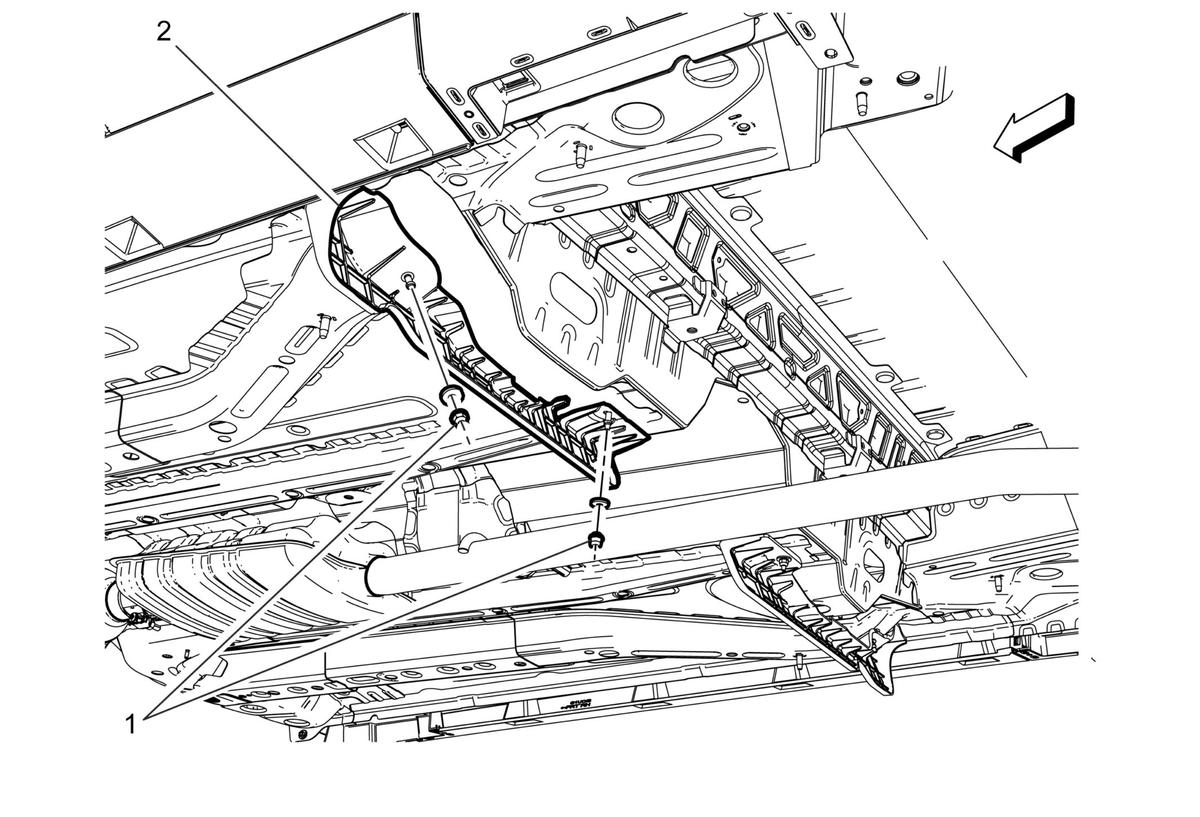

| Callout | Component Name |
|---|---|
| Preliminary Procedures Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . |
|
| 1 | Underbody Number 4 Cross Sill Shield Fastener (Qty: 2)
CAUTION:
Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in) |
| 2 | Underbody Number 4 Cross Sill Shield |
