Installation Procedure

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

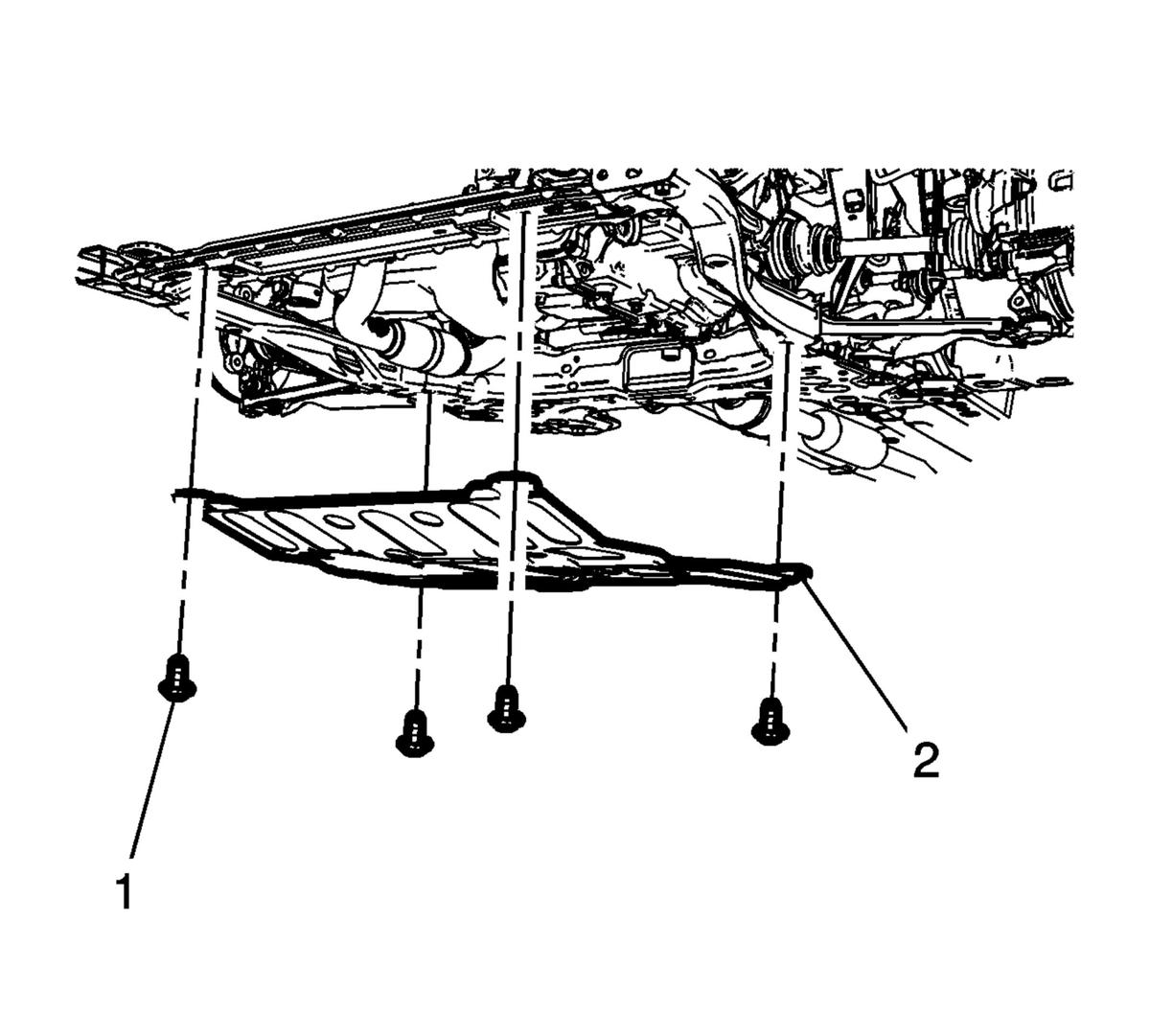

    Fig 1: Front Suspension Skid Plate & Bolts
    GM2508614Courtesy of GENERAL MOTORS COMPANY
  1. Position the front suspension frame transmission protector (2) on the frame.
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install the front suspension frame transmission protector mounting bolts (2) and tighten to 22 N.m (16 lb ft).
  3. Lower the vehicle.
