Installation Procedure

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the following components on the drivetrain and front suspension frame if removed:
  2. Install the frame into the vehicle.

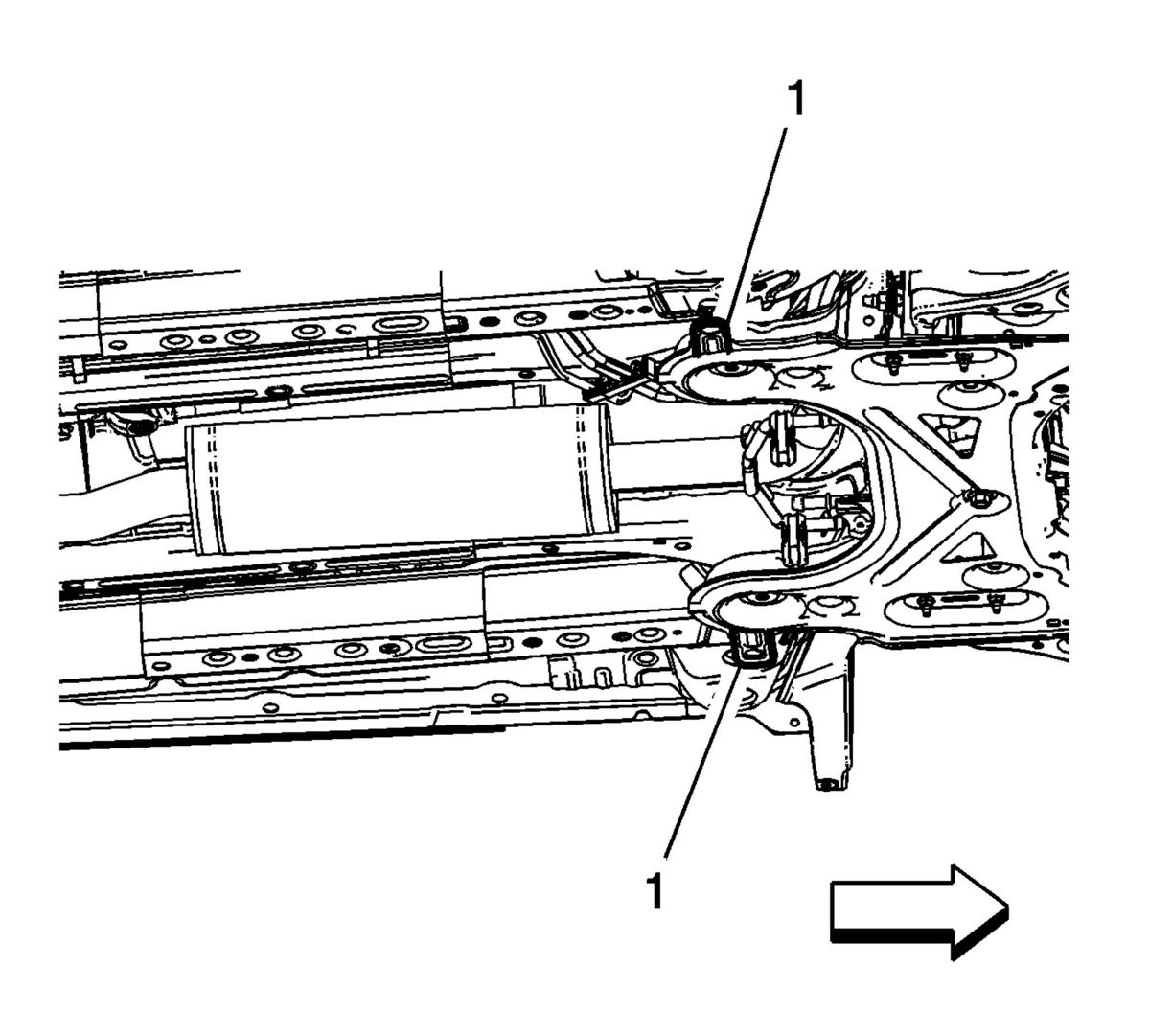

    3. Fig 1: Front Suspension Frame And Floor Panel
    GM2888254Courtesy of GENERAL MOTORS COMPANY
  3. Using a commercially available guide pin, have an assistant vertically insert and hold the pins through the front suspension frame and floor panel (1).

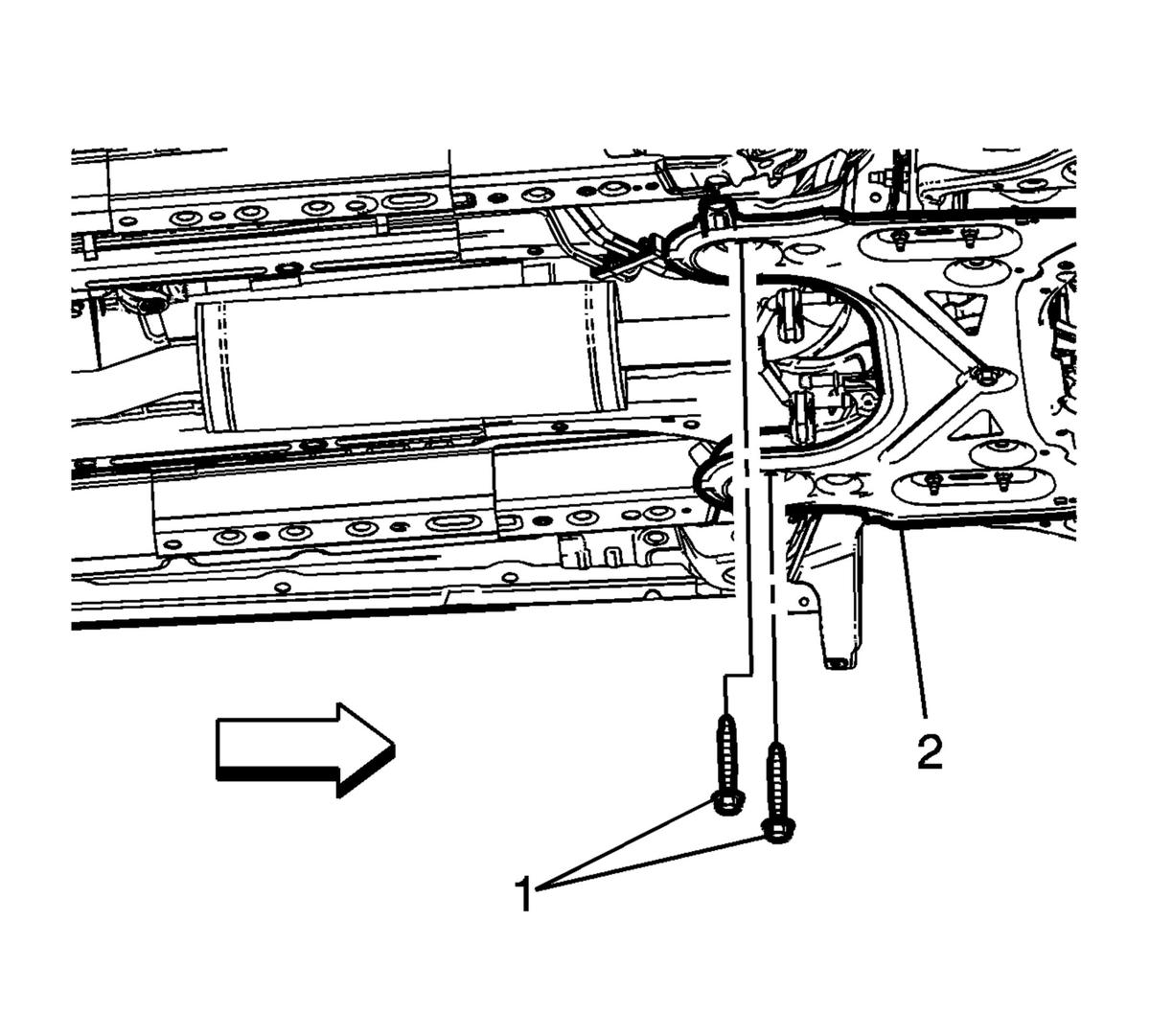

    4. Fig 2: Frame Rear Fasteners
    GM2888253Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  4. Install the frame (2) rear fasteners (1) and tighten:
    1. First Pass:160 N.m (118 lb ft).
    2. Final Pass: an additional 30 to 45 degrees.

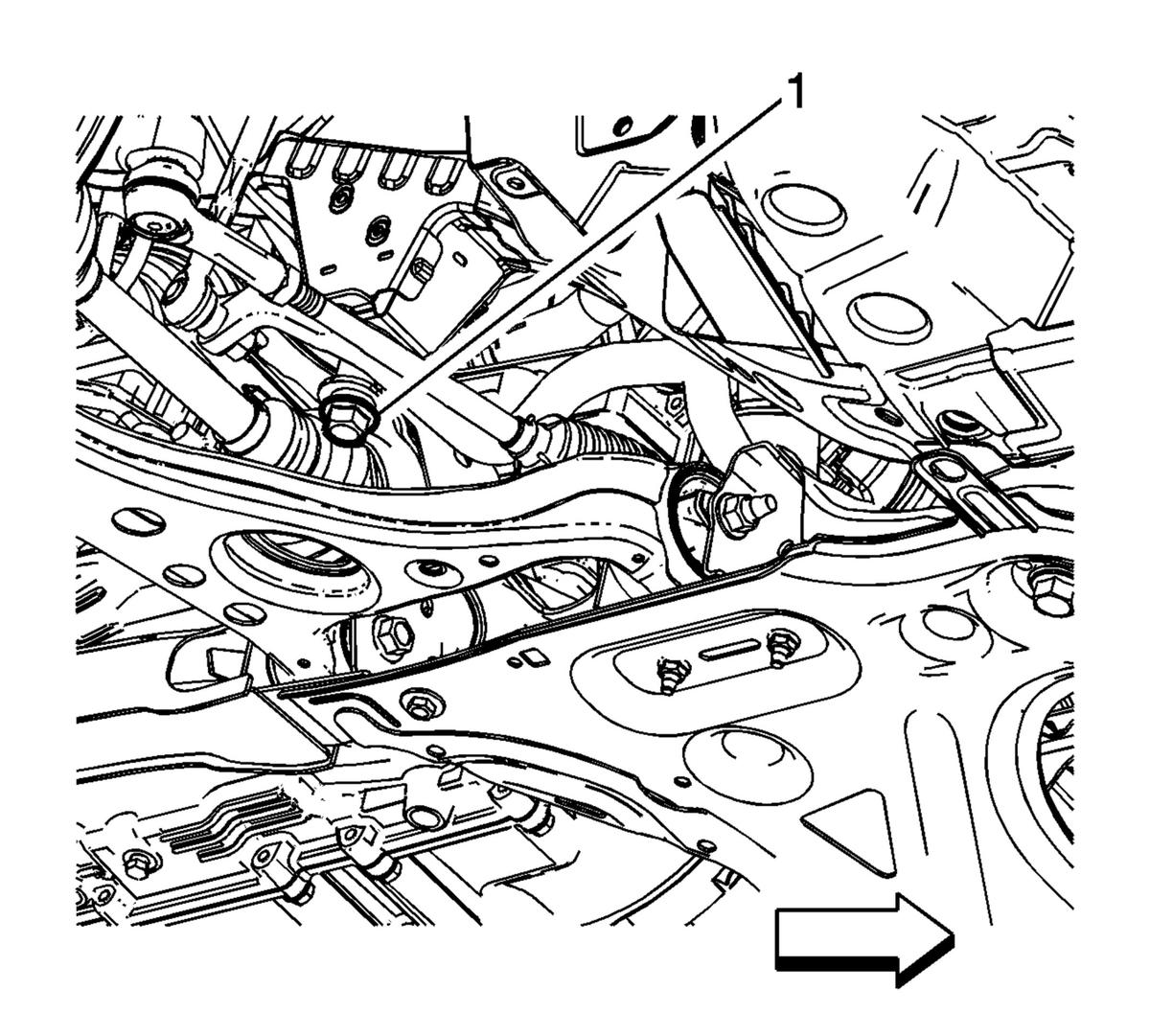

    5. Fig 3: Upper Frame Suspension Retaining Bolts
    GM2888252Courtesy of GENERAL MOTORS COMPANY
  5. Install the two upper frame suspension retaining fasteners (1) and tighten to 145 N.m (107 lb ft).
  6. Remove the wire retaining the power steering gear and stabilizer shaft to the vehicle.

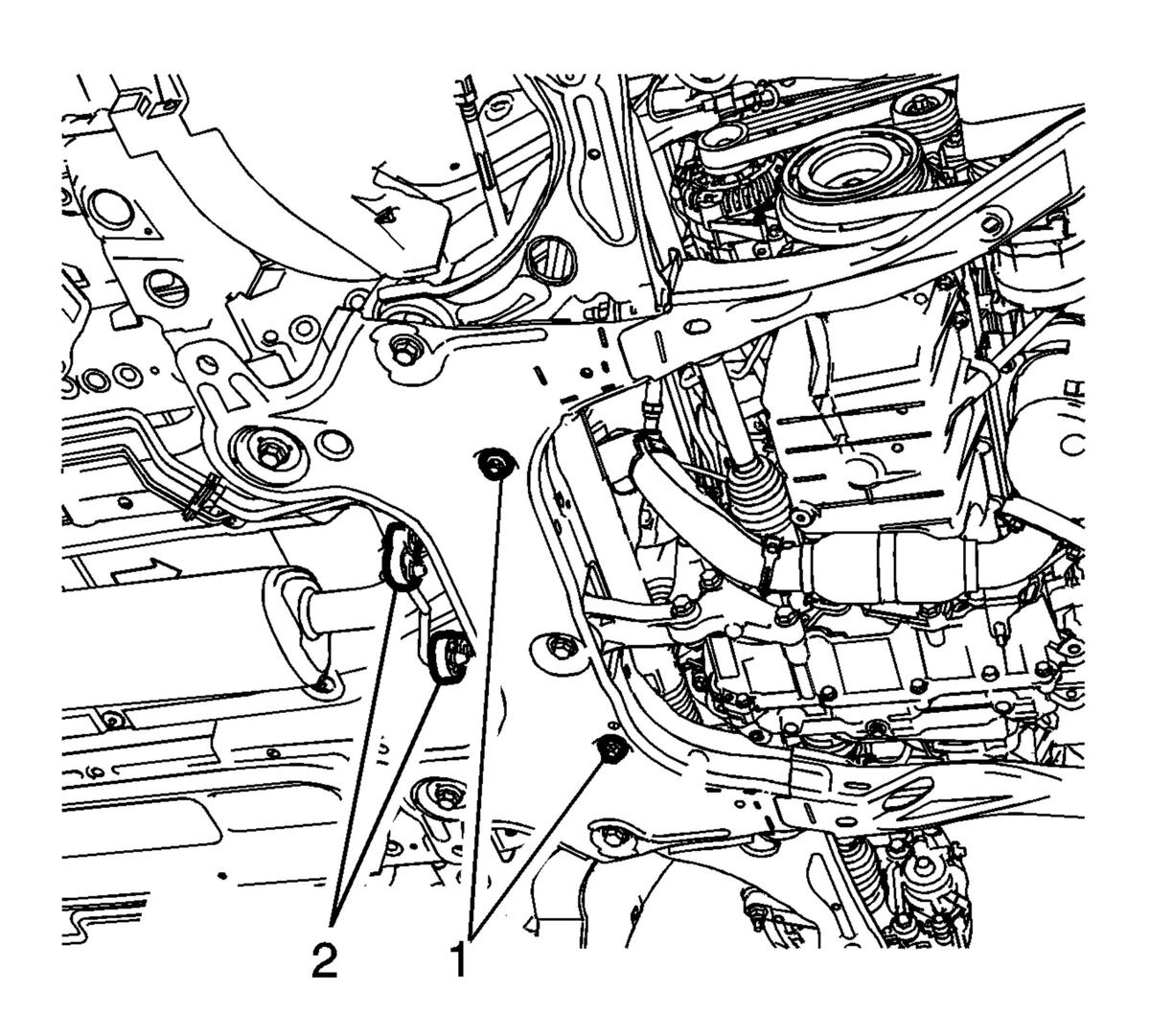

    7. Fig 4: Steering Rack Retaining Bolts & Exhaust Isolators
    GM2531740Courtesy of GENERAL MOTORS COMPANY
  7. Install the steering gear retaining fasteners (1). Refer to Steering Gear Boot Replacement .
  8. Connect the hydraulic power steering hoses to the front frame.
  9. Connect the exhaust isolators (2) to the front suspension frame.

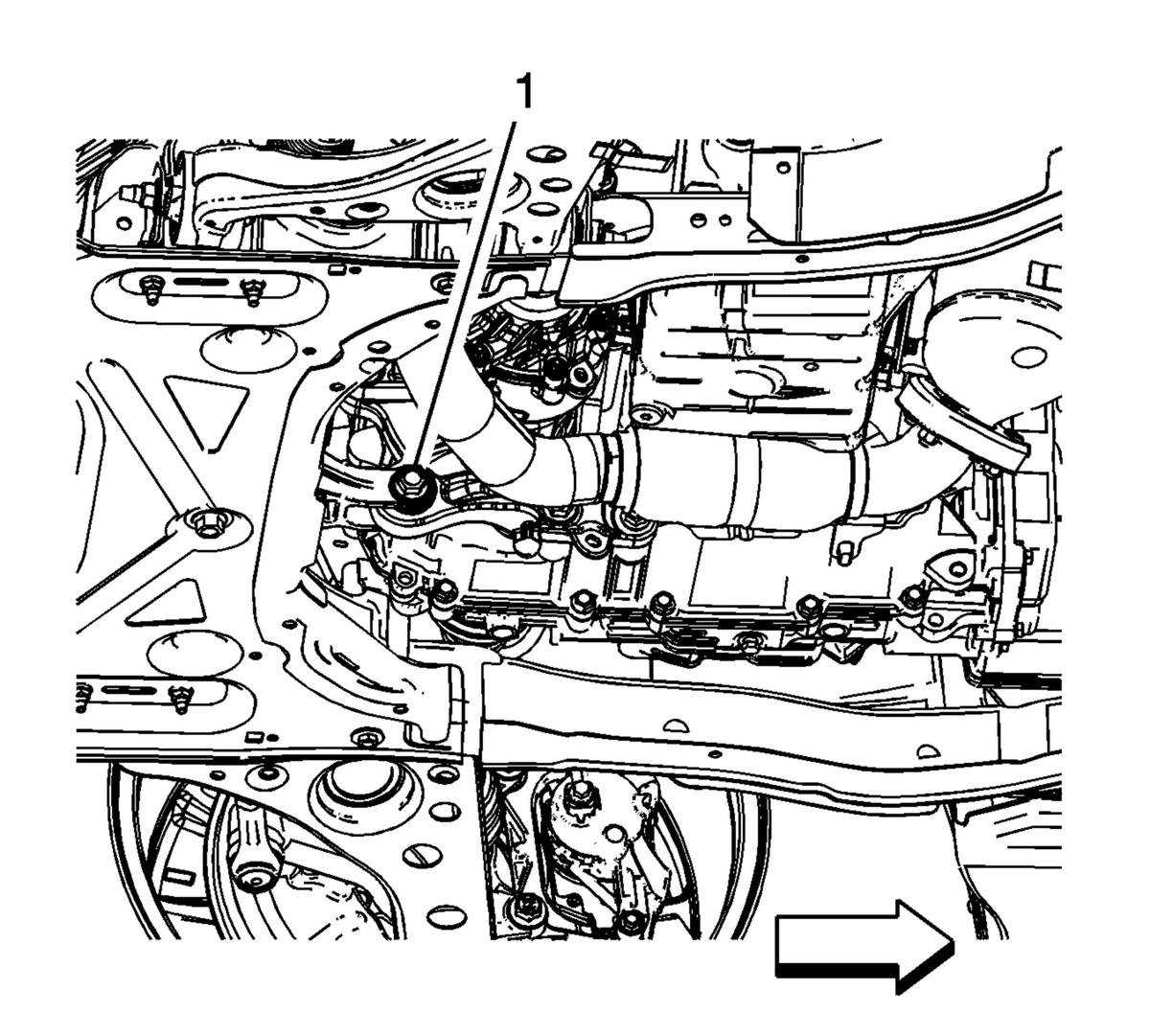

    10. Fig 5: Transmission Mount Bracket To Rear Mount Through Bolt
    GM2888245Courtesy of GENERAL MOTORS COMPANY
  10. Install the rear transmission mount bracket to rear mount through fasteners (1). Refer to Transmission Rear Mount Replacement (AWD)Transmission Rear Mount Replacement (FWD) .
  11. Connect the power brake booster pump hose and connector, if equipped.
  12. Connect the lower ball joints to the steering knuckles. Refer to Lower Control Arm Replacement .
    13. Fig 6: Stabilizer Shaft Insulator Bracket And Bolts
    GM2506890Courtesy of GENERAL MOTORS COMPANY
  13. Connect the stabilizer shaft to the drivetrain and front suspension frame. Refer to Stabilizer Shaft Replacement .
  14. Install the front compartment front center insulator, if equipped. Refer to Front Compartment Front Center Insulator Replacement .
  15. Install the drivetrain and front suspension frame transmission protector to the front frame, if equipped. Refer to Drivetrain and Front Suspension Frame Transmission Protector Replacement .
  16. Install the front tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
  17. Lower the vehicle.
