Installation Procedure
WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.
- Lubricate the camshaft and camshaft bearing caps with engine oil.

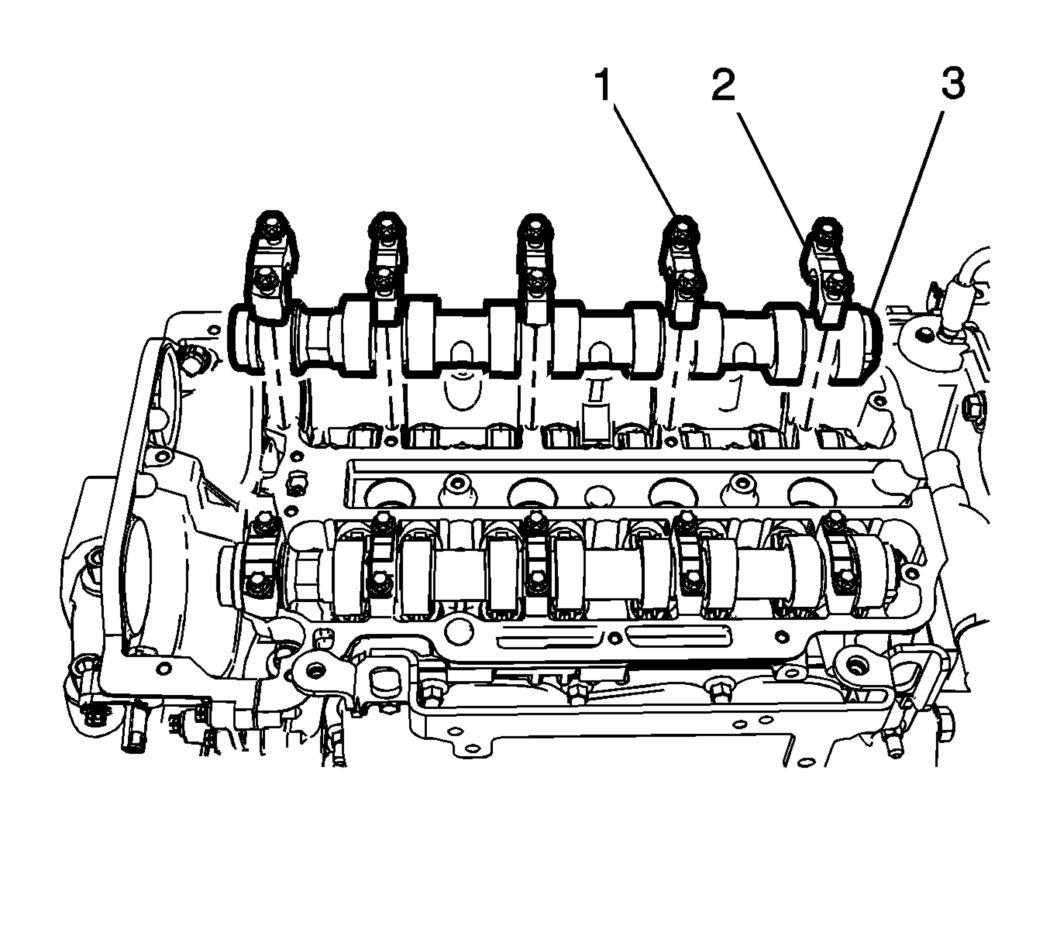

- Install the intake camshaft (3).
- Install the camshaft bearing caps (2).
- Install the camshaft bearing cap bolts and tighten the bolts hand tight (1).
- Install and tighten the camshaft bearing cap bolts one turn at a time in sequence as shown to 8 N.m (71 lb in).
- Install the camshaft intake and exhaust sprocket. Refer to Camshaft Intake and Exhaust Sprocket Replacement .
NOTE:
Ensure that the camshaft sealing rings are in place in the camshaft grooves. Camshaft sealing rings must be in place below the surface of the camshaft journal in order to avoid being pinched between the cylinder head and the camshaft caps.
CAUTION:
Refer to Fastener Caution .
