Hydraulic Valve Lash Adjuster Arm Replacement
WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS COMPANY
| Callout |
Component Name |
|
Preliminary Procedures
- Remove the intake camshaft. Refer to Intake Camshaft Replacement .
- Remove the exhaust camshaft. Refer to Exhaust Camshaft Replacement .
|
| 1 |

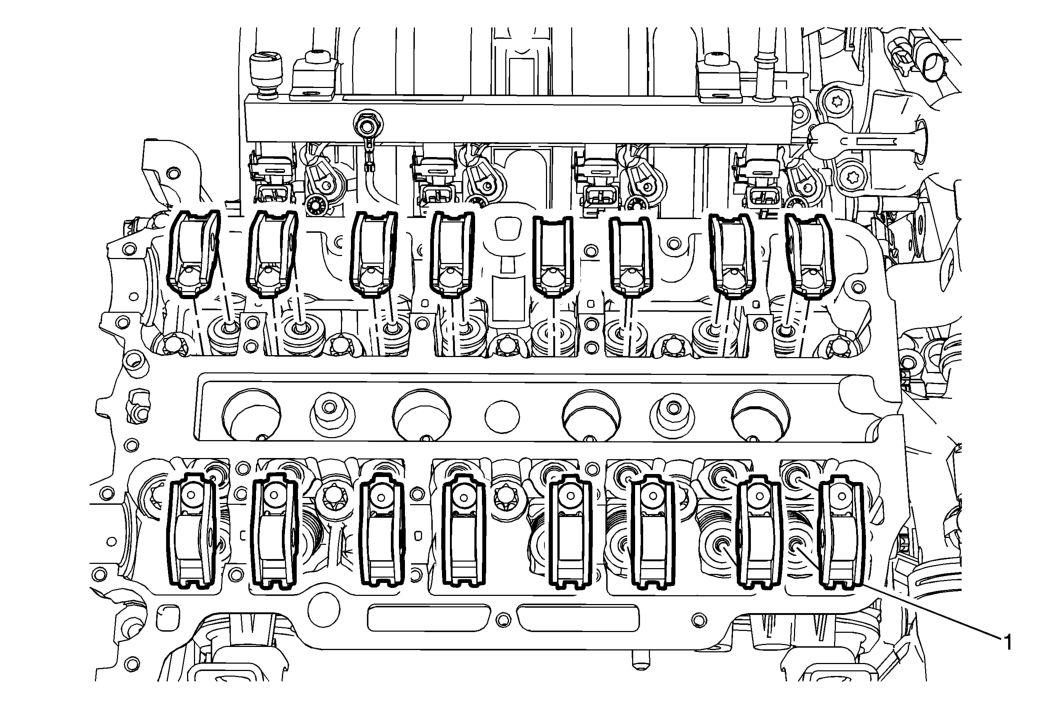

Hydraulic Valve Lash Adjuster Arms Procedure
- Mark the hydraulic valve lash adjuster arms upon removal to ensure installation is in the correct position.
- Lubricate the hydraulic valve lash adjuster arms with engine oil before installing the arms.
|
