Installation Procedure

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

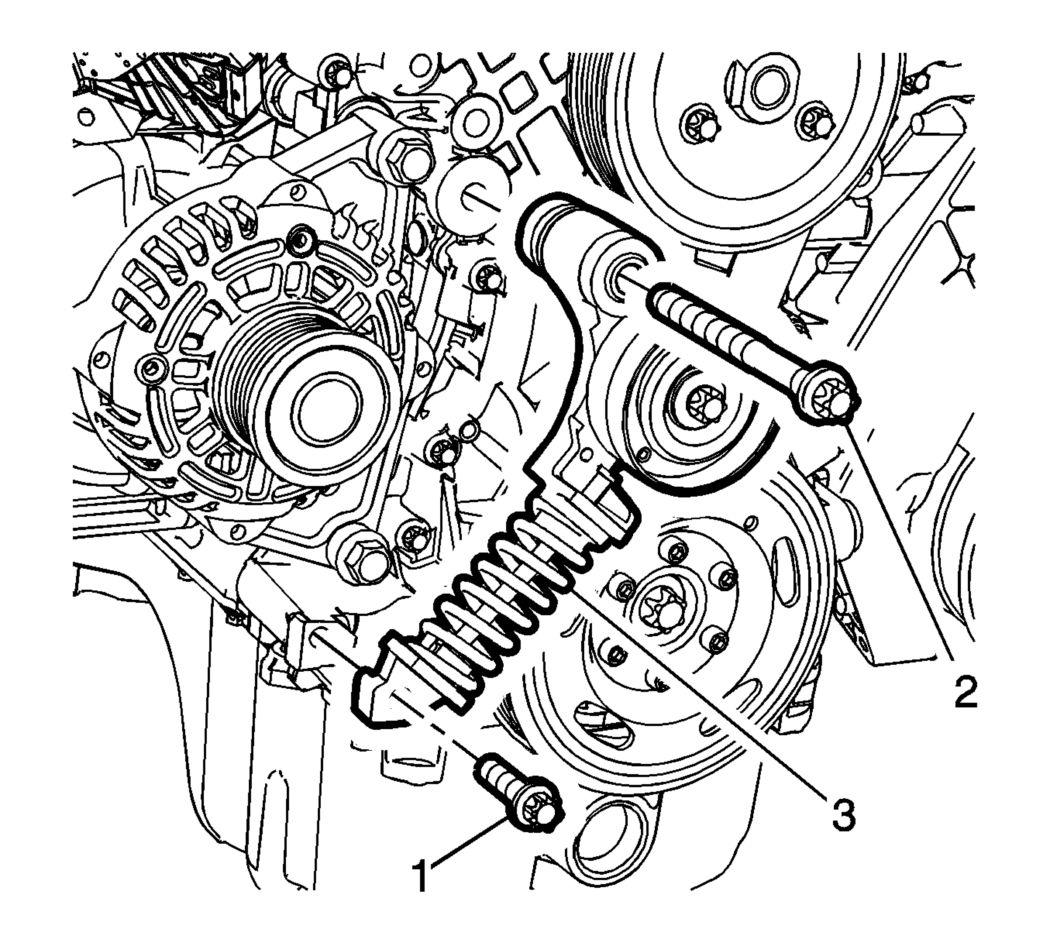

    Fig 1: Drive Belt Tensioner & Bolts
    GM2508840Courtesy of GENERAL MOTORS COMPANY
  1. Install the drive belt tensioner (3).
  2. Install the lower drive belt tensioner bolt (1).
  3. Install the upper drive belt tensioner bolt (2).
    4. CAUTION:

    Refer to Fastener Caution .

  4. Tighten the lower drive belt tensioner bolt (1) to 22 N.m (16 lb ft).
  5. Tighten the upper drive belt tensioner bolt (2) to 55 N.m (41 lb ft).
    6. Fig 2: Holding Wrench And Drive Belt Tensioner
    GM2191345Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Engine mount bracket is removed.

  6. Install the EN-48488  holding wrench (2) to drive belt tensioner (1).
    7. Fig 3: Locking Pin
    GM2191140Courtesy of GENERAL MOTORS COMPANY
  7. Move the drive belt tensioner clockwise until the drive belt tensioner can be fixed with EN-955  locking pin (1).
  8. Install the drive belt.
  9. Move the drive belt tensioner clockwise until EN-955  locking pin can be removed.
  10. Allow the tensioner to slide back slowly.
  11. Remove the EN-48488  holding wrench.
  12. Install the drive belt. Refer to Drive Belt Replacement .
