Installation Procedure

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: Crankshaft Rear Oil Seal And Installer
    GM2190821Courtesy of GENERAL MOTORS COMPANY
  1. Install the crankshaft rear oil seal (1) with EN-658  installer (2).

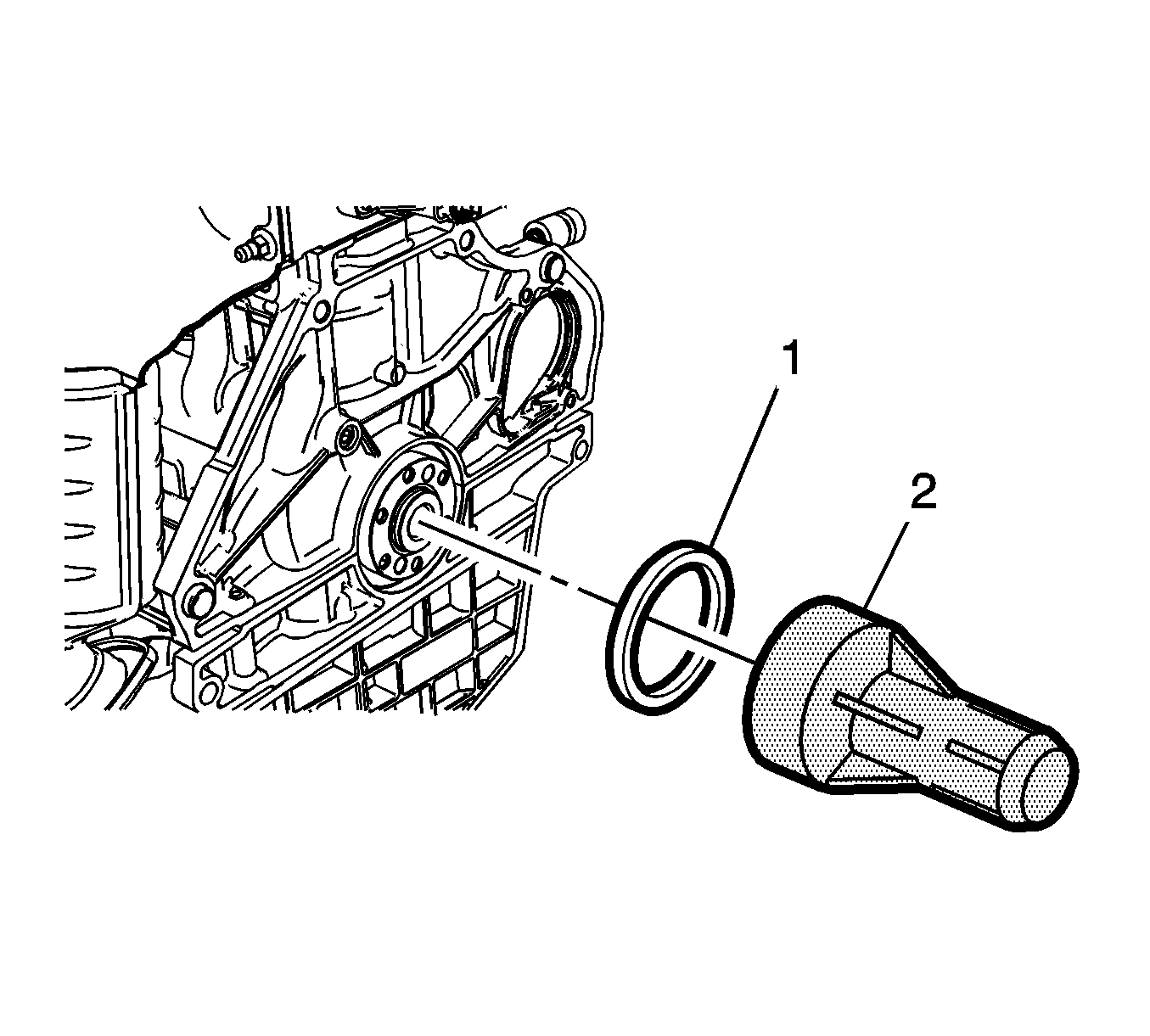

    2. Fig 2: Crankshaft Real Oil Seal Installer
    GM2399604Courtesy of GENERAL MOTORS COMPANY
  2. Using the EN-658  installer (2) , install a NEW crankshaft real oil seal (1).
  3. Install the flex plate. Refer to Automatic Transmission Flex Plate Replacement .
