Camshaft Cover Replacement

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

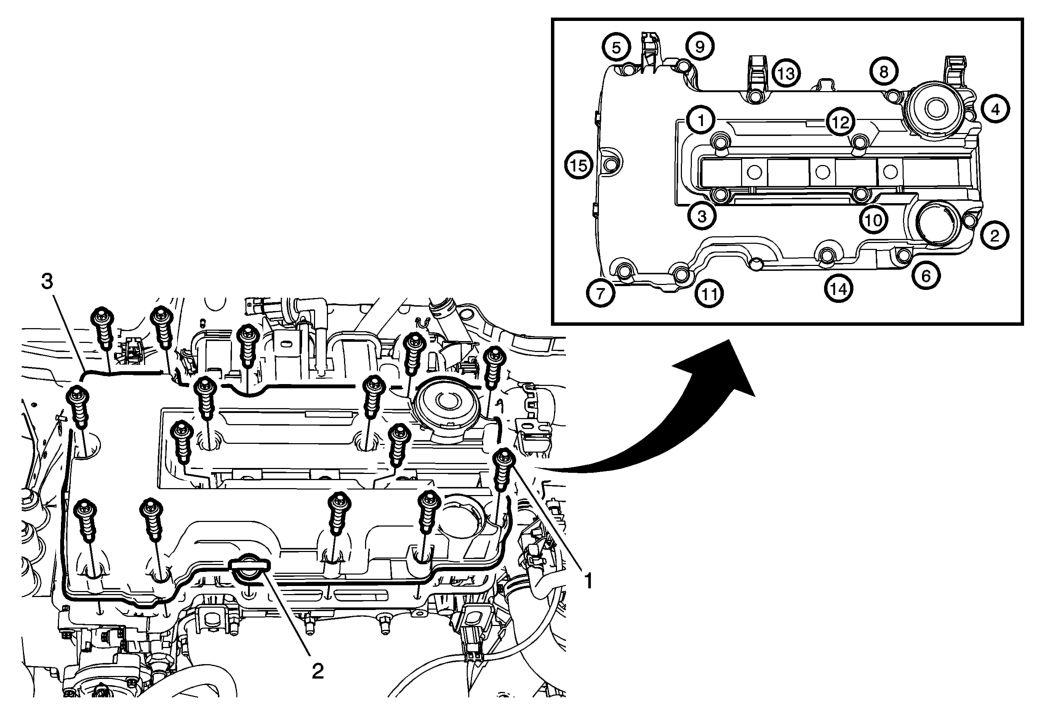

Fig 1: Camshaft Cover, Fasteners And Oil Level Indicator
GM2508812Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the ignition coil. Refer to Ignition Coil Replacement .
1 Camshaft Cover Fastener (Qty: 15)
CAUTION:

Refer to Fastener Caution .


Procedure
Ensure to follow the tighten sequence shown.
Tighten
8 N.m (71 lb in)
2 Oil Level Indicator
TIP:  Remove the oil level indicator from camshaft cover.
3 Camshaft Cover

Procedure

  1. Remove or reposition the clips as necessary.
  2. Do not reuse the camshaft gasket. Also use a new gasket whenever removing or replacing camshaft cover.
  3. Disconnect electrical connector as necessary.
  4. Transfer components as necessary.
