Engine Front Cover Disassemble

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

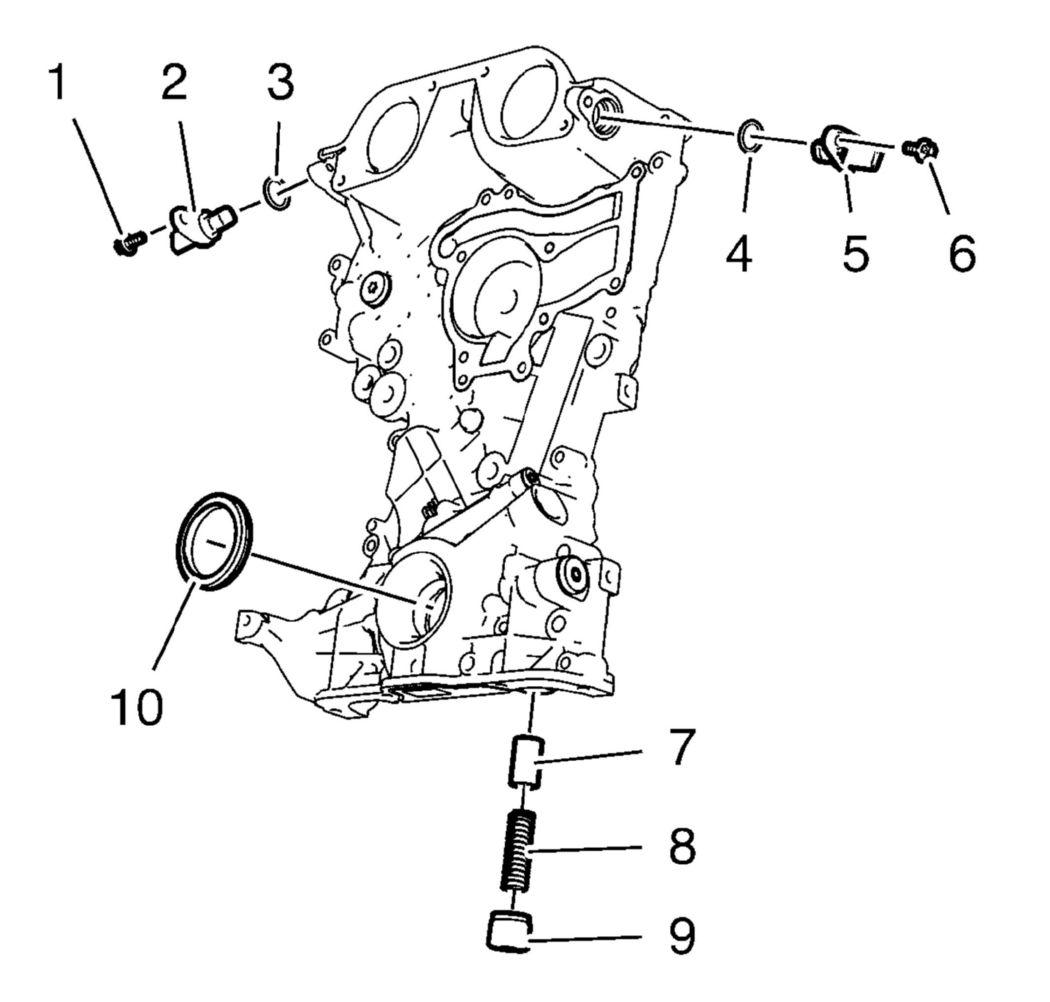

    Fig 1: Locating Engine Front Cover Components
    GM2191036Courtesy of GENERAL MOTORS COMPANY
  1. Remove the intake camshaft position sensor bolt (1).
  2. Remove the intake camshaft position sensor (2) and the seal ring (3).
  3. Remove the exhaust camshaft position sensor bolt (6).
  4. Remove the exhaust camshaft position sensor (5) and the seal ring (4).
  5. Remove the oil pressure relief valve (7, 8 and 9)
  6. Remove the crankshaft front oil seal (10).
