Instrument Panel Upper Trim Panel Cover Replacement (UDN)
WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

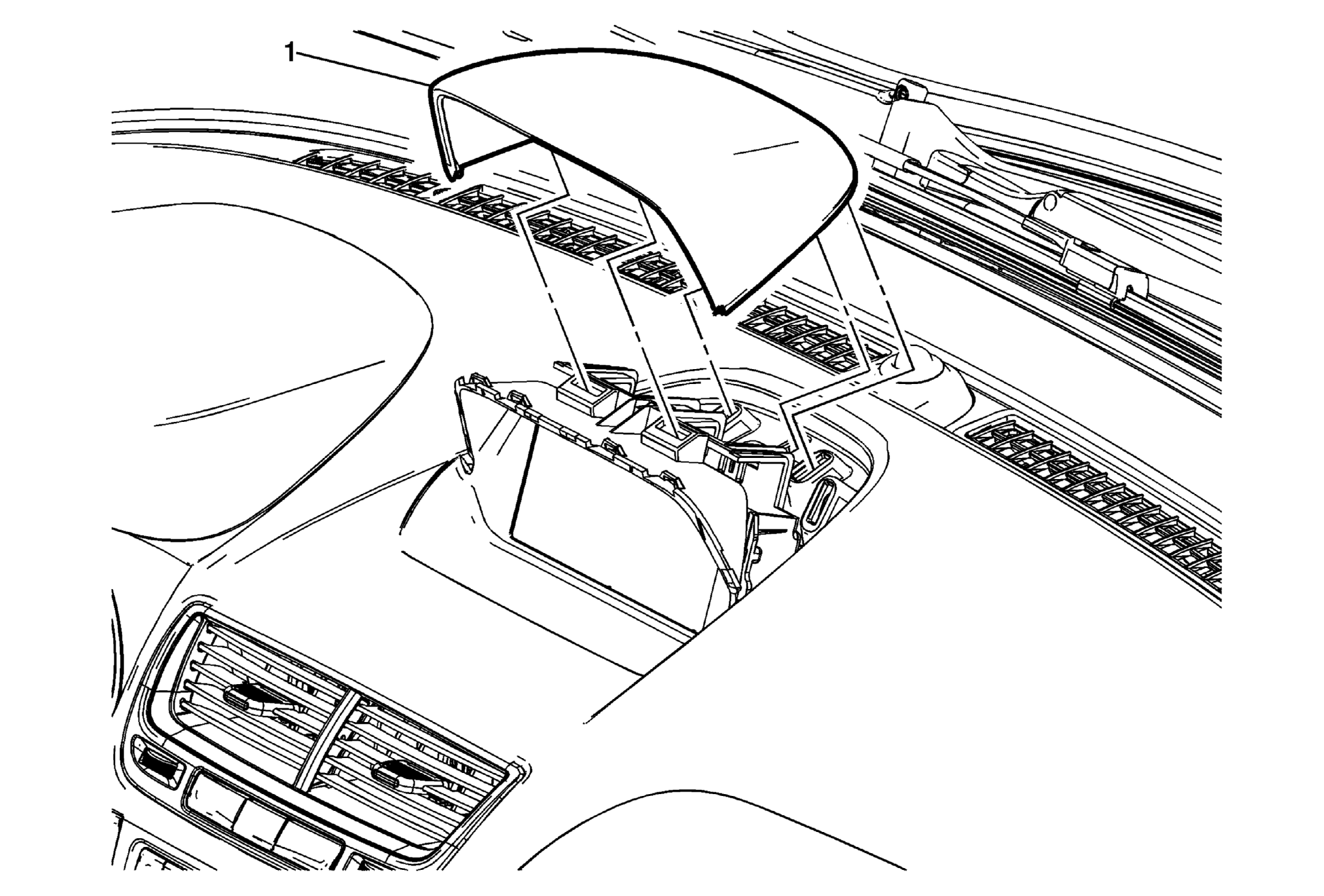

Fig 1: Instrument Panel Upper Trim Panel Cover (UDN)
Courtesy of GENERAL MOTORS COMPANY
Callout
Component Name
1
Instrument Panel Upper Trim Panel Cover Procedure Use a flat bladed plastic trim tool to aid in the removal of the cover from the instrument panel assembly.
