Removal Procedure

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the left instrument panel outer air outlet. Refer to Instrument Panel Outer Air Outlet Replacement (Encore) .
  2. Remove the left instrument panel outer trim cover. Refer to Instrument Panel Outer Trim Cover Replacement (Encore) .
  3. Remove the steering column upper trim cover. Refer to Steering Column Upper Trim Cover Replacement (Encore) .

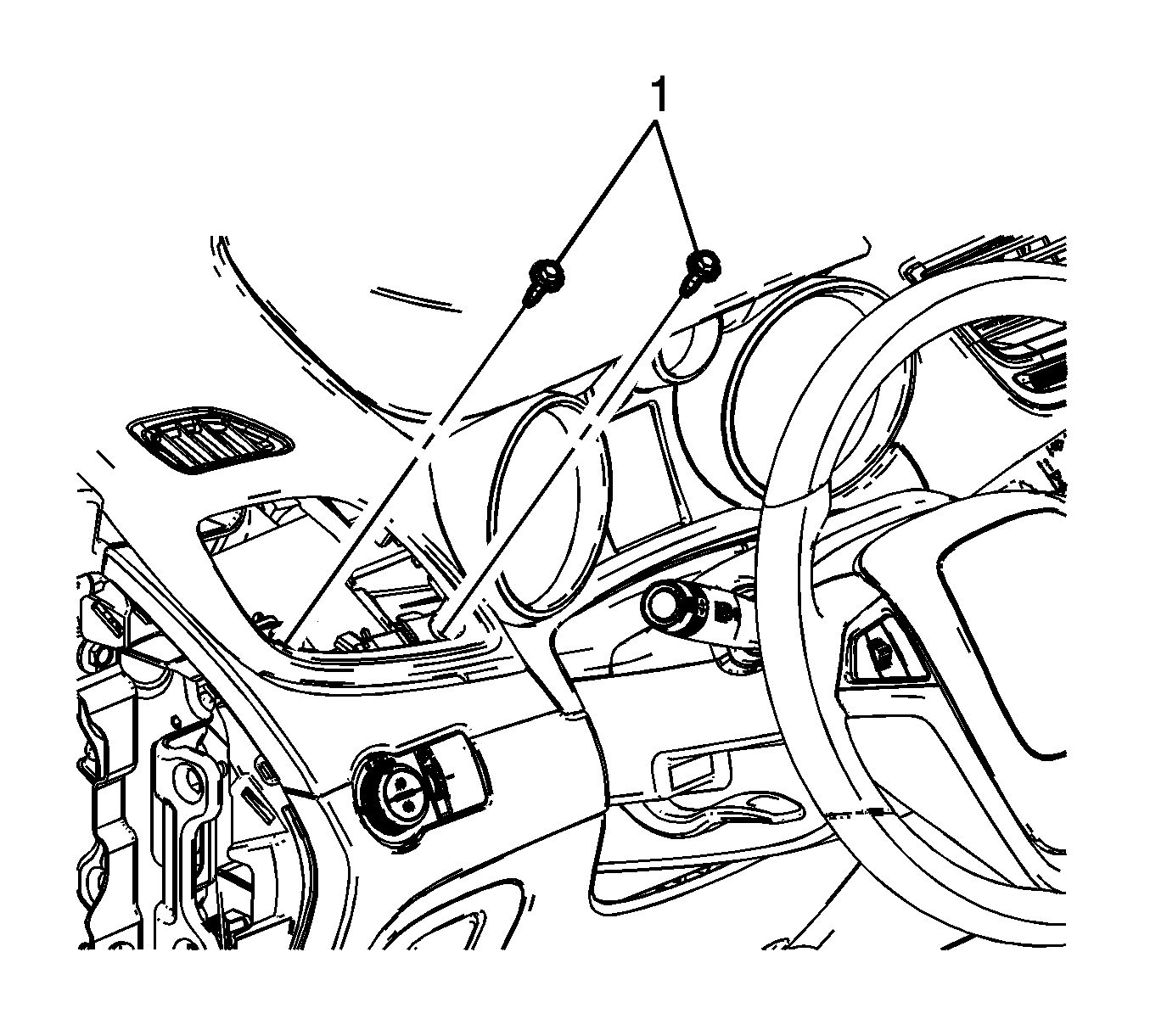

    4. Fig 1: Instrument Panel Upper Trim Panel
    GM2857551Courtesy of GENERAL MOTORS COMPANY
  4. Remove the bolts (1) to loosen the instrument panel upper trim panel.

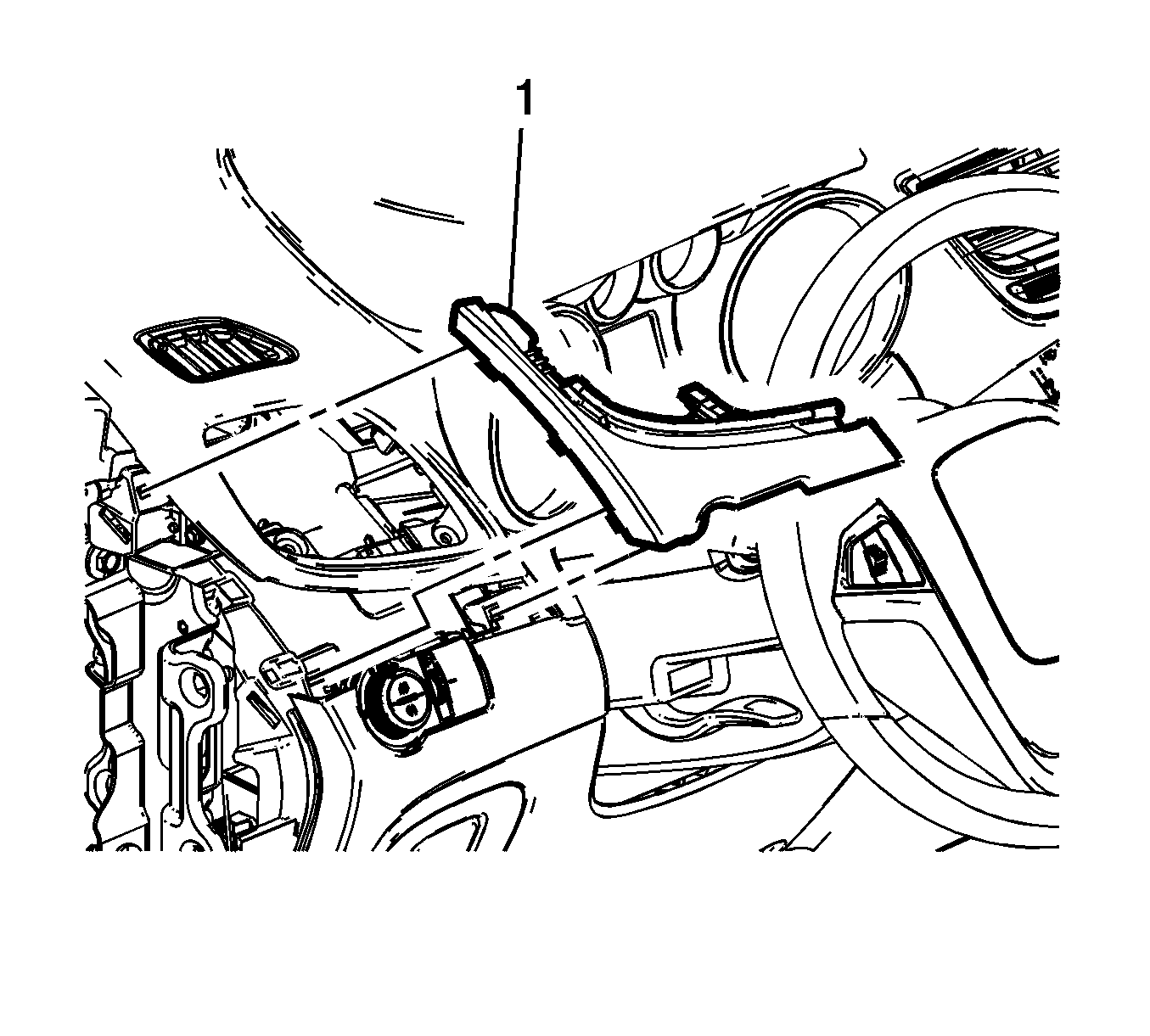

    5. Fig 2: Left Instrument Panel Retainer
    GM2857555Courtesy of GENERAL MOTORS COMPANY
  5. Use a flat bladed plastic trim tool to aid in the removal of the left instrument panel retainer (1) from the instrument panel assembly.
  6. Disconnect the electrical connection.
  7. Remove the instrument panel retainer (1) after getting the space by pulling out the instrument upper trim panel.
