Instrument Panel Knee Bolster Compartment Replacement
WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS COMPANY
| Callout |
Component Name |
| 1 |

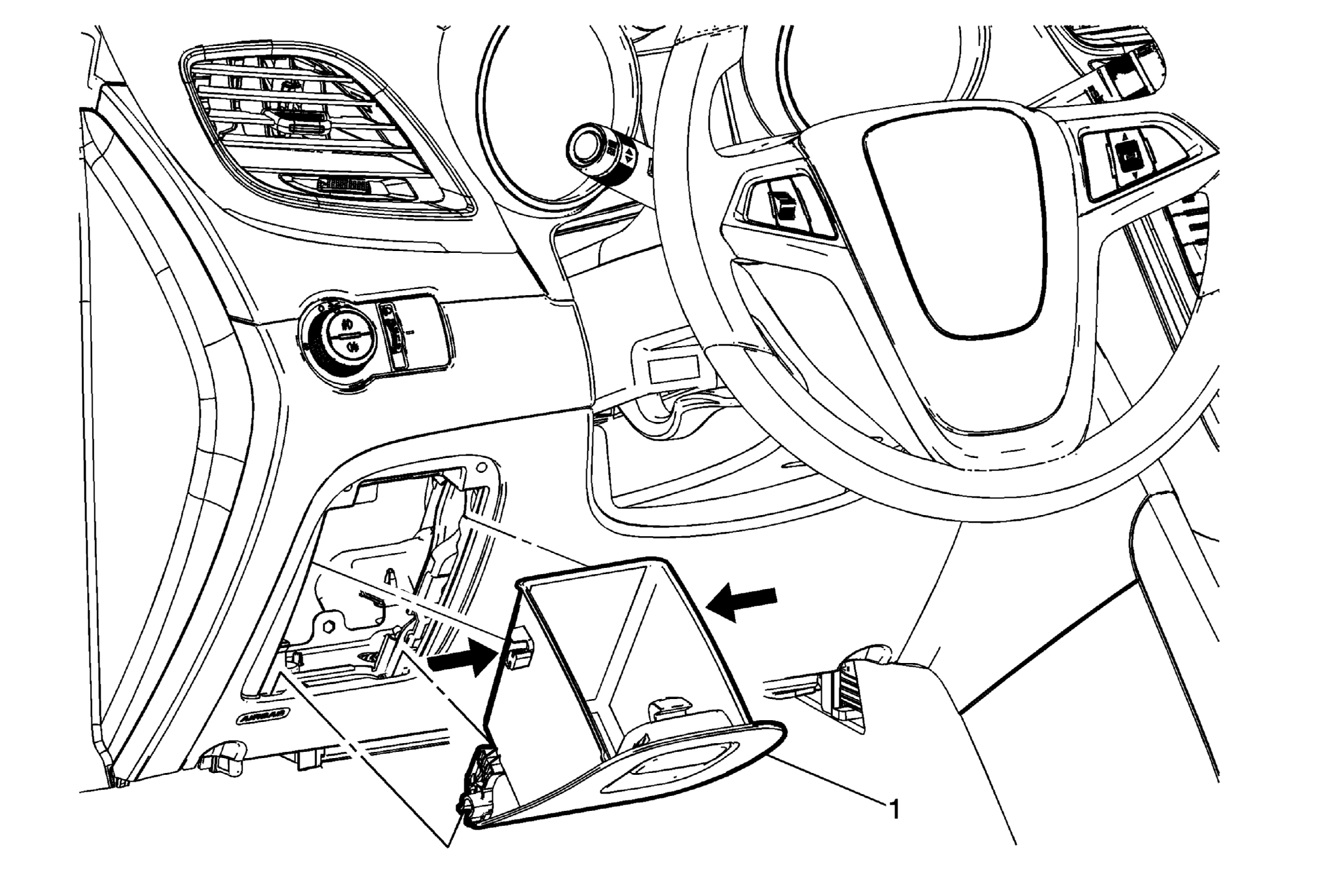

Instrument Panel Knee Bolster Compartment Procedures
- Squeeze the sides of the compartment door allowing the compartment to open past the stops.
- Release the bottom of the knee bolster compartment from the instrument panel assembly.
|
