Front Floor Console Trim Plate Replacement (Trax)

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

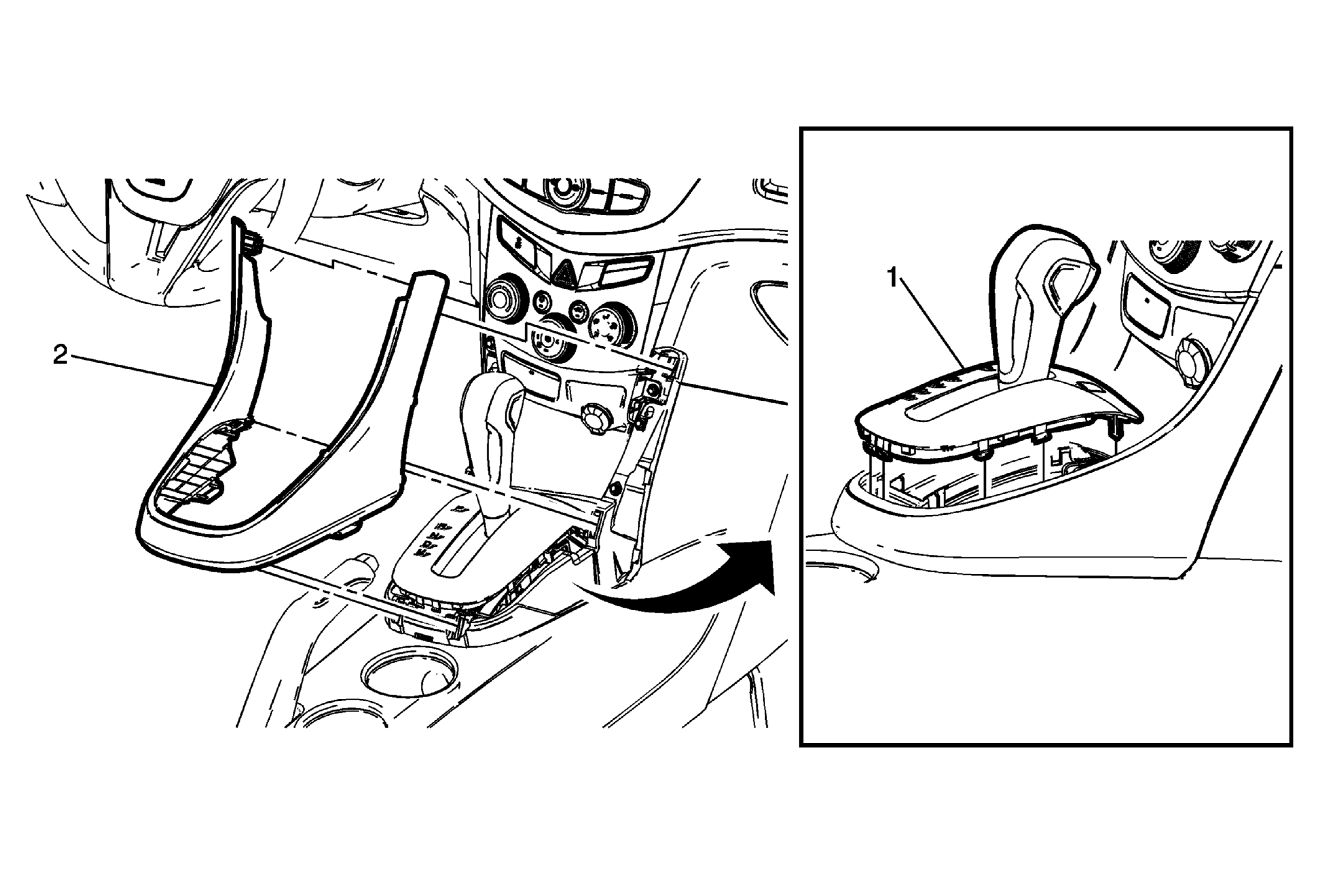

Fig 1: Front Floor Console Trim Plate (Trax)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Automatic Transmission Control Indicator Bezel Procedures Use a flat bladed plastic trim tool to aid in the release of the indicator bezel from the transmission control assembly.
2	Front Floor Console Trim Plate Procedure Use a flat bladed plastic trim tool to aid in the removal of the trim plate from the front floor console assembly.

Callout

Component Name

Automatic Transmission Control Indicator Bezel

Procedures

Use a flat bladed plastic trim tool to aid in the release of the indicator bezel from the transmission control assembly.

Front Floor Console Trim Plate
Procedure
Use a flat bladed plastic trim tool to aid in the removal of the trim plate from the front floor console assembly.
