Front Floor Console Cup Holder Replacement (Encore)
WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

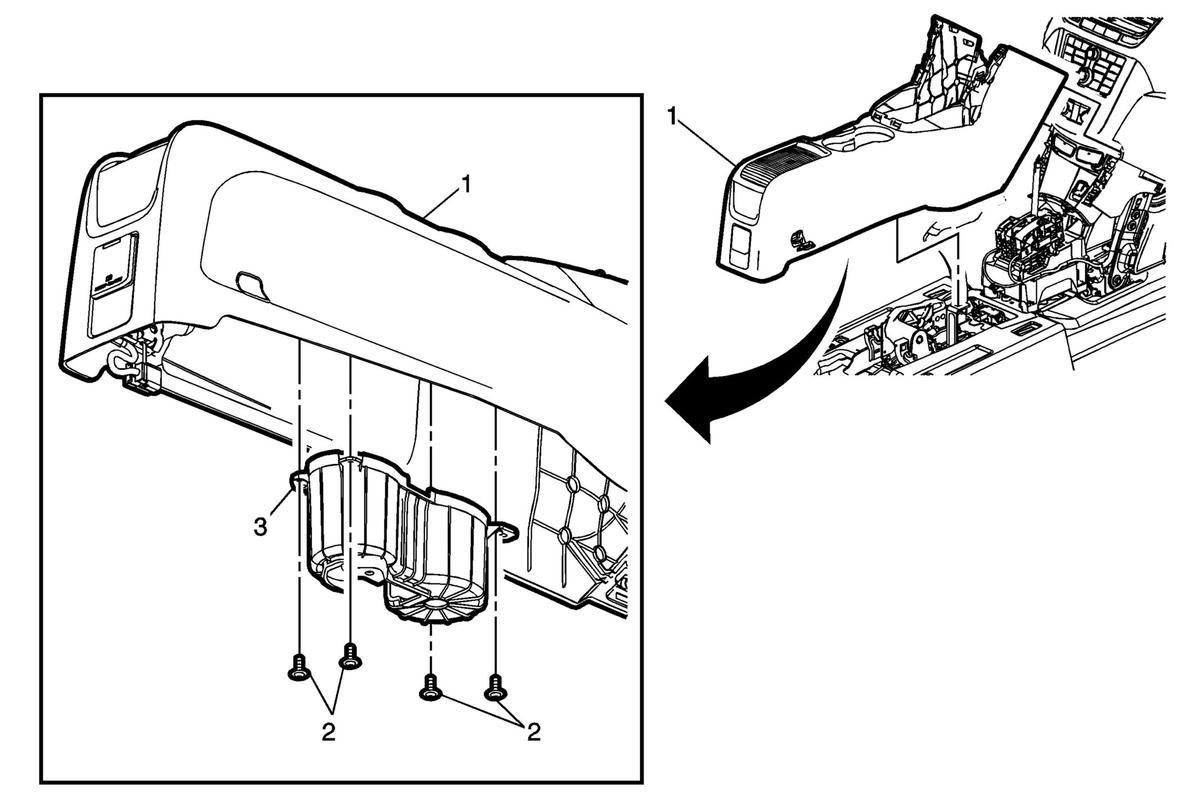

| Callout | Component Name |
|---|---|
| 1 | Front Floor Console Refer to Front Floor Console Replacement (Encore) . |
| 2 | Front Floor Console Cup Holder Fastener (Qty: 4)
CAUTION:
Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in) |
| 3 | Front Floor Console Cup Holder |
