Front Floor Console Bracket Replacement (Encore)

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

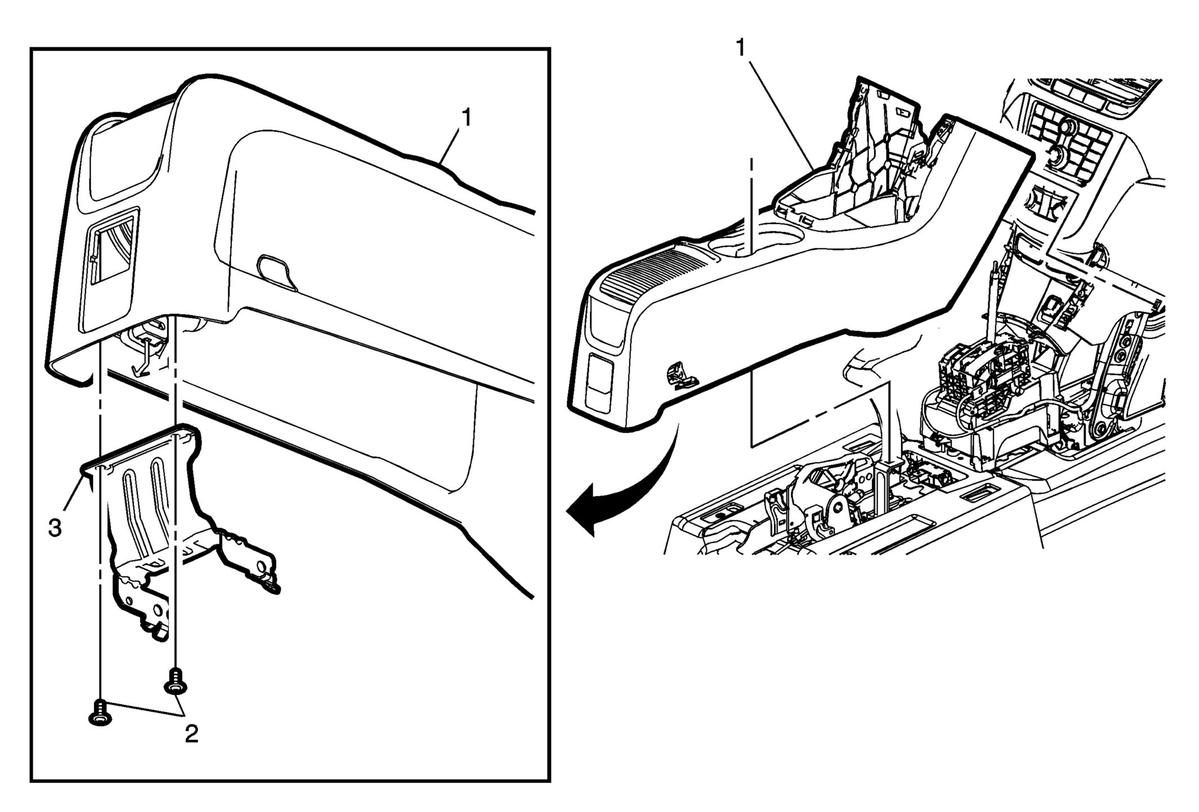

Fig 1: Front Floor Console Bracket (Encore)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the front floor console wiring harness. Refer to Front Floor Console Wiring Harness Replacement (Encore) . Remove the accessory power receptacle. Refer to Accessory Power Receptacle Replacement .
1	Front Floor Console Refer to Front Floor Console Replacement (Encore) .
2	Front Floor Console Bracket Fasteners (Qty: 2) CAUTION: Refer to Fastener Caution .
3	Front Floor Console Bracket
