Mass Airflow Sensor Replacement
WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

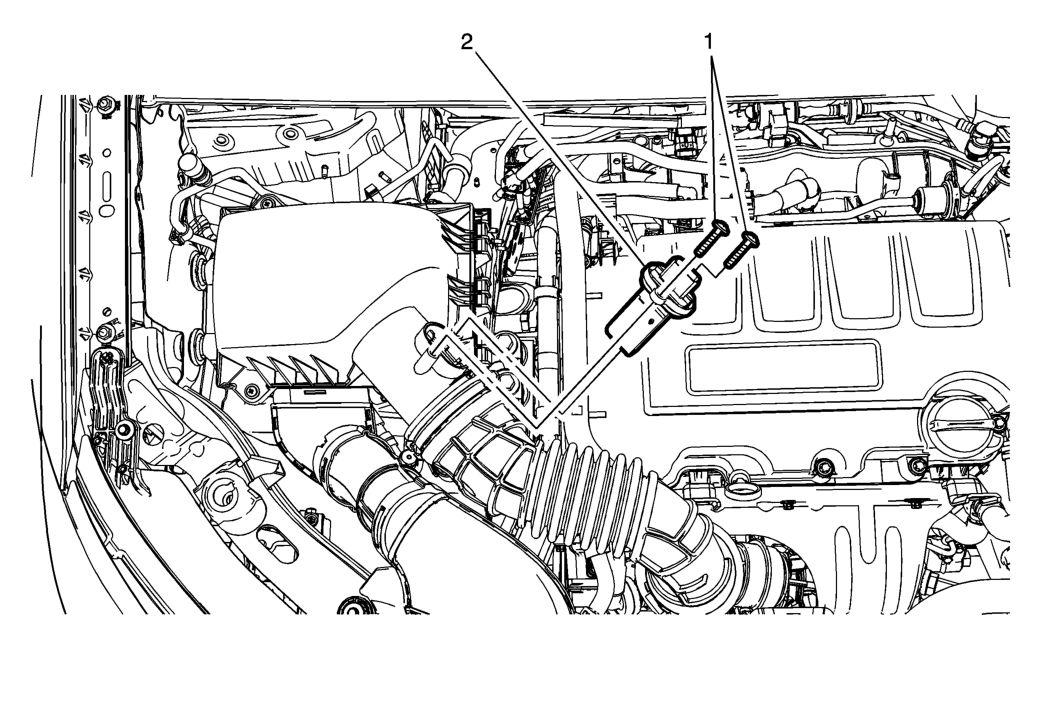

| Callout | Component Name |
|---|---|
| 1 | Mass Airflow Sensor Fasteners (Qty 2)
CAUTION:
Refer to Fastener Caution . Tighten 5 N.m (44 lb in) |
| 2 | Mass Airflow Sensor Procedure Disconnect the mass airflow sensor electrical connector. |
