Manifold Absolute Pressure Sensor Replacement
WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

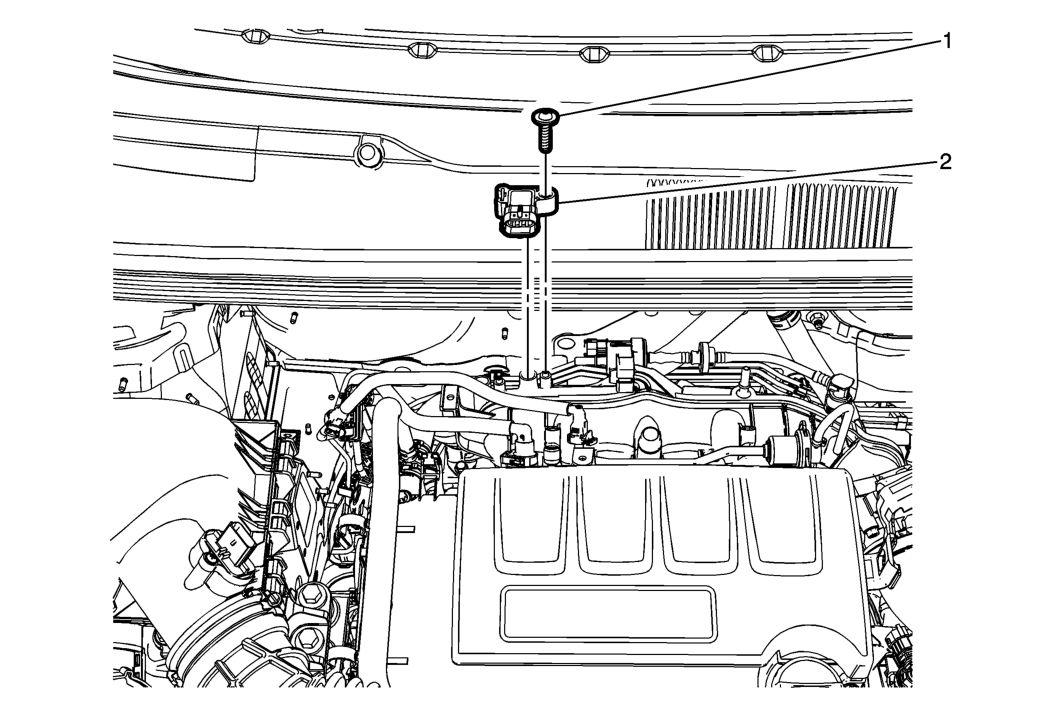

| Callout | Component Name |
|---|---|
| 1 | Manifold Absolute Pressure Sensor Fastener
CAUTION:
Refer to Fastener Caution . Tighten 10 N.m (89 lb in) |
| 2 | Manifold Absolute Pressure Sensor Procedure Disconnect the manifold absolute pressure sensor electrical connector. |
