Intake Air Pressure and Temperature Sensor Replacement
WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

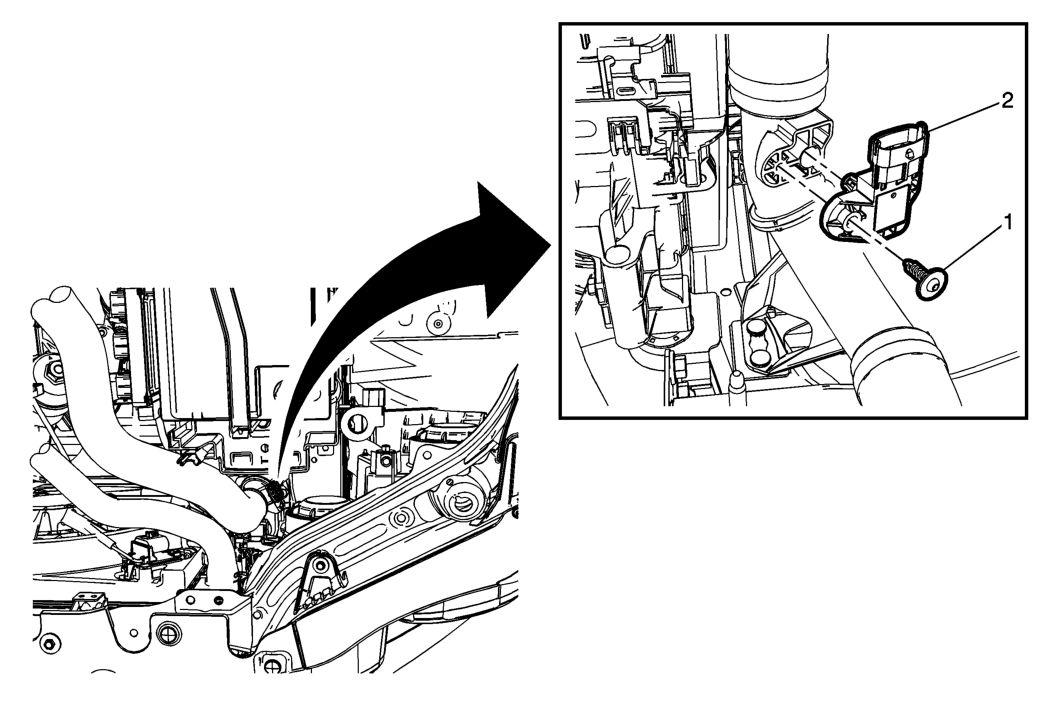

| Callout | Component Name |
|---|---|
| Preliminary Procedure Front Compartment Front Center Insulator Replacement |
|
| 1 | Intake Air Pressure and Temperature Sensor Fastener
CAUTION:
Refer to Fastener Caution . |
| 2 | Intake Air Pressure and Temperature Sensor Procedure Disconnect the intake air pressure and temperature sensor electrical connector. |
