Installation Procedure
WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

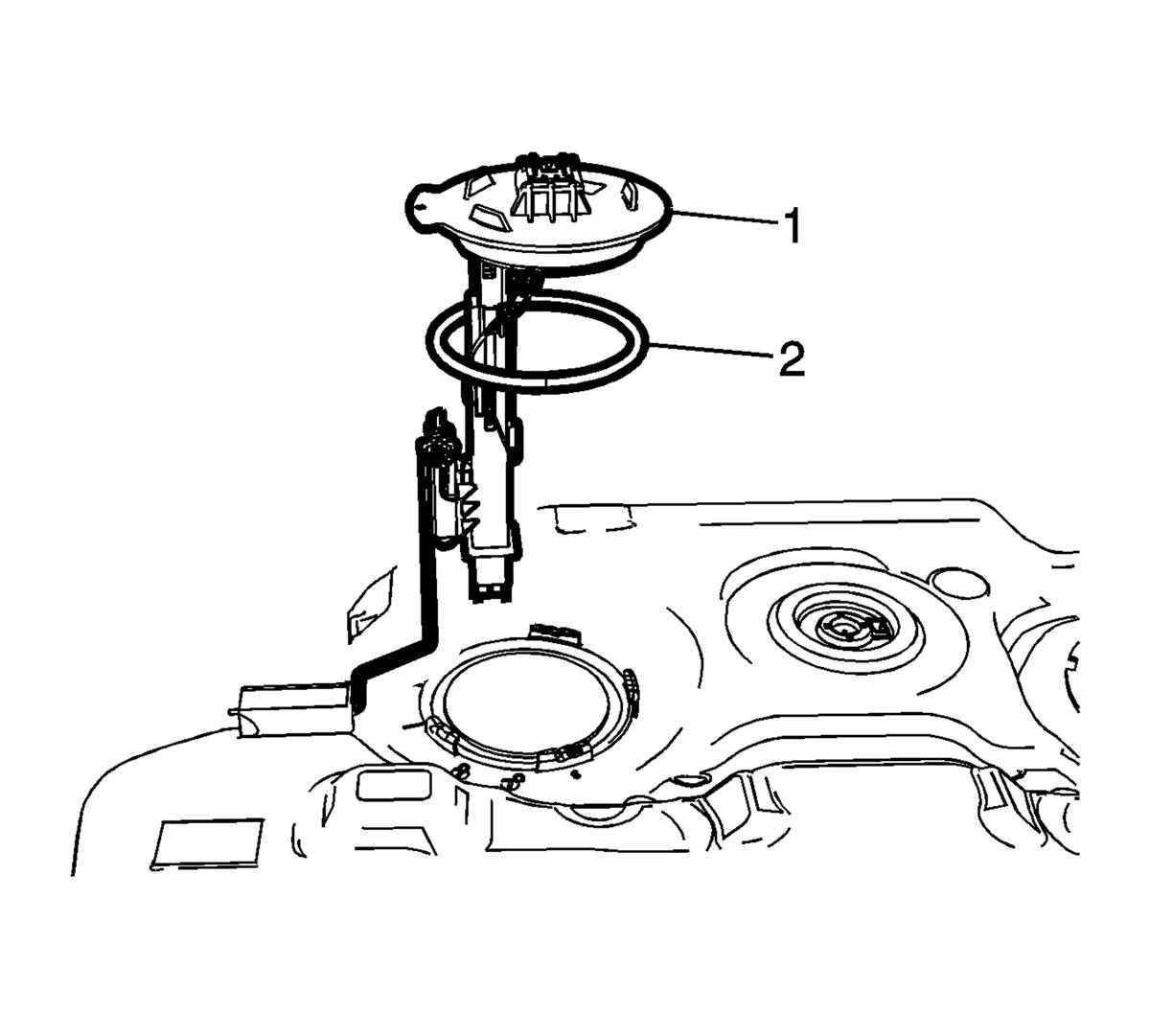

- Install a NEW fuel sender O-ring gasket (2) to the fuel sender (1).

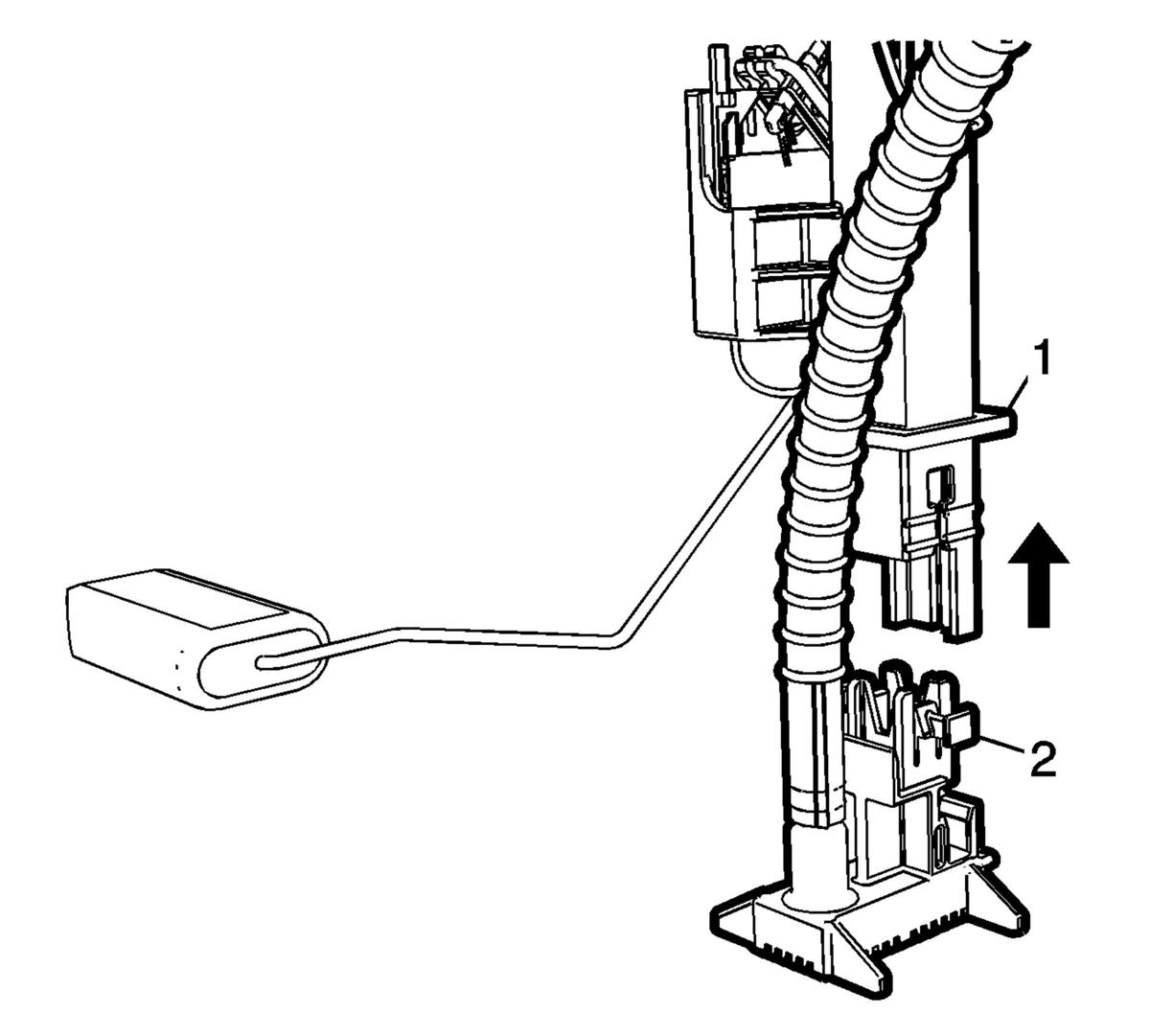

- Lower the fuel sender (1) into the fuel tank while connecting the fuel tank fuel pump module fuel pickup (2) to the fuel sender (1).

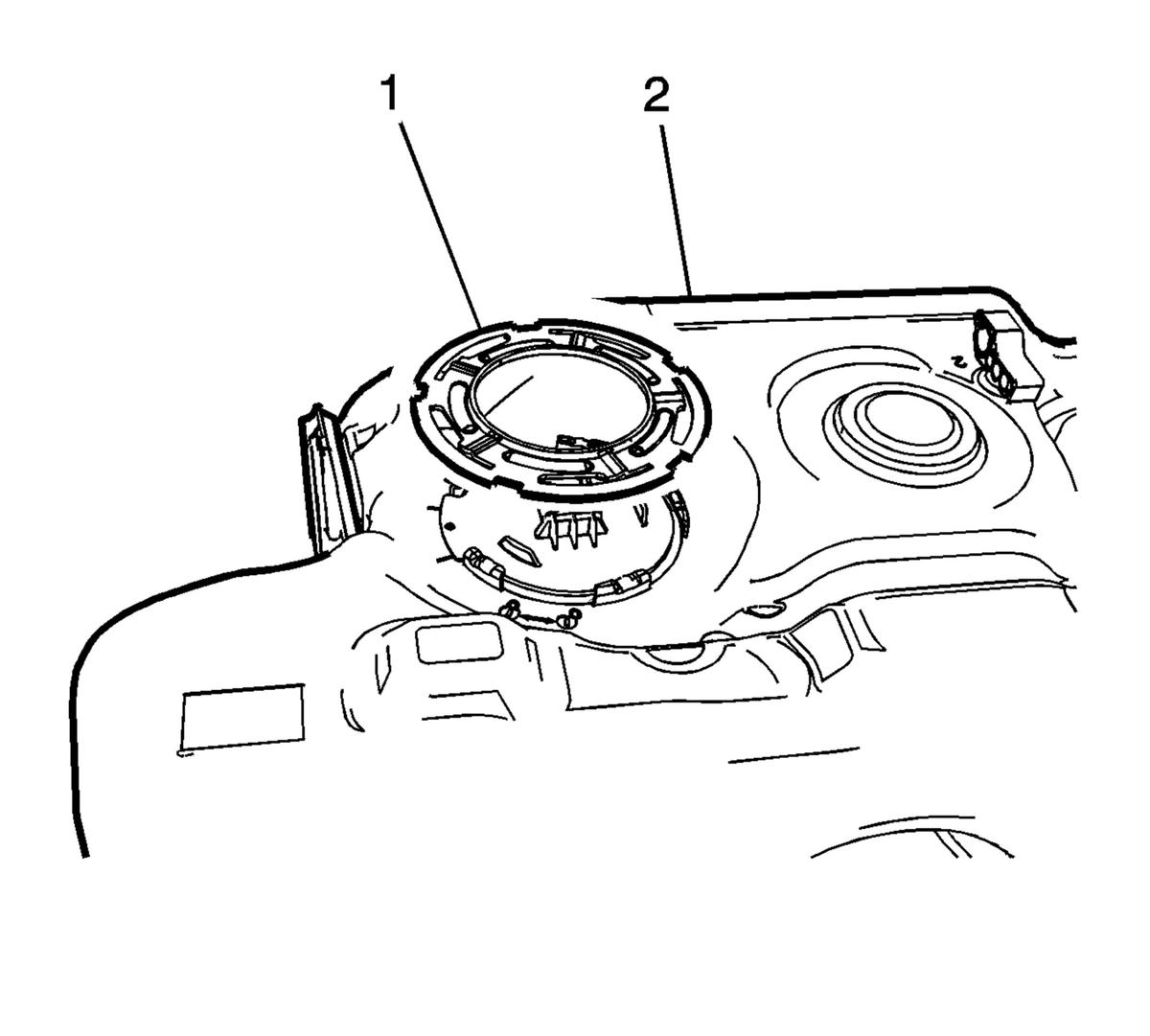

- Install the fuel sender lock ring (1) to the fuel tank (2).
- Install the EN-48482 Fuel Sender Lock Ring Wrench to the fuel sender lock ring (1).
- Using the EN-48482 Fuel Sender Lock Ring Wrench and a long breaker-bar, rotate the fuel sender lock ring (1) in a clockwise direction in order to lock the lock ring.
- Connect the fuel tank sender wiring harness electrical connector.
- Install the fuel tank. Refer to Fuel Tank Replacement.
