Installation Procedure
WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

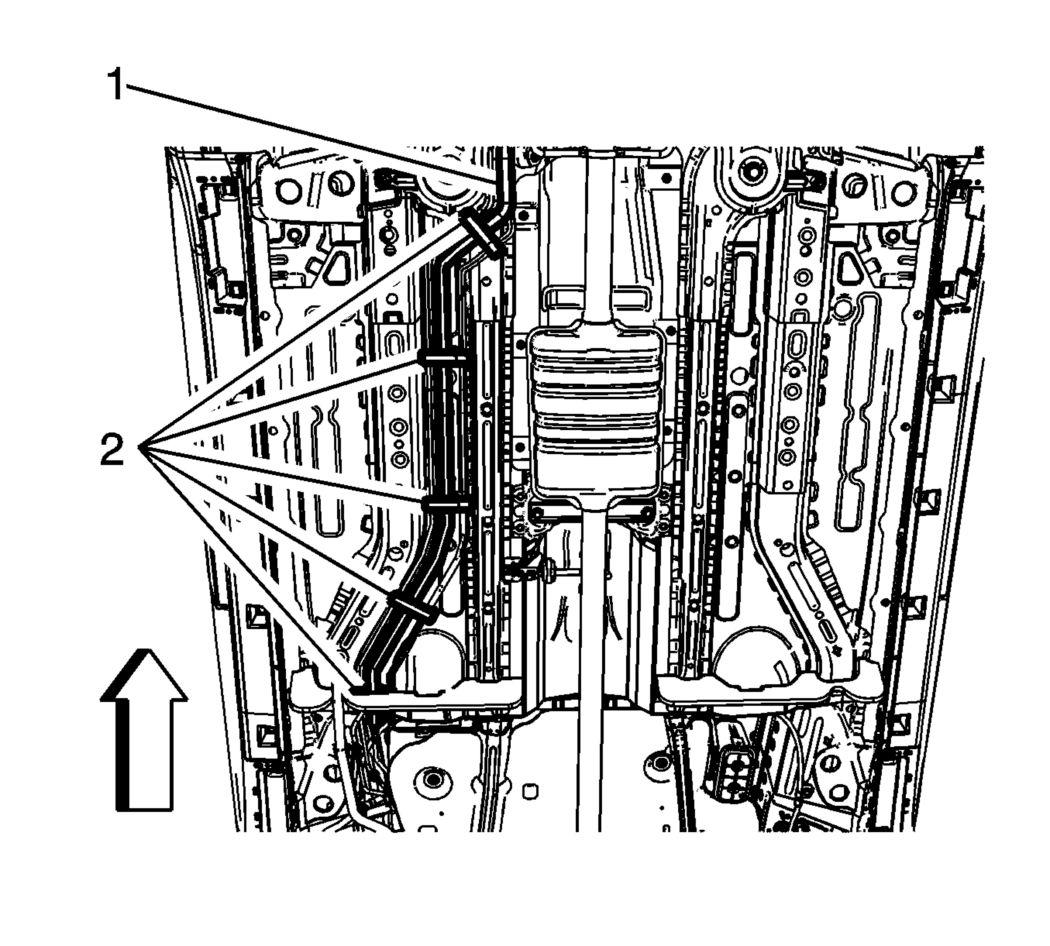

- Install the fuel feed pipe (1) to the vehicle.
- Install the fuel feed pipe (1) to the retainers (2).
- Install the underbody sill shield.
- Install the fuel feed pipe (1) to the fuel feed pipe at the tank. Refer to Plastic Collar Quick Connect Fitting Service .
- Lower the vehicle.

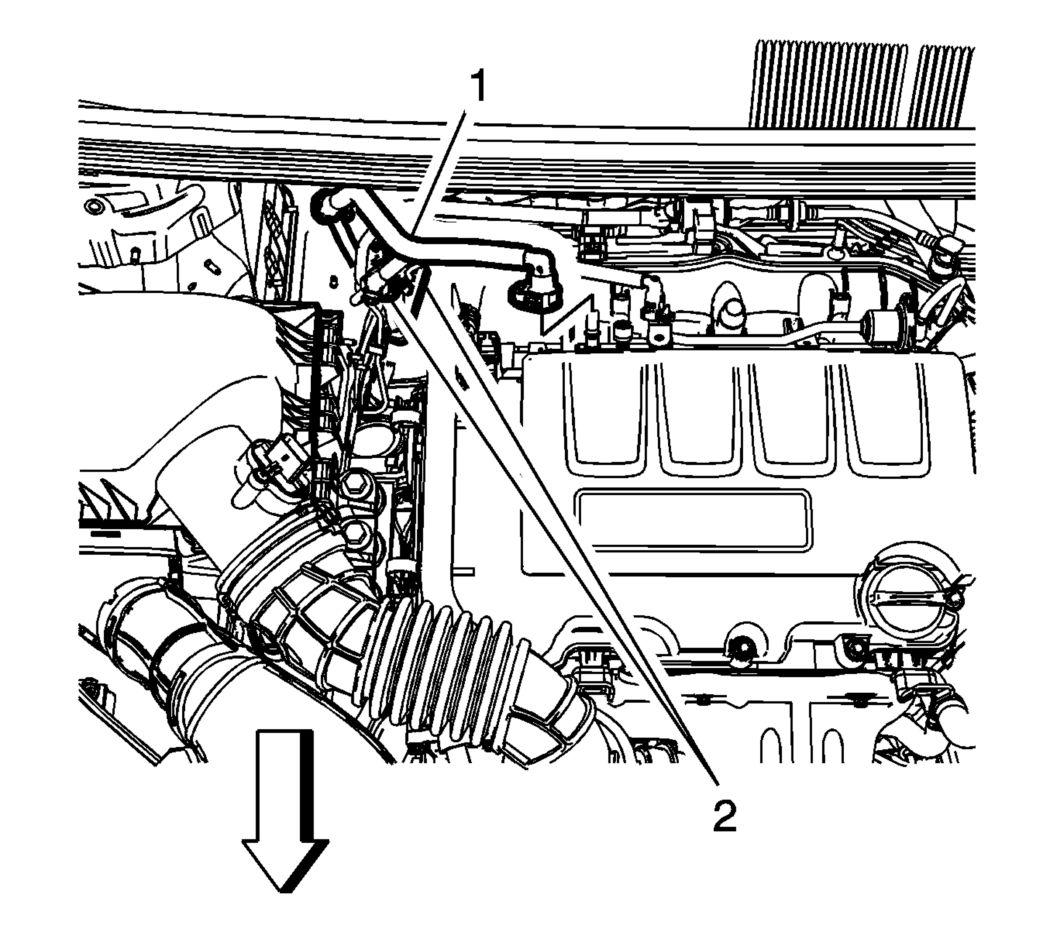

- Install the fuel feed pipe (1) to the retainers (2).
- Install the fuel feed pipe (1) to the fuel rail. Refer to Plastic Collar Quick Connect Fitting Service .
- Install the fuel pressure sensor - fuel feed pipe. Refer to Fuel Pressure Sensor Replacement - Fuel Feed Pipe .
