Air Cleaner Element Replacement

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

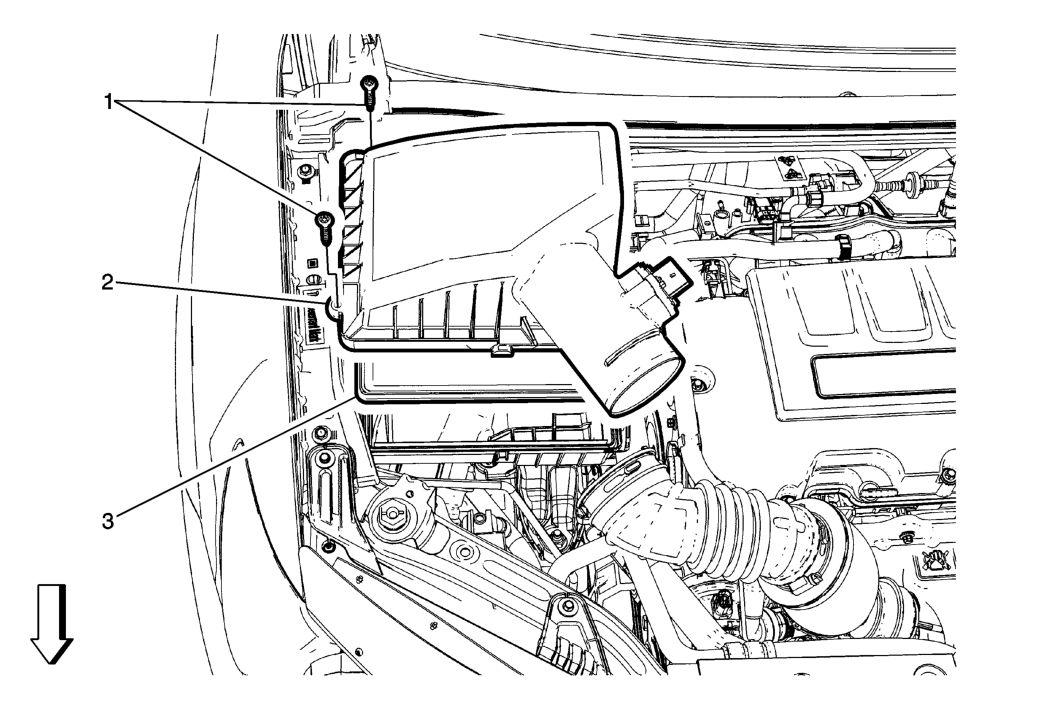

Fig 1: Air Cleaner Element

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Disconnect the mass airflow sensor electrical connector. Remove the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement .
1	Air Cleaner Housing Fasteners (Qty: 2)
2	Air Cleaner Housing
3	Air Cleaner Element
