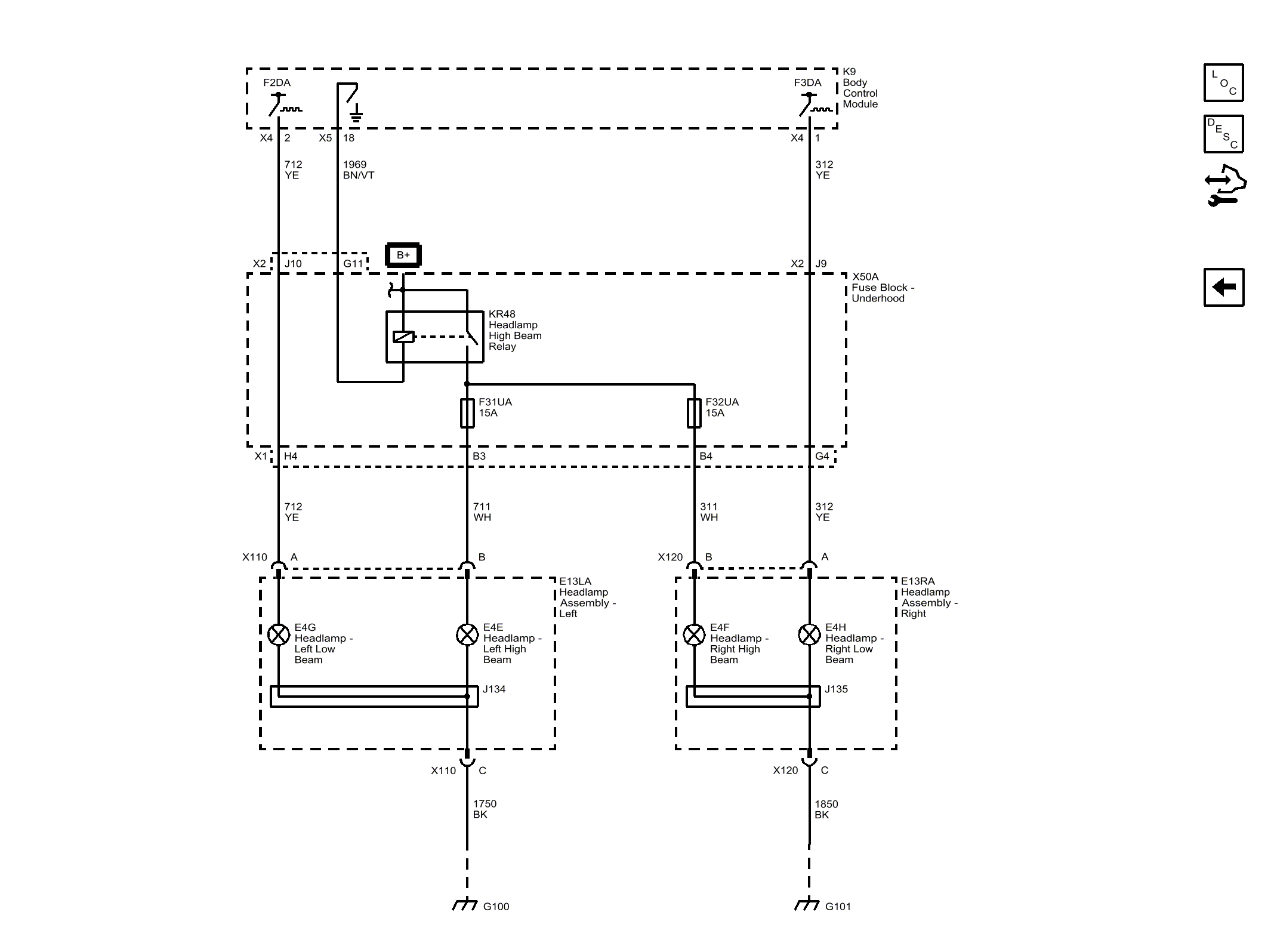

Headlights/Daytime Running Lights (DRL) Wiring Schematics (Encore): HeadLamps

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.
