Stop and Tail Lamp Bulb Replacement (Trax)

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

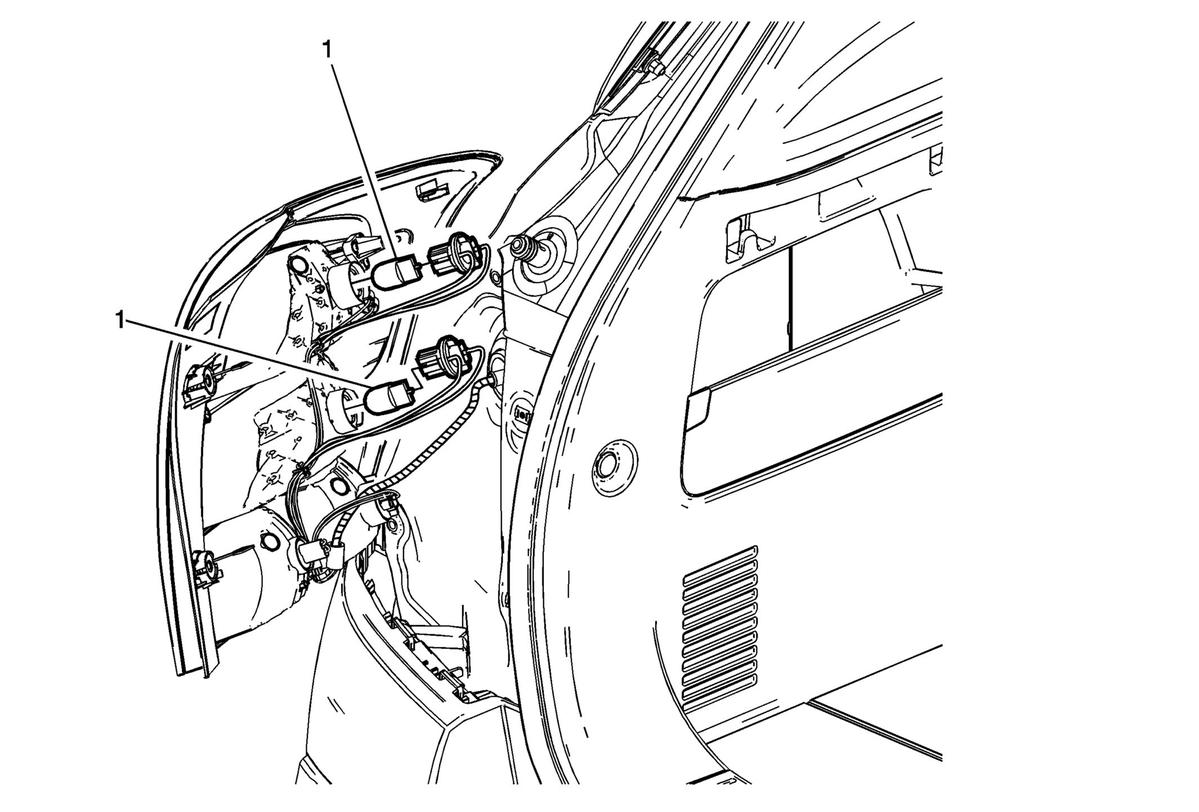

Fig 1: Stop and Tail Lamp Bulb (Trax)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Reposition and support the tail lamp. Refer to, Tail Lamp Replacement (Trax) .
1	Stop and Tail Lamp Bulb (Qty 2) Procedure Rotate the stop and tail lamp socket counter-clockwise and remove from the tail lamp. Pull the stop and tail lamp bulb straight out from the stop and tail lamp socket.

Callout

Component Name

Preliminary Procedure
Reposition and support the tail lamp. Refer to, Tail Lamp Replacement (Trax) .

Stop and Tail Lamp Bulb (Qty 2)

Procedure

Rotate the stop and tail lamp socket counter-clockwise and remove from the tail lamp.
Pull the stop and tail lamp bulb straight out from the stop and tail lamp socket.
