Stop and Tail Lamp Bulb Replacement (Encore)

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

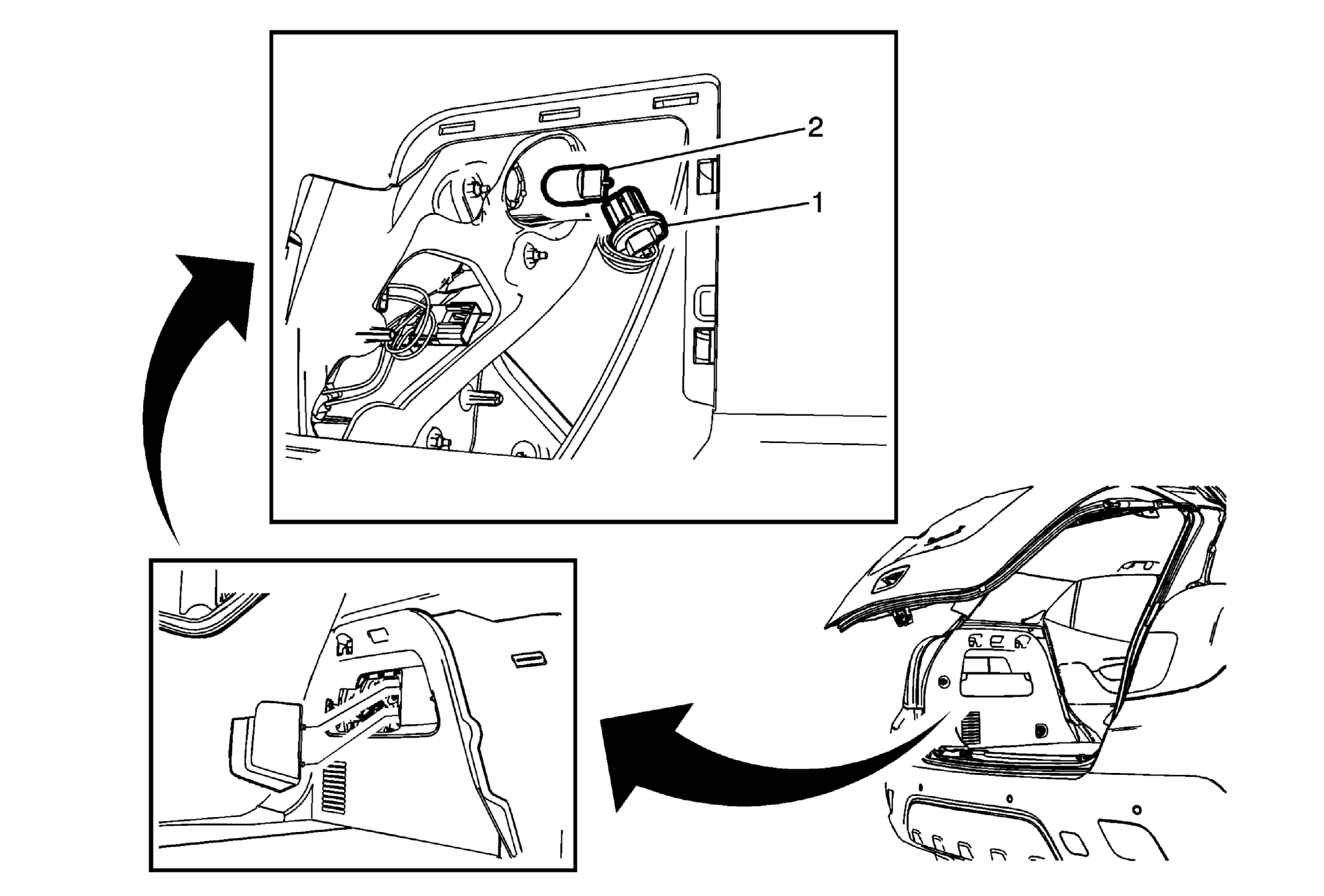

Fig 1: Stop And Tail Lamp Bulb (Encore)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the quarter stowage pocket door. Refer to, Quarter Stowage Pocket Door Replacement (Left Side)Quarter Stowage Pocket Door Replacement (Right Side) . Open the tail lamp access cover.
1	Stop and Tail Lamp Socket Procedure Rotate the stop and tail lamp socket counter-clockwise and remove the socket from the lamp housing.
2	Stop and Tail Lamp Bulb Procedure Hold the stop and tail lamp socket, pull the stop and tail lamp bulb straight from the stop and tail lamp socket.

Callout

Component Name

Preliminary Procedure

Remove the quarter stowage pocket door. Refer to, Quarter Stowage Pocket Door Replacement (Left Side)Quarter Stowage Pocket Door Replacement (Right Side) .
Open the tail lamp access cover.

Stop and Tail Lamp Socket
Procedure
Rotate the stop and tail lamp socket counter-clockwise and remove the socket from the lamp housing.

Stop and Tail Lamp Bulb
Procedure
Hold the stop and tail lamp socket, pull the stop and tail lamp bulb straight from the stop and tail lamp socket.
