Rear Turn Signal Lamp Bulb Replacement (Encore)

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

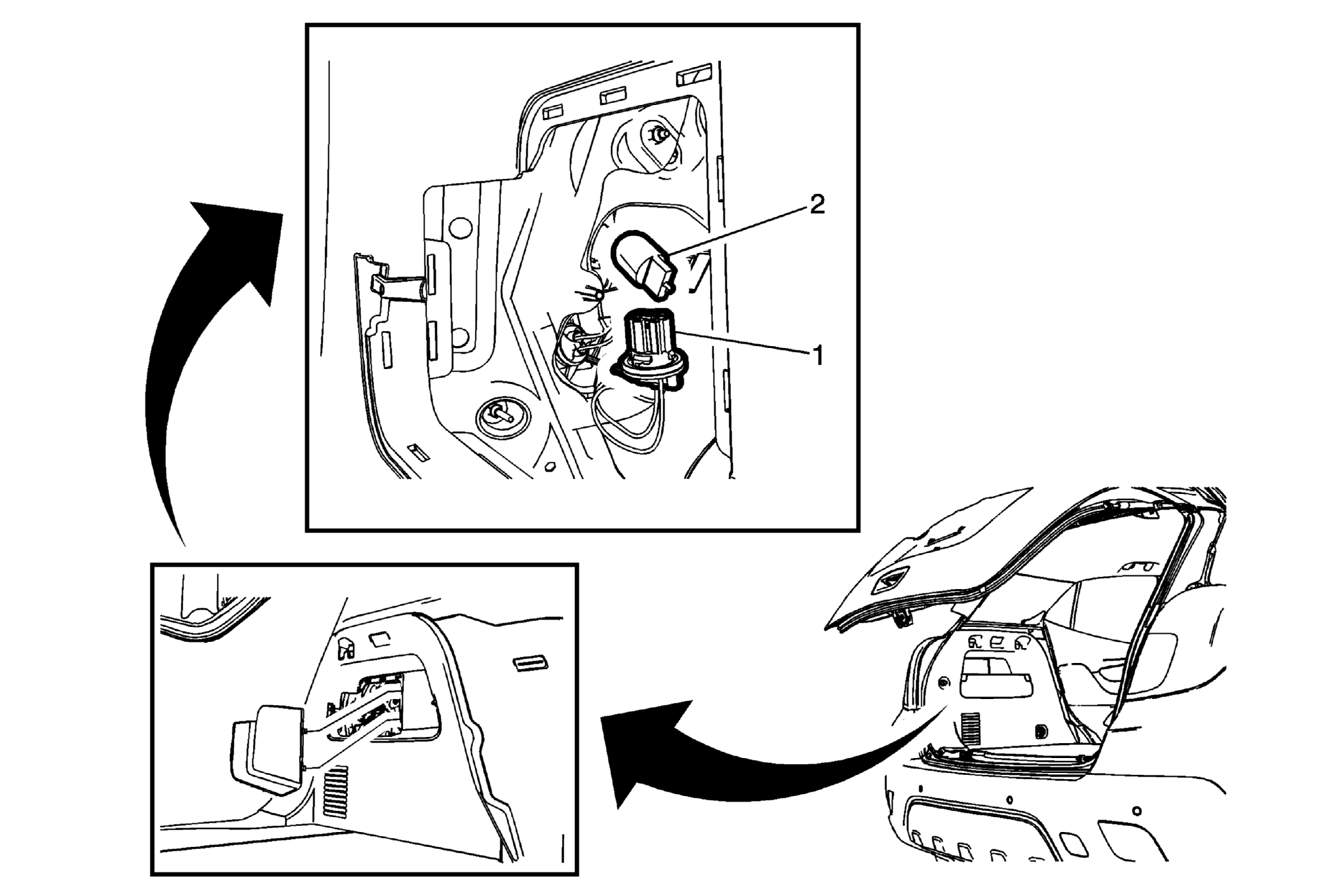

Fig 1: Rear Turn Signal Lamp Bulb (Encore)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the quarter stowage pocket door. Refer to Quarter Stowage Pocket Door Replacement (Left Side)Quarter Stowage Pocket Door Replacement (Right Side) . Open the tail light access cover.
1	Rear Turn Signal Lamp Socket Procedure Rotate the rear turn signal lamp socket a quarter turn counterclockwise and remove from the lamp assembly.
2	Rear Turn Signal Lamp Bulb Procedure Hold the rear turn signal lamp socket and pull the bulb straight out from rear turn signal socket.

Callout

Component Name

Preliminary Procedure

Remove the quarter stowage pocket door. Refer to Quarter Stowage Pocket Door Replacement (Left Side)Quarter Stowage Pocket Door Replacement (Right Side) .
Open the tail light access cover.

Rear Turn Signal Lamp Socket
Procedure
Rotate the rear turn signal lamp socket a quarter turn counterclockwise and remove from the lamp assembly.

Rear Turn Signal Lamp Bulb
Procedure
Hold the rear turn signal lamp socket and pull the bulb straight out from rear turn signal socket.
