Rear License Plate Lamp Bulb Replacement
WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

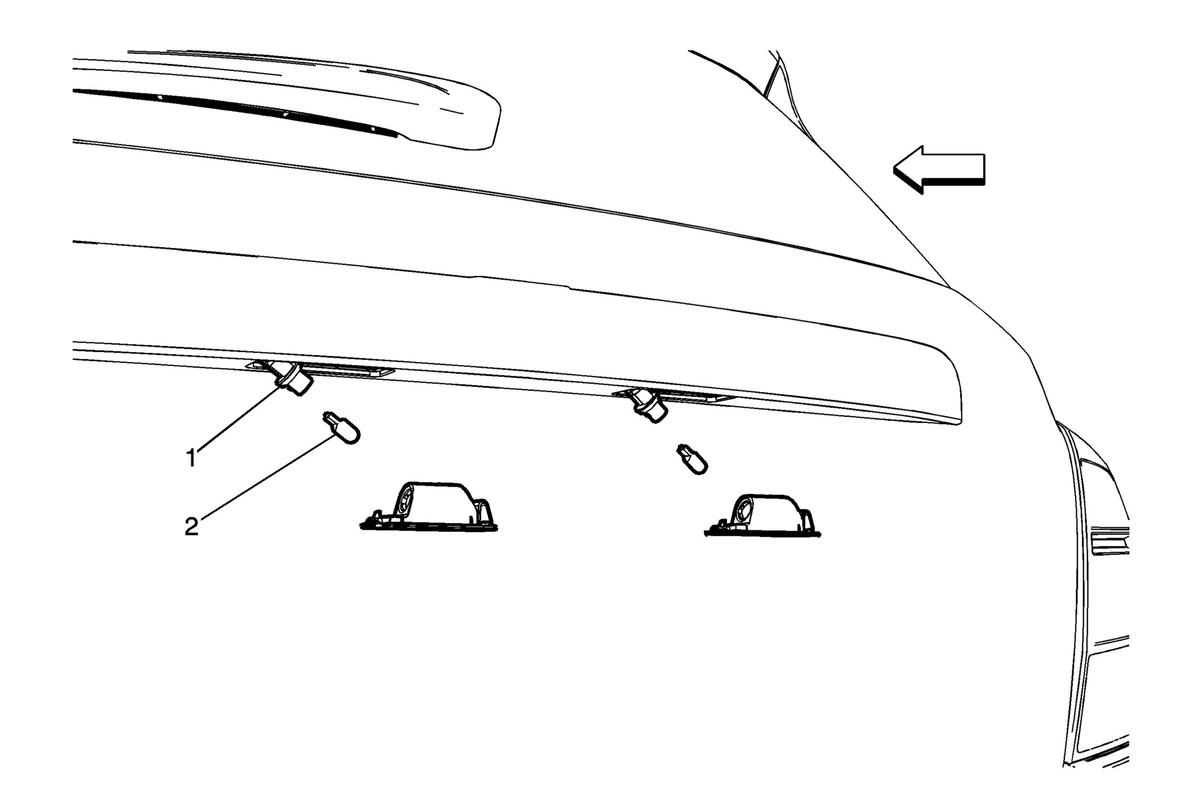

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the rear license plate lamp housing. Refer to Rear License Plate Lamp Replacement . |
|
| 1 | License Plate Lamp Socket Procedure Rotate the electrical lamp socket a quarter turn counter-clockwise and remove from the lamp housing. |
| 2 | License Plate Lamp Bulb Procedure Hold the socket and pull the bulb straight out of the electrical lamp socket. |
