Parking and Turn Signal Lamp Bulb Replacement (Left Hand)

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

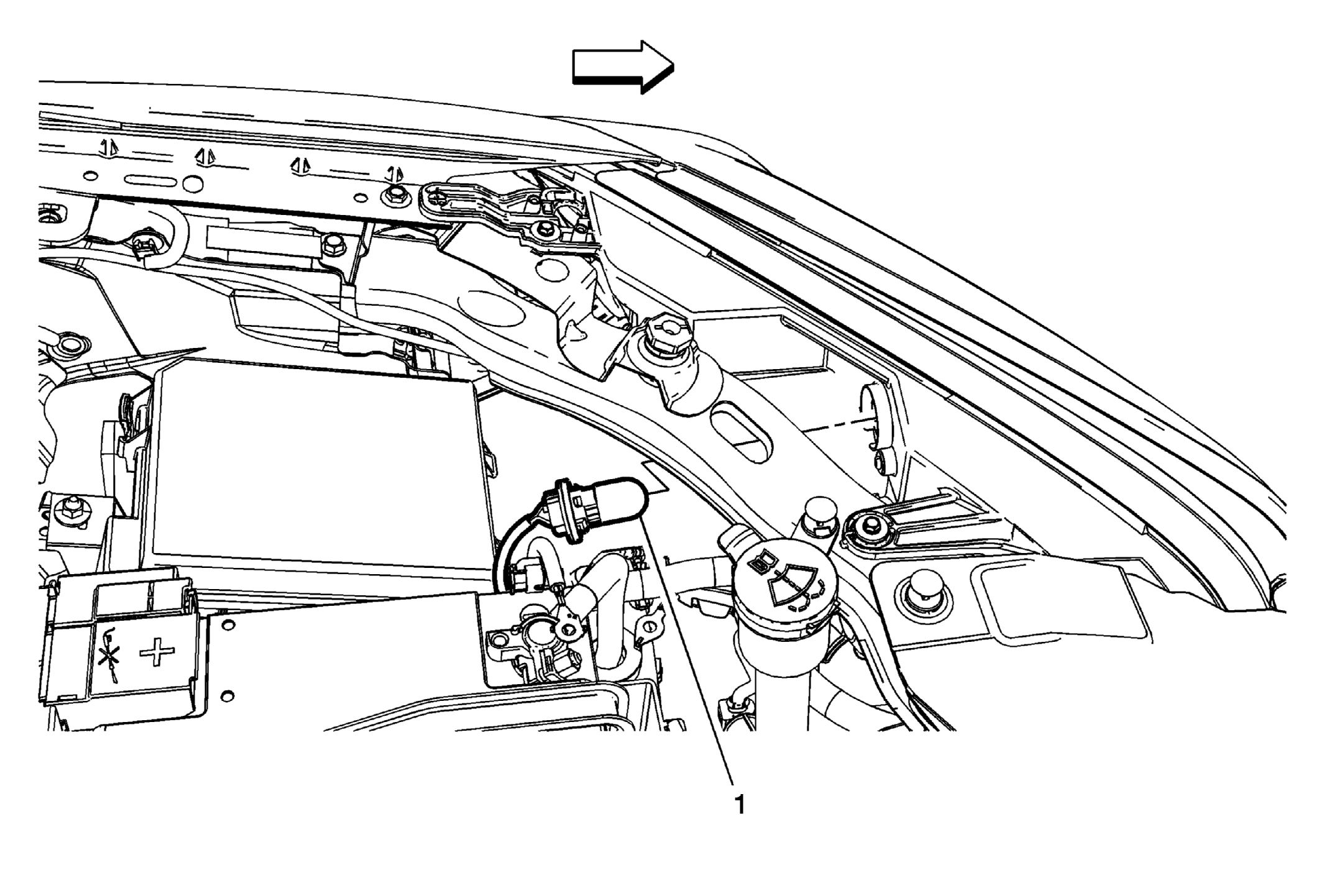

Fig 1: Parking and Turn Signal Lamp Bulb (Left Hand)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Open and support the hood assembly.
1	Parking and Turn Signal Lamp Bulb Socket Procedure Rotate the park and turn signal bulb socket counter-clockwise and remove from the headlamp housing. Hold the park and turn signal lamp socket, pull the park and turn signal bulb out of the socket.
