Instrument Panel Flood Lamp Replacement - Left Side (Encore)
WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the instrument panel retainer - left side. Refer to Instrument Panel Retainer Replacement - Left Side (Encore) . |
|

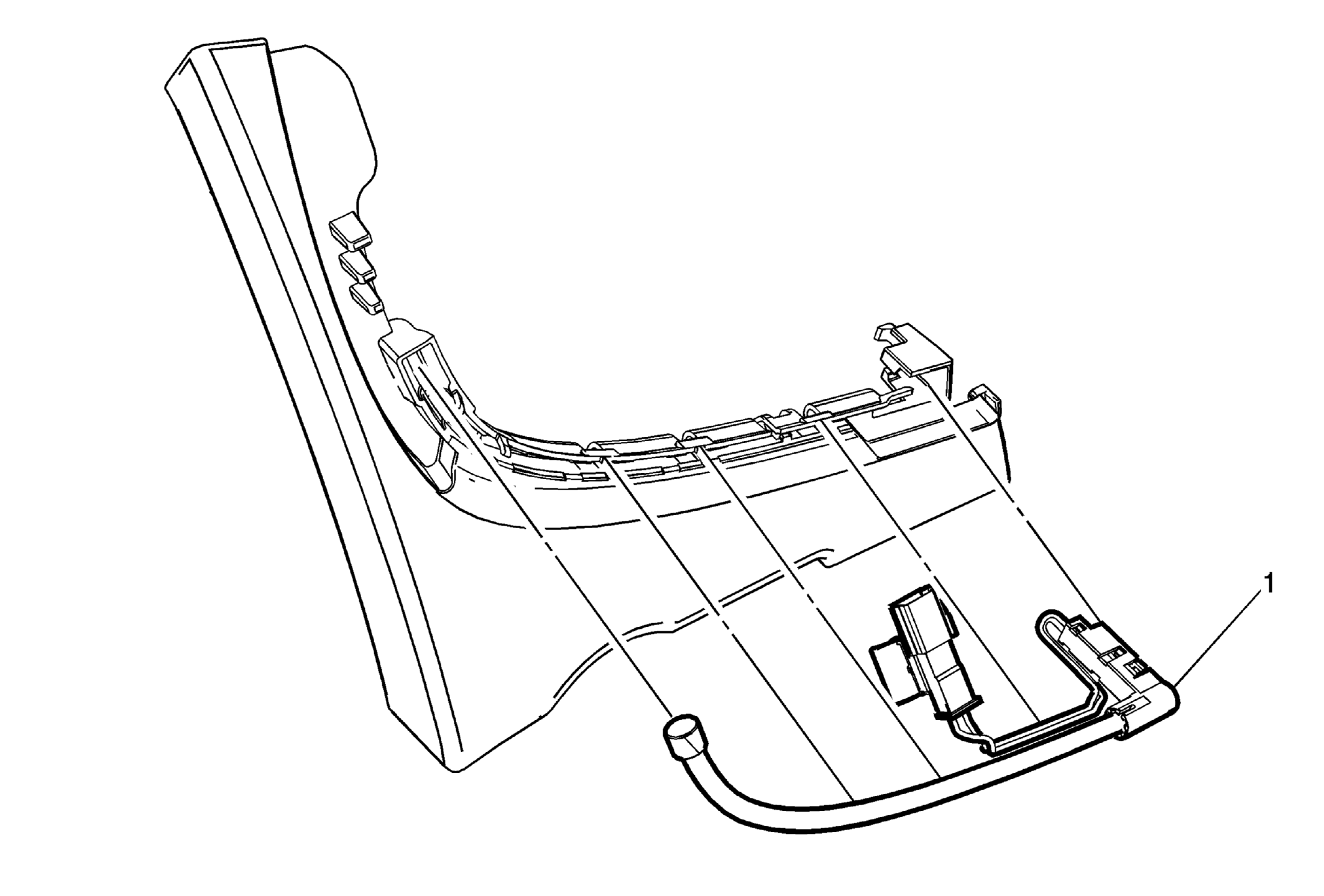

| 1 | Instrument Panel Flood Lamp Procedure Unsnap the flood lamp assembly from instrument panel retainer. |
