Headlamp Bulb Replacement - Left Side (Trax Low Beam)

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

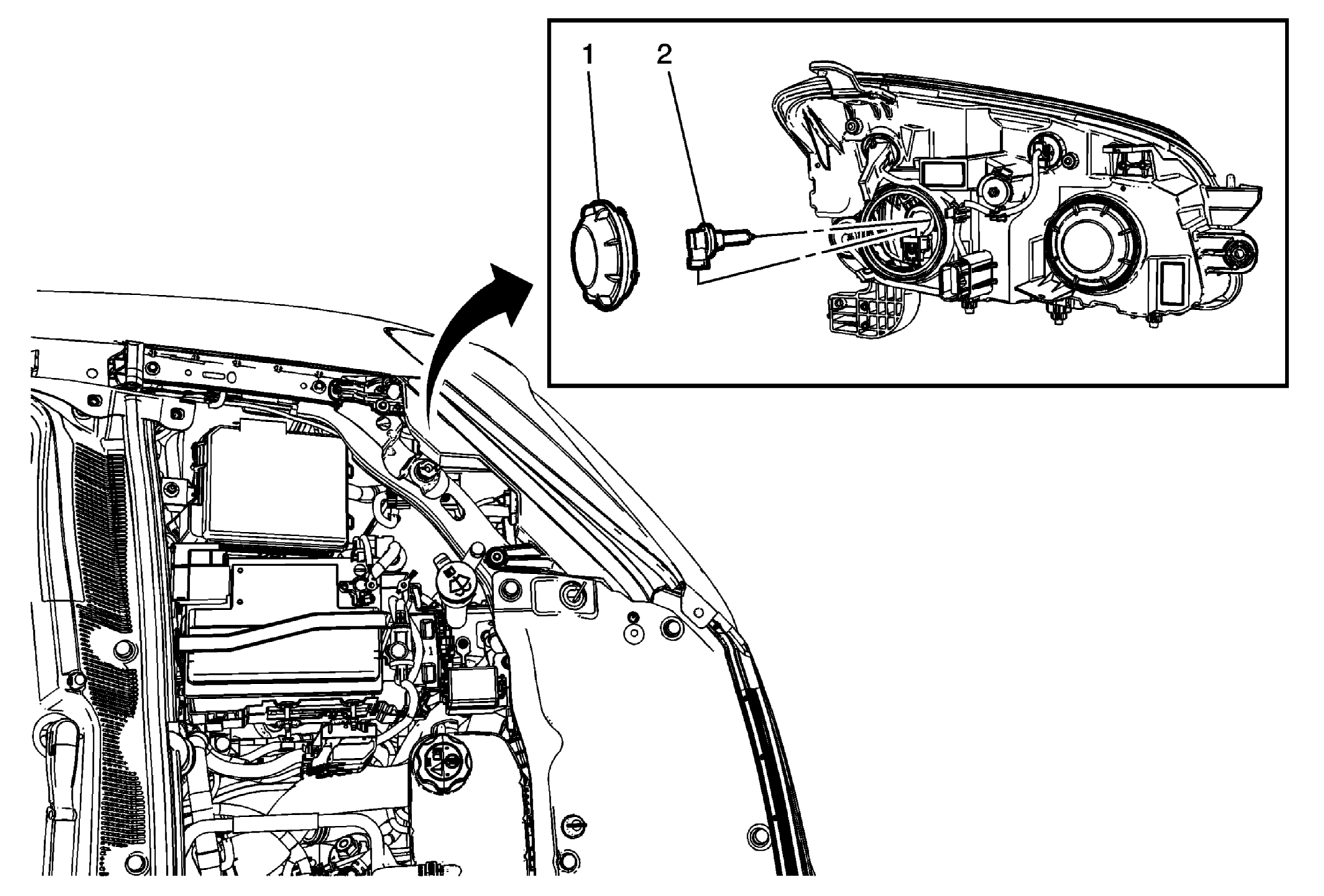

Fig 1: Headlamp Bulb - Left Side (Low Beam) (Trax)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Open and support the hood
1	Headlamp Bulb Access Cover Procedure Rotate the cover counter-clockwise and remove.
2	Headlamp Bulb (Low Beam) WARNING: Refer to Halogen Bulb Warning . Procedure Disconnect the electrical connector prior to removing the headlamp bulb from the headlamp assembly. Rotate bulb assembly counter clock wise and remove the bulb from the headlamp assembly.

Callout

Component Name

Preliminary Procedure
Open and support the hood

Headlamp Bulb Access Cover
Procedure
Rotate the cover counter-clockwise and remove.

Headlamp Bulb (Low Beam)

WARNING:

Refer to Halogen Bulb Warning .

Procedure

Disconnect the electrical connector prior to removing the headlamp bulb from the headlamp assembly.
Rotate bulb assembly counter clock wise and remove the bulb from the headlamp assembly.
