Headlamp Bulb Replacement - Left Side (Trax High Beam)

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

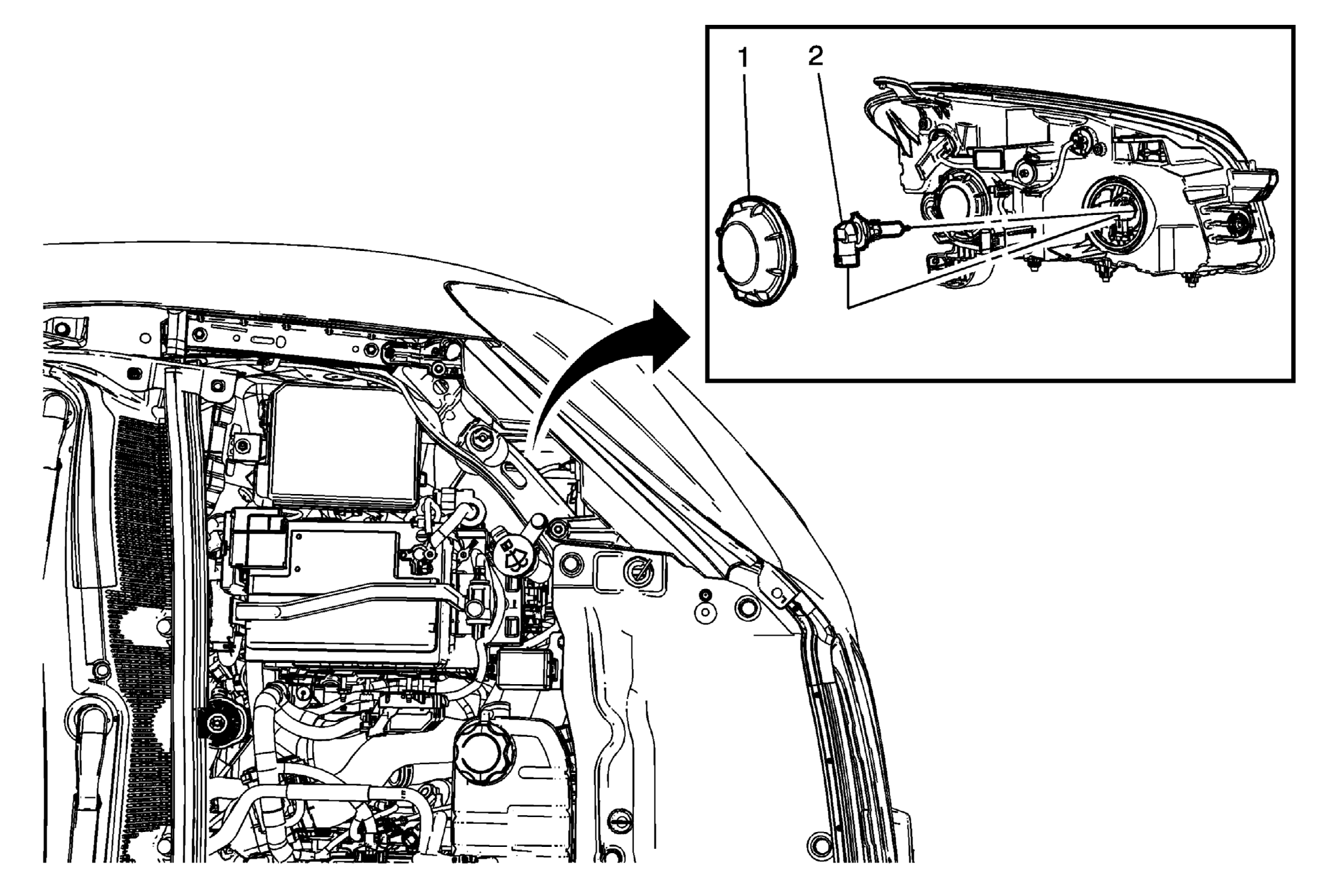

Fig 1: Headlamp Bulb - Left Side (High Beam) (Trax)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Open and support the hood assembly.
1	Headlamp Bulb Access Cover Procedure Rotate the cover counter clockwise to remove.
2	Headlamp Bulb (High Beam) WARNING: Refer to Halogen Bulb Warning . Procedure Disconnect the electrical connector from the bulb socket. Rotate the bulb socket and remove from the headlamp housing.

Callout

Component Name

Preliminary Procedure
Open and support the hood assembly.

Headlamp Bulb Access Cover
Procedure
Rotate the cover counter clockwise to remove.

Headlamp Bulb (High Beam)

WARNING:

Refer to Halogen Bulb Warning .

Procedure

Disconnect the electrical connector from the bulb socket.
Rotate the bulb socket and remove from the headlamp housing.
