Front Turn Signal Lamp Bulb Replacement (Right Hand)

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

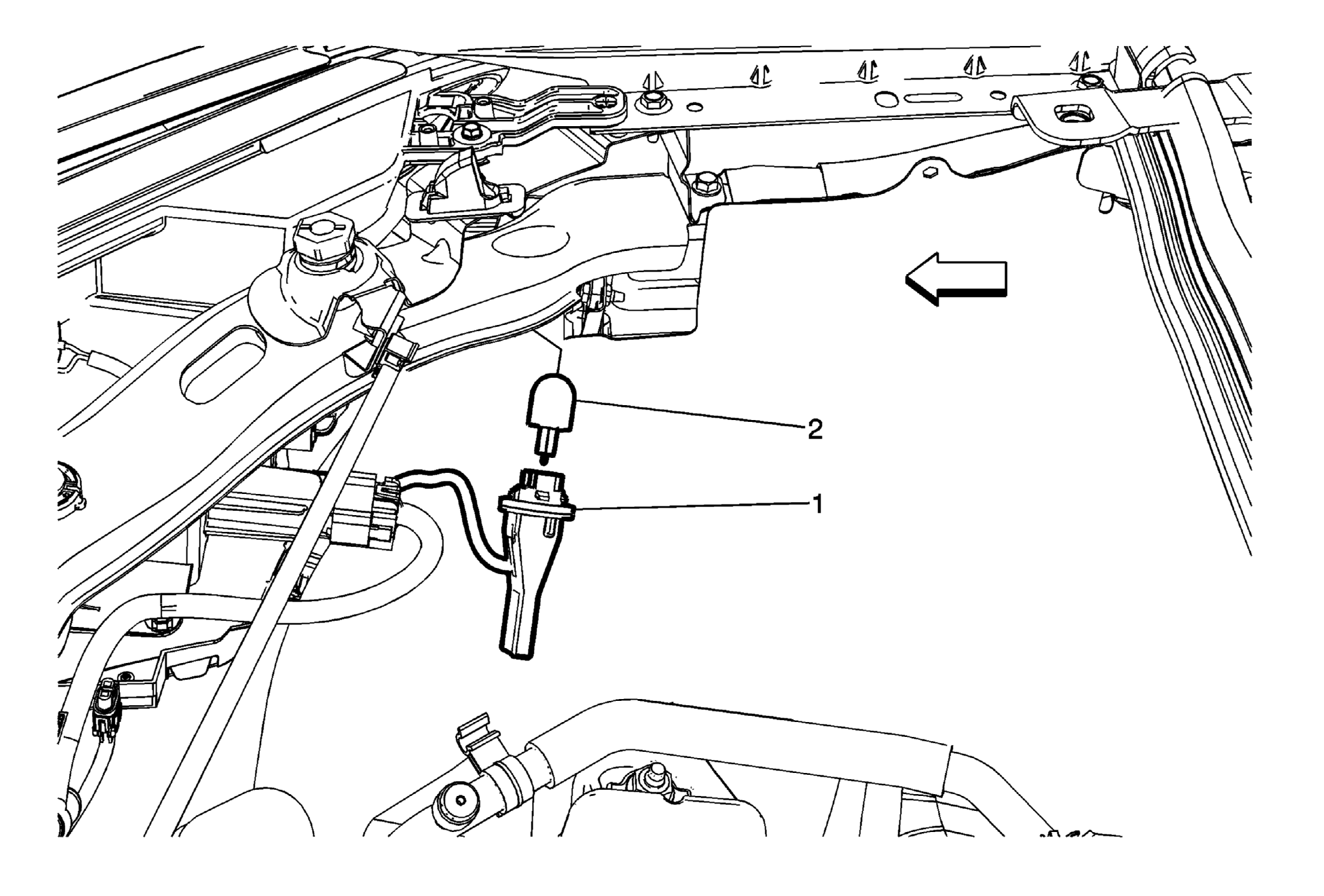

Fig 1: Front Turn Signal Lamp Bulb (Right Hand)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Open and support the hood assembly. Remove the air cleaner inlet duct. Refer to Air Cleaner Inlet Duct Replacement
1	Front Turn Signal Lamp Bulb Socket Procedure Rotate the front turn signal lamp bulb socket counter-clockwise and remove from the headlamp housing.
2	Front Turn Signal Lamp Bulb Procedure Hold the front turn signal lamp socket, pull the front turn signal lamp bulb out of the front turn signal lamp socket.

Callout

Component Name

Preliminary Procedures

Open and support the hood assembly.
Remove the air cleaner inlet duct. Refer to Air Cleaner Inlet Duct Replacement

Front Turn Signal Lamp Bulb Socket
Procedure
Rotate the front turn signal lamp bulb socket counter-clockwise and remove from the headlamp housing.

Front Turn Signal Lamp Bulb
Procedure
Hold the front turn signal lamp socket, pull the front turn signal lamp bulb out of the front turn signal lamp socket.
